Back Side - CNC-Step T-Rex Series Quick Start Manual

2.2

Back side

1

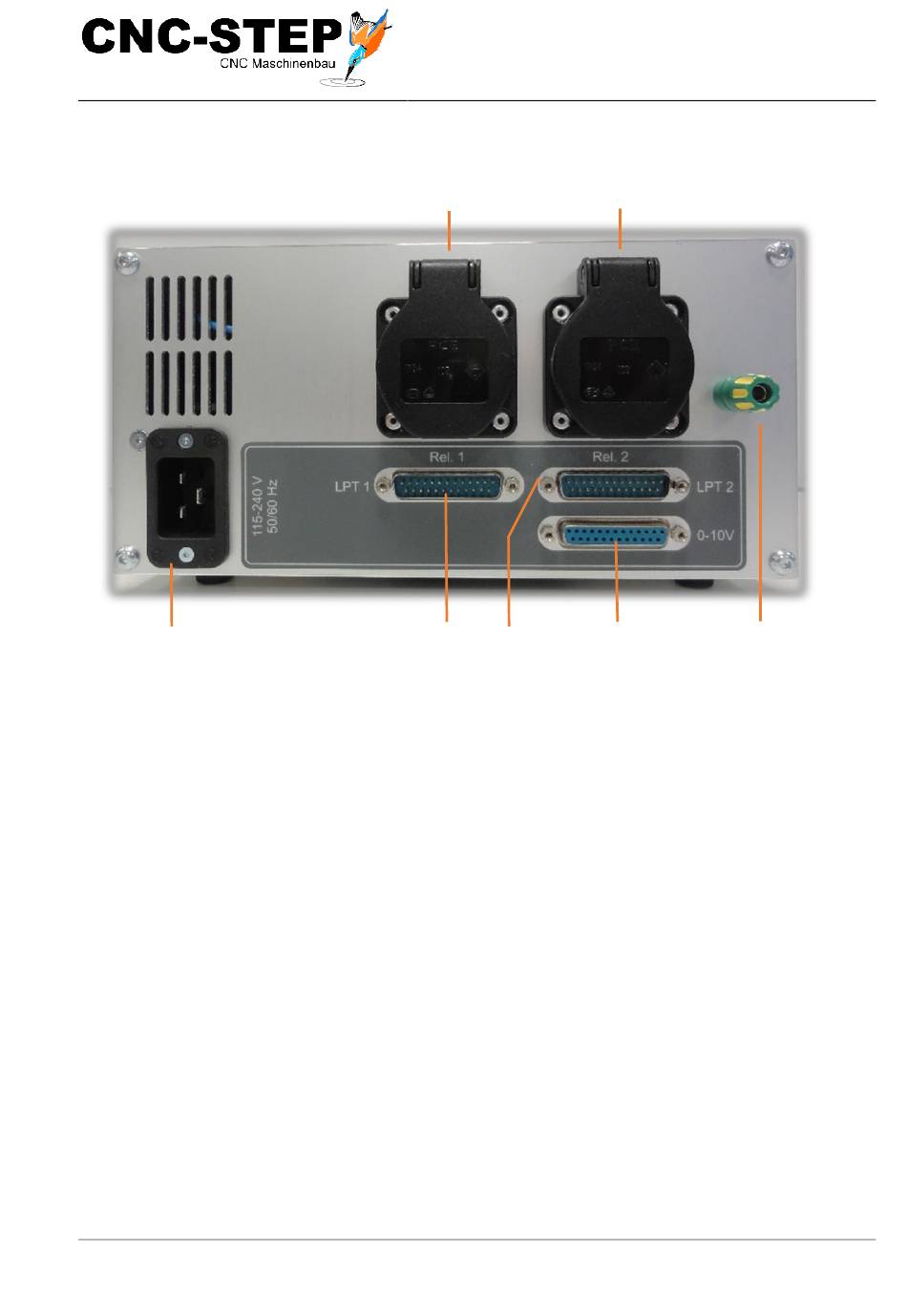

Overview back side
1 power supply (115-240V input voltage)
2 LPT1 input
3 LPT2 input
4 LPT2 output (0-10Volt Edition)
5 Socket 1 (115-240V depending on input voltage - switchable via relay 1)
6 Socket 2 (115-240V depending on input voltage - switched via relay 2)
7
Ground (* only High-Z series > 03/2015)
Note on the sockets 1 + 2:
The two sockets are with two relays switchable. Thus, the consumer connected to it can be switched
on and off via software.
This guarantees also that the power supply is interrupted at faults and in emergency case.
The maximum power consumption per outlet may not exceed 8A.
The current consumption of the two sockets together may not exceed 13.5A.
CNC-STEP e.K. ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
5
2 3 4
Quick Start Guide
T-Rex Series
6
Zero-3 Back Side
7*
15.01.2015
Page 10
