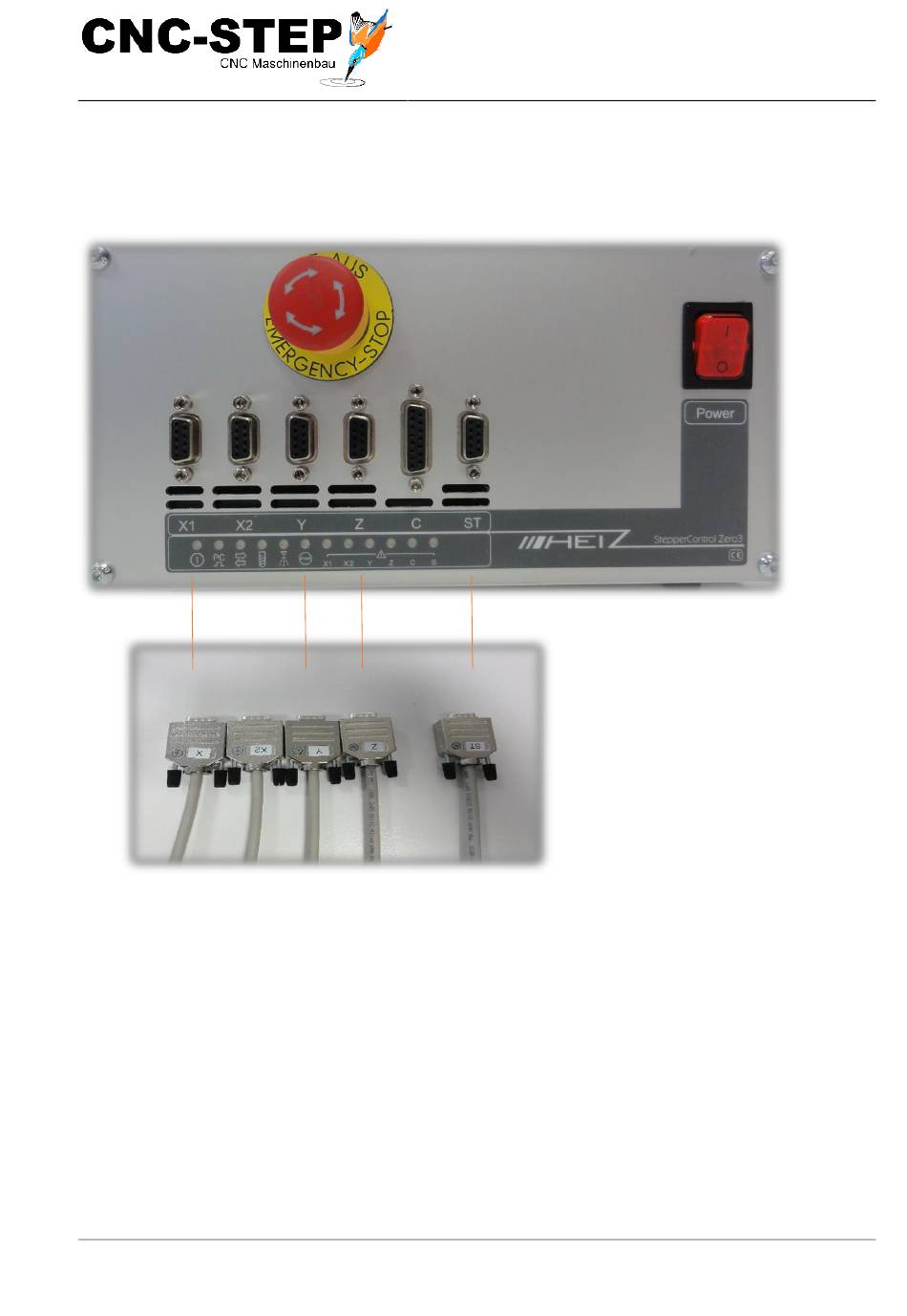

Connecting the machine to the Zero-3 control
3
Connection cable of the machine
- Make sure that the control is turned off.
- Connect all 5 cables with the Zero-3 controller.
- Make sure that you back up all connections with the knurled screws from loosening.
CNC-STEP e.K. ▪ Siemensstrasse 13-15 ▪ 47608 Geldern ▪ Germany
Support: +49 (0)2831/91021-50
Quick Start Guide
T-Rex Series
Zero-3 Front Side
Page 11
15.01.2015
