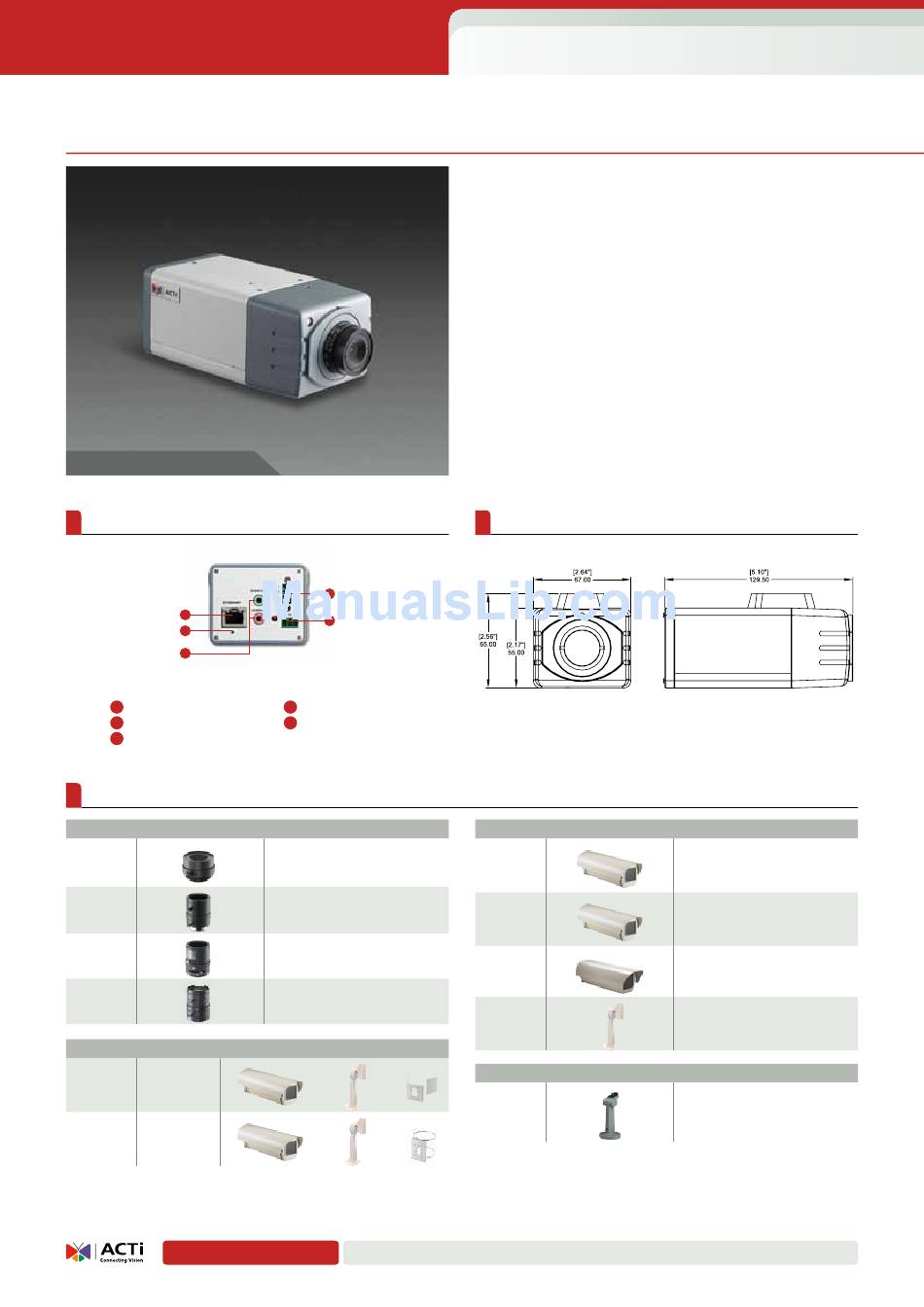

ACTi ACM-5611 Specifications

B ox C am e ra
ACM-5601/ACM-5611
* One fixed lens is included.
PHOTO INDICATION
1
2
3
1 Ethernet Port
2 Reset Button
3 Audio Input / Output
ACCESSORY OPTIONS
Lens
PLEN-0102
PLEN-0107
PLEN-0201
PLEN-0202
Popular Mounting Solutions
Corner PMAX-0200/
PMAX-0201
PMAX-1101
PMAX-0402
Pole PMAX-0200/
PMAX-0201
PMAX-1101
PMAX-0502
* For more mounting solutions, please refer to Mounting Accessory section of Buyer's
Guide or Project Planner on www.acti.com
w w w . a c t i . c o m
4
5
4 Digital Input / Output
5 DC 12V Power Input
IR Compatible, Fixed Iris, F1.8, 8 mm,
33.3° (For ACM-5601 only)
Manual Iris, F1.4, 3.5 mm - 8 mm, 70° -
31.6° (For ACM-5601 only)
Manual Iris, F1.2, 2.4 mm - 6 mm, 101.3° -
45.6° (For ACM-5601 only)
IR Compatible, Manual Iris,
F1.6, 2.8 mm - 12 mm, 91.1° - 22.9°
+ +
+ +
* Latest product information: www.acti.com/product/
* Accessory information: www.acti.com/accessory/
• 1/3" Aptina Progressive Scan CMOS
• Day and night function with mechanical IR cut filter
(ACM-5611)
• Minimum illumination 0.5 lux at F1.0 (ACM-5601) /
0.05 lux at F1.0 (ACM-5611)
• Built-in f4.2 mm / F1.8 Megapixel fixed lens
• 8 fps at 1280 x 1024 resolution
• Selectable MPEG-4 SP, MJPEG compressions
• Two-way audio
• Video motion detection
• Digital input and digital output
• Powered by PoE Class 3 / DC 12V

DIMENSION DIAGRAM

Outdoor Housing & Bracket
PMAX-0200
PMAX-0201
PMAX-0202
PMAX-1101
Camera Bracket
PMAX-1100
Megapixel IP PoE Box
Camera / Megapixel IP
D/N PoE Box Camera
Unit: mm [inch]
IP66, with heater and fan powered by
110V AC,
-30 °C ~ 50 °C (-22 °F ~ 122 °F), requires
housing bracket
IP66, with heater and fan powered by
220V AC,
-30 °C ~ 50 °C (-22 °F ~ 122 °F), requires
housing bracket
IP66, 0 °C ~ 50°C (32 °F ~ 122 °F),
requires housing bracket
Aluminum, max. load 10 kg (22.05 lb), tilt
angle 90°
(For PMAX-0200, PMAX-0201, PMAX-
0202)
Plastic, max. load 3.5 kg (7.72 lb), tilt
angle 90°
110205
