ACTi ACM-4201 Specifications

C ub e C am e ra

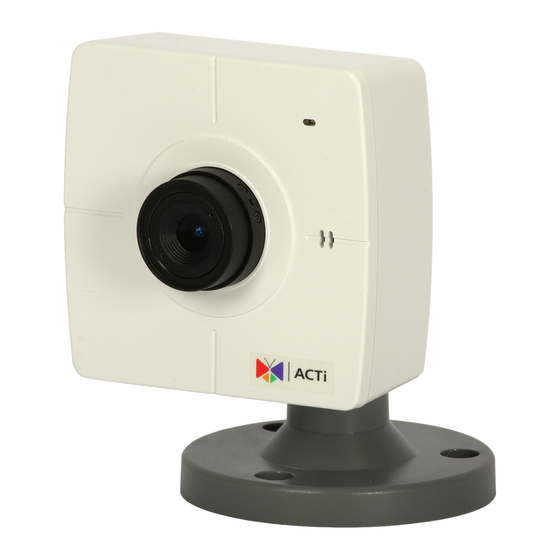

ACM-4201
* The bracket is included.
PHOTO INDICATION
3
1 Power LED
2 Built-in Microphone
3 PIR Sensor
ACCESSORY OPTIONS
Lens
PLEN-0201
PLEN-0202
w w w . a c t i . c o m
1
2
8
4 5 6 7
4 Audio Output
5 Ethernet Port
6 DC 12V Power Input
7 Digital Input / Output
8 Reset Button
Manual Iris, F1.2, 2.4 mm - 6 mm, 113.4° - 46°
IR Compatible, Manual Iris, F1.6, 2.8 mm - 12 mm, 94° - 25.5°
* Latest product information: www.acti.com/product/
* Accessory information: www.acti.com/accessory/
• 1/3" Aptina Progressive Scan CMOS
• Minimum illumination 0.5 Lux at F1.0
• Bundled with f4.2 mm / F1.8 Megapixel fi xed lens
• 8 fps at 1280 x 1024 resolution
• Selectable MPEG-4 SP, MJPEG compressions
• Two-way audio
• Video motion detection
• Digital input and digital output
• Built-in passive IR sensor
• Powered by PoE Class 3 / DC 12V

DIMENSION DIAGRAM

Megapixel IP PoE
Cube Camera with PIR
Unit: mm [inch]
110809
