Summary of Contents for Polypipe UFHPROGW
- Page 1 UFHPROGW...
-

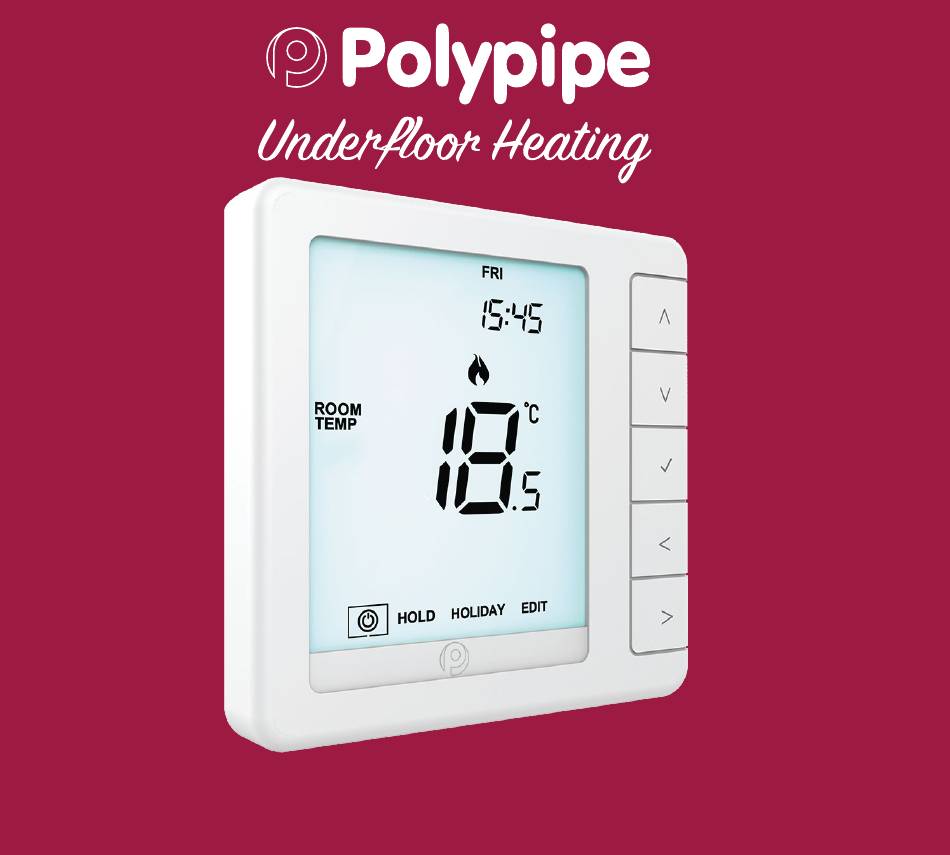

Page 2: Product Image
Model: UFHPROGW... -
Page 3: Table Of Contents
Timer Override Temperature Display Optional Settings Explained Edit Comfort Levels 14-15 Optional Settings - Feature Table Temperature Control Adjusting the Optional Settings Temperature Hold Frost Protection Locking/Unlocking the thermostat Holiday Optional Settings Explained 21-22 Optional Settings - Feature Table Model: UFHPROGW... -
Page 4: What Is A Programmable
What is a Programmable Room Thermostat? A programmable room thermostat is both a programmer and a room thermostat. A programmer allows you to set “On” and “O ” periods to suit your own lifestyle. A room thermostat works by sensing the air temperature, switching on the heating when the air temperature falls below the thermostat setting, and switching it o once this set temperature has been reached. - Page 5 Programmable room thermostats need a free ow of air to sense the temperature, so they must not be covered by curtains or blocked by furniture. Nearby electric res, televisions, wall or table lamps may also prevent the thermostat from working properly. Model: UFHPROGW...
-
Page 6: Installation Procedure
Installation Procedure Mount the thermostat at eye level. Read the instructions fully so you get the best from our product. Don’t Do not install near to a direct heat source as this will a ect functionality. Do not push hard on the LCD screen as this may cause irreparable damage. This thermostat is designed to be ush mounted and requires a back box of35mm (minimum depth) to be sunk into the wall prior to installation. - Page 7 Model: UFHPROGW...
-
Page 8: Mode Select
Mode Select UFHPROGW can either be used as a thermostat or a time clock. Thermostat mode is the default setting. To change between thermostat & time clock modes, follow these steps. then press and hold • Use the ‘Left/Right’ arrow keys to highlight the button for 3 seconds .................. -
Page 9: Mode 1 - Thermostat
Mode 1 - Thermostat Mode 1 - Thermostat Section Header Model: UFHPROGW... -
Page 10: Lcd Display
LCD Display... - Page 11 12. Temperature Format - Degrees Celsius or Fahrenheit. 13. Floor Limit Symbol – Displayed when the oor probe has reached the oor temperature limit con gured in the setup menu. 14. Time/Day/Month/Year - Displays when setting the Clock/Calender or a Holiday Period. Model: UFHPROGW...
-
Page 12: Power On/Off
Power On/O The heating is indicated ON when the ame icon is displayed. When the Flame Icon is absent, there is no requirement for heating to achieve the set temperature but the thermostat remains active. To turn the thermostat o completely, scroll to the Power Icon and hold the key for approximately 3 seconds until the display goes blank ...... -
Page 13: Setting The Time & Date
‘Minutes’ ........Repeat the previous two steps to set the date (‘Day, Month & Year’). Display will go blank once completed. • Press the ‘Down’ arrow key followed by to return to the main display ....... Model: UFHPROGW... -
Page 14: Temperature Display
The display will clearly indicate which sensor is being used by showing either ‘ROOM TEMP’ or ‘FLOOR TEMP’ to the left the actual value. Room Temperature Floor Temperature UFHPROGW When the is set to use both the air & the oor sensor, the room temperature will be displayed by default. -
Page 15: Edit Comfort Levels
07:00 - 21°C Wake (1) 09:00 - 16°C Leave (2) 16:00 - 21°C Return (3) 22:00 - 16°C Sleep (4) Unused levels must be set to --:-- so that the UFHPROGW will skip these and continue on to the next programmed time. - Page 16 • Use the ‘Up/Down’ keys to set the ‘Hours’ ..................• Press to con rm ............................• Use the ‘Up/Down’ keys to set the ‘Minutes’ ................. • Press to con rm ............................• Use the ‘Up/Down’ keys to set the temperature ................. •...
-
Page 17: Temperature Control
Press to con rm settings and return to the main display ..........Until next programmed ‘Comfort Level’ time. Set Temperature Note: This new temperature is maintained only until the next programmed comfort level. At this time, the thermostat will revert back to the programmed levels. Model: UFHPROGW... -
Page 18: Temperature Hold
Temperature Hold The temperature hold function allows you to manually override the current operating program and set a di erent temperature for a desired period. • Use the ‘Left/Right’ keys to scroll to ‘Hold’ and press ..........• Repeatedly tap the ‘Up/Down’ keys to set the desired ‘Hold’ time (Hours) then press ........................ -
Page 19: Frost Protection
‘ON’ whilst in frost mode, the ame symbol will be displayed. To cancel the frost protect mode, navigate to the ‘Power Icon’ again, then press ..To cancel the frost protect mode, navigate to the ‘Power icon’ again and press ....Frost Protection Symbol Model: UFHPROGW... -
Page 20: Locking/Unlocking The Thermostat
Locking the Thermostat UFHPROGW has a keypad lock facility. To activate the lock follow these steps. • Use the ‘Left/Right’ keys to scroll to Hold & press for 7 seconds ......The display will show 0000. At this point enter a four digit pin number. -
Page 21: Holiday
• Repeat these steps to set ‘Day’ , ‘Month’ & ‘Year’ ............The display will now show and indicate ‘Frost Protection Active’ To view or change the ‘Set’ frost temperature while in ‘Holiday’ mode, press the ‘Up/Down’ keys followed by to con rm ..........Model: UFHPROGW... -
Page 22: Optional Settings Explained
Optional Settings Explained THE FOLLOWING SETTINGS ARE OPTIONAL AND IN MOST CASES NEED NOT BE ADJUSTED. Temperature Format: This function allows you to select between °C and °F. Switching Di erential: This function allows you to increase the switching di erential of the thermostat. - Page 23 Daylight Saving Time (DST): is where the thermostat sets the clocks forward one hour from ‘Standard Time’ during the summer months, and back again in autumn, in order to make better use of natural daylight. Program Type: You can select between 4 or 6 program/comfort levels. Model: UFHPROGW...
-
Page 24: Optional Settings - Feature Table
Optional Settings - Feature Table FEATURE DESCRIPTION SETTING Temperature Format 00 = °C, 01 = °F (00 = Default) Switching Di erential 00 = 0.5°C, 01 = 1.0°C (Default) 02 = 2.0°C, 03 = 3.0°C Output Delay 00 - 15 Minutes (00 = Default) Up/Down Temperature Limit 00°... -
Page 25: Adjusting The Optional Settings
................... and return to the blank display ..................• Use the ‘Down’ key to select then press once to power on ....once to power on ....• D ‘ k ’ Model: UFHPROGW... -
Page 26: Recalibrating The Thermostat
Re-calibrating the UFHPROGW This thermostat is factory set and need not re-calibrating under normal operation! To calibrate, follow the step below. • Use the ‘Left/Right’ keys to scroll to the Power Icon ........• Press and hold to turn the display ‘OFF’ ............ -
Page 27: Wiring Diagram
Wiring Diagram - UFHPROGW Volt Free Output Model: UFHPROGW Not Used 230VAC Floor Sensor A1 N TO CONNECT BOILER CONSULT BOILER MANUFACTURERS DIAGRAM 230 VSUPPLY IN VOLT FREE TO BOILER LIVE LS & LR ARE NORMALLY THE ROOM THERMOSTAT CONNECTIONS... - Page 28 Wiring Diagram - UFHPROGW Section Header Switch Live to Valve Model: UFHPROGW Not Used 230VAC Floor Sensor A1 N TO CONNECT BOILER CONSULT BOILER MANUFACTURERS DIAGRAM LS & LR ARE NORMALLY THE ROOM THERMOSTAT CONNECTIONS LIVE TO BOILER 230 VSUPPLY IN...
- Page 29 Wiring Diagram - UFHPROGW Section Header Switch Live to UH8 UFHPROGW Model: Not Used 230VAC Floor Sensor A2 A1 N FLOOR PROBE E N SL This product must only be installed by a quali ed electrician and comply with local installation regulations.
-
Page 30: Mode 2 - Time Clock
Mode 2 - Time Clock... - Page 31 30 28 Model: UFHPROGW Model: HM-01-16A...
-
Page 32: Lcd Display
LCD Display 1. Day Indicator - Displays the day of the week. 2. Clock - Time displayed in 24 hour format. 3. Until & Hold Left - ‘Until’ displayed during a timer override. ‘Hold Left’ appears when a hold is active, plus the remaining time will be shown. 4. -
Page 33: Setting The Switching Times
• To blank or set a switching level period to unused, rst select the switching level then set --:-- in place of the time. • When all switching times have been programmed use the ‘Right’ arrow key to select ‘DONE’ and press ................Model: UFHPROGW... -
Page 34: Timer Override
Timer Override To override the timed output ‘ON/OFF’ , follow these steps......... • Use the ‘Left/Right’ keys to highlight ‘HOLD’ then press ........• Use the ‘Up/Down’ keys to set the hours then press ........• Use the ‘Up/Down’ keys to set the minutes then press •... -
Page 35: Optional Settings Explained
Optional Settings - Feature Table FEATURE DESCRIPTION SETTING Program Mode 00 = 5/2 (Default), 01 = 7 Day, 02 = 24 Hour 03 = Manual Countdown Timer Daylight Saving Time (DST) 00 = Disabled (Default) 01 = Enabled Model: UFHPROGW... -
Page 36: Adjusting The Optional Settings
Adjusting the Optional Settings Use the ‘Left/Right’ arrow keys to highlight then press and hold the button for 3 seconds ....................The display will go blank showing only ‘Setup’ and ‘Clock’ • Press the ‘Up’ key followed by twice to access main feature menu ..Feature No. - Page 37 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................Model: UFHPROGW...
- Page 38 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 39 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................Model: UFHPROGW...
- Page 40 Want More Information? Call our telephone support team on: 01709 772200 Or view technical speci cations directly on our website: www.polypipeufh.com Polypipe Building Products Broomhouse Lane Edlington Doncaster DN12 1ES Rev 1.0...
Need help?
Do you have a question about the UFHPROGW and is the answer not in the manual?
Questions and answers
One of my wall thermostats is stuck. Won't edit. Has hand with finger pointing up
The Polypipe UFHPROGW thermostat may be locked if it shows a hand with a finger pointing up. To fix this, try the following steps:
1. Press and hold the Left/Right keys to navigate to the Power Icon.
2. Press and hold the button to turn the display OFF.
3. Press and hold the Down key together with the other relevant key for 10 seconds.
4. The current temperature should appear on the display.
5. If editable, use the Up/Down keys to adjust the settings.
6. Press the confirm button to save changes, and the display should go blank.
If the thermostat remains unresponsive, check the installation and wiring, ensuring it complies with the provided wiring diagrams.
