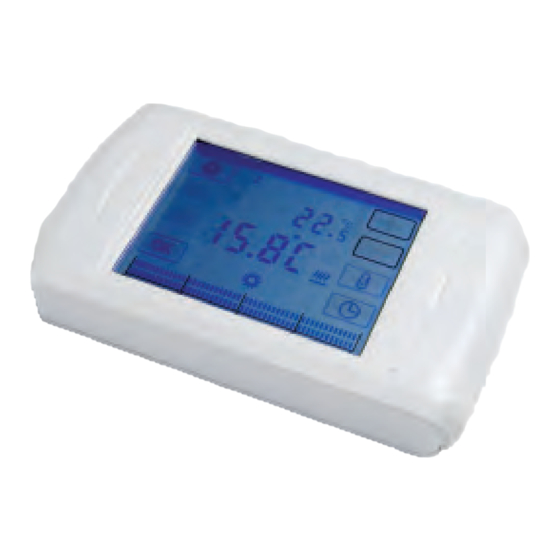

- Page 1 PRTIUM1 NOVEMBER 2009 EFFECTIVE: 1ST NOVEMBER 2009 Touch Screen Programmable Room Thermostat Installation and User Manual...
-
Page 2: Safety Instruction
Safety Instruction Step 4: Cover the relay case and screw it properly with screwdriver Installation and mounting of electrical appliances must be carried out only by skilled electricians. It is imperative to observe the generally applicable safety measures, such as: Before starting work on the appliance, switch off power supply and secure against switching on. - Page 3 Wiring details for single zone master unit (PB1ZM) Wiring details for 4 zone and 6 zone slave (PB4ZS and PB6ZS)
-
Page 5: Time Setting
Daily Programme a) Press and hold key for 3 seconds to flash the day (1-7) b) Press + or – key to set the day which you want to programme Time Setting c) After setting the day/days, press key to flash time 0:00 a) Press the key to flash the following in order: and the corresponding bar dot for programme is flashing... -
Page 6: Alarm Setting
Manual Override Function Alarm Setting During the automatic mode you can have the a) Press and hold key for 3 seconds to display AL override function b) Then press key once to display on the top left. Temporary override (Party) Press + or –... -
Page 7: Technical Data
Technical Data Dimension H x L x W (mm) 87 x 135 x 32 Operating voltage 2 batteries 1.5v LR6/AA Temperature control range +5°C / +35°C Temperature display range +5°C / +37°C Switching capacity (changeover contact) at ohmic loads max 6a 240v 50hz at inductive loads cos w = 0.6 max 2a 240v 50hz Switching output... -
Page 8: Room Thermostat
Touch Screen Programmable Room Thermostat Polypipe Building Products Broomhouse Lane Edlington Doncaster DN12 1ES Tel: 01709 770 000 Fax: 01709 770 001 www.ufch.com 2410 London Road Mount Vernon Glasgow G32 8XZ Tel: 0141 778 8822 Fax: 0141 778 2703 Dromore Road Lurgan, Craigavon Co.
