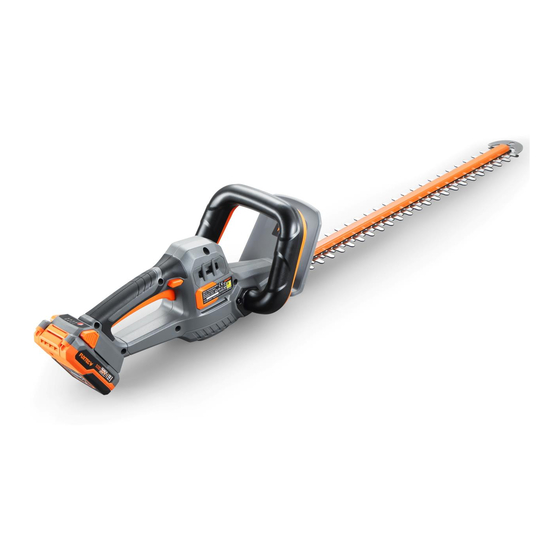

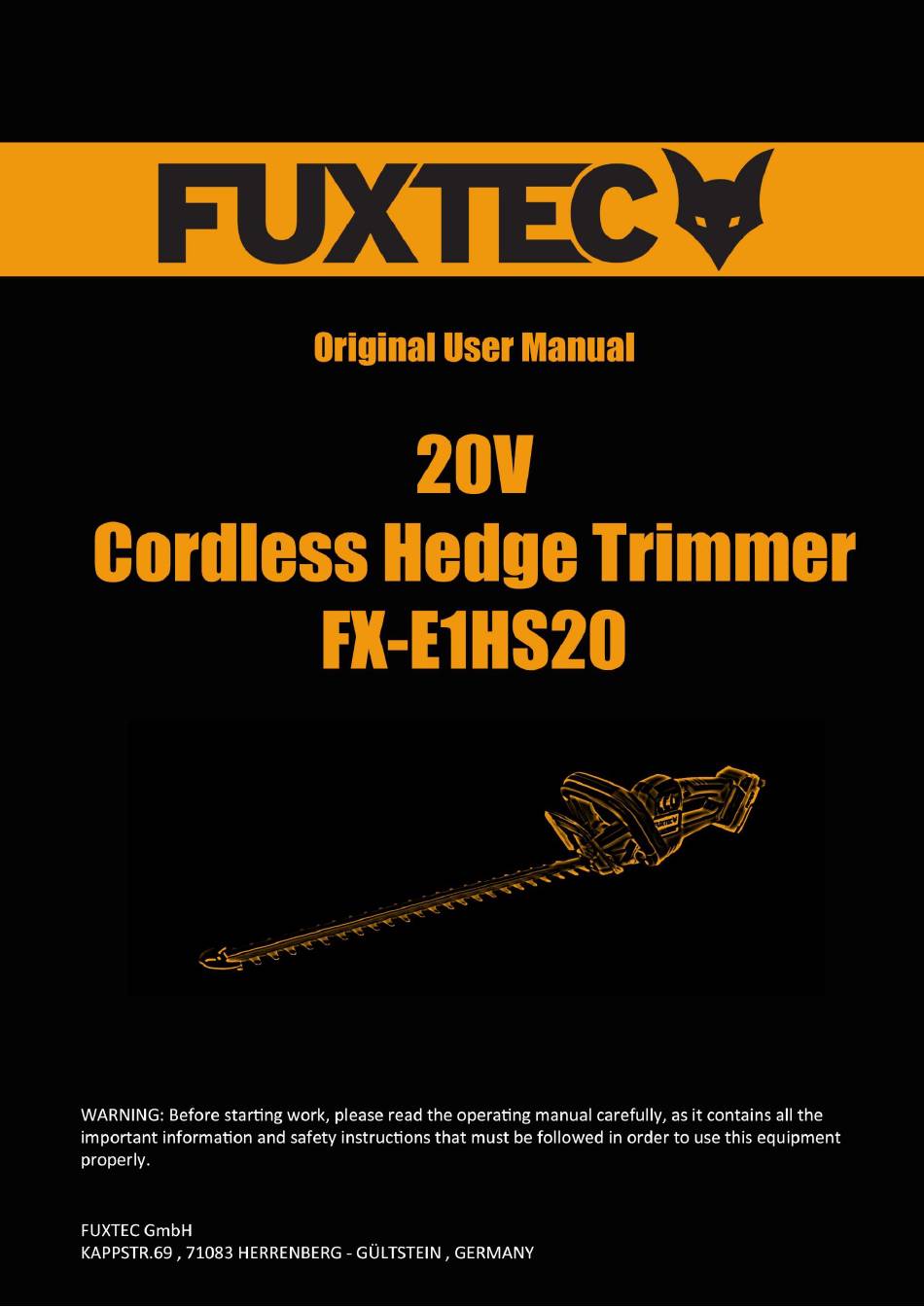

- Page 1 Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20...
-
Page 2: Table Of Contents
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 Contents Introduction and safety ........................... 3 Intended use ............................3 General safety information for power tools ..................3 Workplace safety ..........................3 Electrical safety ........................... 3 Personal safety ............................ 4 Use and handling of the power tool ....................4 Use and handling of the cordless tool .................... -
Page 3: Introduction And Safety
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 Introduction and safety Never allow children or persons not familiar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the device. -
Page 4: Personal Safety
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 - Keep power tools away from rain or wet conditions. Water entering a power tool increases the risk of electric shock. - Do not use the cord to carry or hang the power tool or to unplug the power tool from the wall outlet. -
Page 5: Use And Handling Of The Cordless Tool
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 - Keep unused power tools out of the reach of children. Do not have the device to be used by persons who are not familiar with it or have not read these instructions. Power tools are dangerous if they are used by inexperienced persons. -
Page 6: Before Use
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 - Operate the device only in the condition specified and supplied by the manufacturer. technical condition. Unauthorized modifications to the device rule out any liability of the manufacturer for any resulting damage. - Page 7 Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 - Do not use the hedge trimmer in explosive environments containing flammable liquids, gases or dust. The hedge trimmer may produce sparks that can ignite the dust or vapours. - Exercise special care when walking backwards. There is a danger of tripping! - Move at a walking pace only.
-
Page 8: After Use
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 - Spare parts must meet the requirements specified by the manufacturer. Therefore, only original spare parts or spare parts approved by the manufacturer should be used. Please observe the installation instructions supplied with the unit when replacing it and remove the battery beforehand. -
Page 9: Safety Information For Li-Ion Batteries
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 Safety information for Li-Ion batteries - Do not open the battery. There is a risk of short circuit. - Protect the battery from heat, including continuous exposure to sunlight, fire, water and moisture. -
Page 10: Presentation
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 Presentation Figure 1: Hedge trimmer 1. Cutting tool 2. Protective shield 3. Safety lever on the front handle 4. Front handle 5. Safety button on the rear handle 6. On/off switch... - Page 11 Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 Figure 2: For start-up 1. Safety button on the rear handle 2. On/off switch on the rear handle 3. Safety lever on the front handle...
-
Page 12: Switching The Device On/Off
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 Switching the device on/off Insert the battery into the slot provided. Then push the safety button (Figure 2, item 1) in at the side, only then you can operate the on/off switch (Figure 2, item 2). Then press and hold the safety lever on the front handle (Figure 2, item 3). -
Page 13: Maintenance And Care
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 - Cut in several stages if heavy cutting is required. - If necessary, tension a guide line if you want to trim the hedge evenly. - Trim the young hedge plants to the desired shape. The main shoot should not be damaged until the hedge has reached the desired height. -
Page 14: Disposal
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 Disposal WARNING! Make used power tools unusable before disposal: • mains-operated power tools by removing the connecting plug, • battery operated power tools by removing the battery. For EU countries only... -
Page 15: Technical Data
Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20 Technical data Cordless hedge trimmer Cutting length 520mm Cutting speed 1250 min−1 Max. branch thickness 15mm Guaranteed sound power level 91 (LwA) db Measured sound power level 84 (LpA) db Vibration 0.9 m/s²... -
Page 16: Declaration Of Conformity
EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void. Retention of technical documentation: FUXTEC GmbH ● Kappstraße 69 ● 71083 Herrenberg ● Germany, T. Gumprecht, Board of Management Herrenberg, 07.01.2019... - Page 17 Original User Manual FUXTEC 20V Cordless Hedge Trimmer FX-E1HS20...
