- Page 1 Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20...
-
Page 2: Table Of Contents
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Content Introduction and safety ........................... 3 Intended use ............................3 General safety instructions for power tools..................3 Workplace Safety ..........................3 Electrical Safety ........................... 4 Safety of Persons ..........................4 Use and treatment of the power tool ....................5 Use and handling of the cordless tool .................... -
Page 3: Introduction And Safety
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Introduction and safety Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance. -
Page 4: Electrical Safety
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Electrical Safety - The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets reduce the risk of electric shock. -
Page 5: Use And Treatment Of The Power Tool
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 - Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught by moving parts. -
Page 6: Safety Instructions For The Grass Trimmer
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 - The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns. -
Page 7: During Operation
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 - Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified specialist or workshop. - To reduce the risk of serious injury, never use wire or metal-reinforced thread as cutting thread. -
Page 8: After Use
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 After use - Turn off the device, remove the battery, and then place the device in a safe place. - Do not store the device within reach of children. - Make sure that the ventilation slots of the device are free of dirt. - Page 9 Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 - The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention.
-
Page 10: Presentation

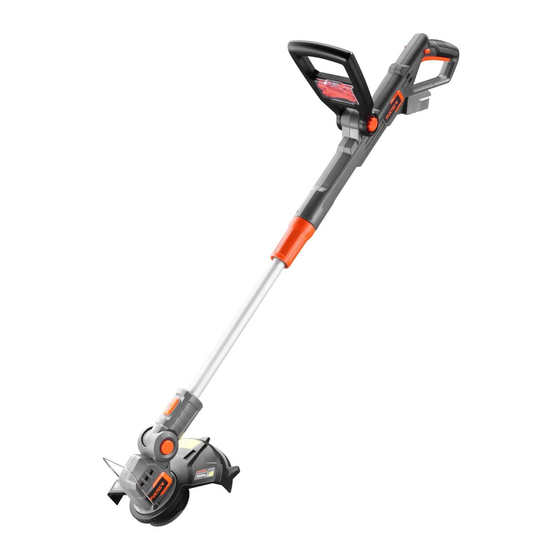

Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Presentation Figure 1: Grasschneider 1. Safety lever 2. On / Off switch 3. Battery (only included in the set) 4. Joint for adjusting the cutting angle 5. Safety Shield 6. Plant hoop guard 7. - Page 11 Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Figure 2: Battery and charger (only included in the set) 12. Indicator light 13. Display for battery level indicator 14. Push button for battery level indicator 15. Snap-in button 16. 0.9Ah Charger...
- Page 12 Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Figure 3: 18. Compartment for spare blades 19. Cutting blade 20. Rotation disc Figure 4: Press the button (7) to adjust the angle according to the intended use (normal trimming or lawn edge...
-
Page 13: Installation Of The Protective Shield And Rotation Disk
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Installation of the protective shield and rotation disk To attach the protective shield to the trimmer, make sure that the holes for the screws are correctly aligned. To do this, place the opening of the label over the head of the battery trimmer and turn it so that the plastic rails snap into each other. -
Page 14: Operating Mode
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Operating mode Free cutting grass The cutting head is guided parallel to the ground. Guide the trimmer in a semicircle in front of the body when cutting free. Edge cutting The edge trimming function enables precise and comfortable trimming along the lawn edge. -
Page 15: Working Instructions
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Working Instructions - Hold the device with both hands by the handles provided. - Hold the device parallel to the floor and make stroking movements from one side to the other. -
Page 16: Technical Data
Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20 Do not throw power tools in household waste! According to the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, used electrical equipment must be collected separately and sent for environmentally sound recycling. Recovery of raw materials instead of waste disposal. -
Page 17: Declaration Of Conformity
Storage of the technical documentation: FUXTEC GmbH ● Kappstraße 69 ● 71083 Herrenberg ● Germany, T. Gumprecht, Management Herrenberg, 7 January 2020... - Page 18 Original User Manual FUXTEC 20V Cordless Grass Trimmer FX-E1RT20...
