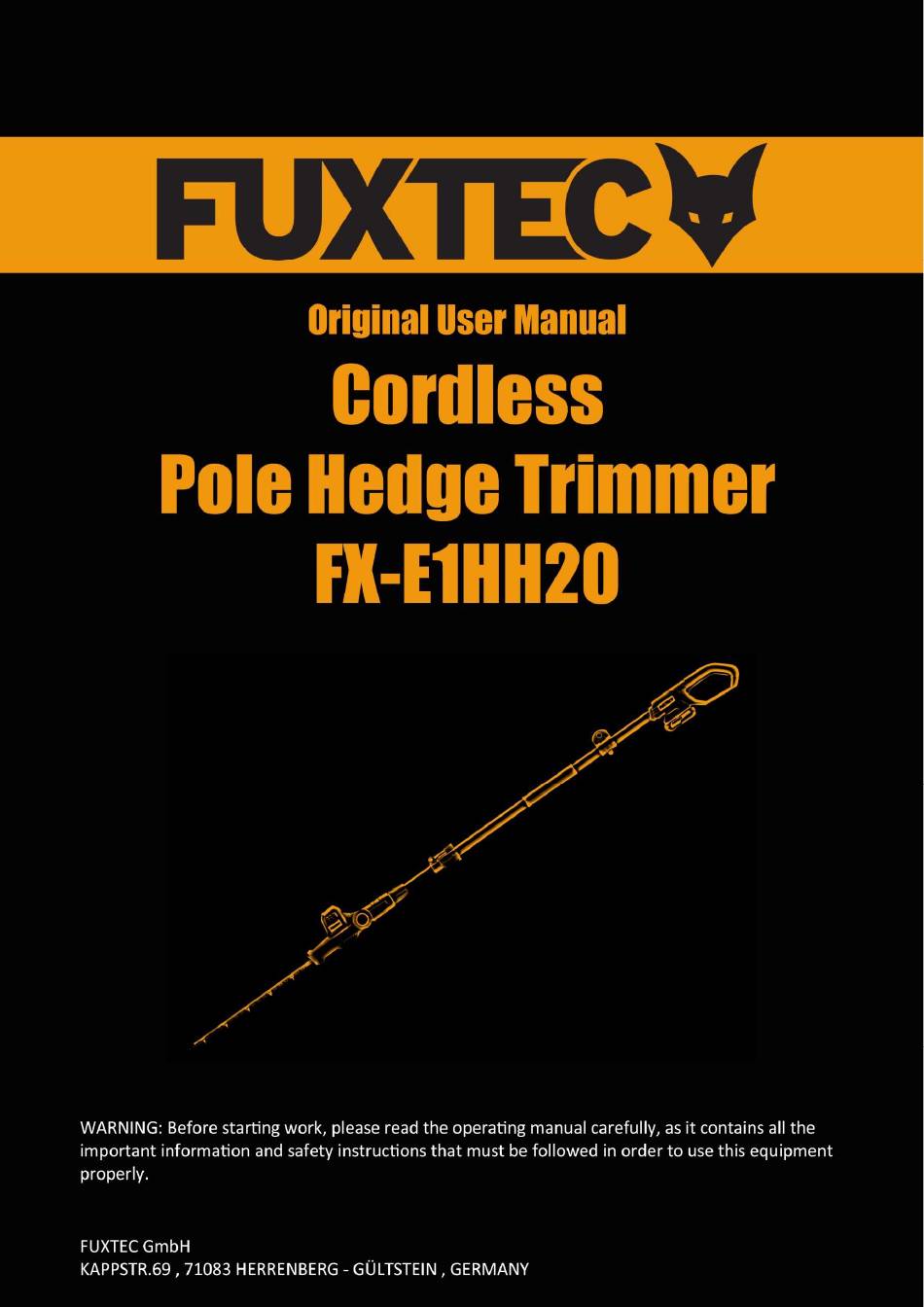

Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX-E1HH20 and is the answer not in the manual?

Questions and answers

Related Manuals for FUXTEC FX-E1HH20

Summary of Contents for FUXTEC FX-E1HH20

  • Page 1 Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20...

  • Page 2: Table Of Contents

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 Content Introduction and safety ........................... 3 Intended use ............................3 General safety instructions for power tools..................3 Workplace Safety ..........................3 Electrical Safety ........................... 4 Safety of Persons ..........................4 Use and treatment of the power tool ....................

  • Page 3: Introduction And Safety

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 Introduction and safety Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance.

  • Page 4: Electrical Safety

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 Electrical Safety - The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets reduce the risk of electric shock.

  • Page 5: Use And Treatment Of The Power Tool

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 - Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught by moving parts.

  • Page 6: Safety Instructions For Hedge Trimmers

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 - The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.

  • Page 7: During Operation

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 - Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified specialist or workshop. - When working with or on the device, always wear sturdy shoes, long trousers, and the appropriate personal protective equipment (safety goggles, hearing protection, non-slip work gloves, etc.).

  • Page 8: After Use

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 - During the cutting process, make sure that no persons (especially children) or animals are in the working area. - Before operating the hedge trimmer, make sure that the working area is free of stones and wires.

  • Page 9: Safety Instructions For The Charger

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 - Have repairs carried out exclusively by a qualified specialist or a specialist workshop. Safety instructions for the charger - Keep the charger away from rain or moisture. The penetration of water into a charger increases the risk of electric shock.

  • Page 10: Presentation

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 - The battery voltage must match the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion. - Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.
  • Page 11 Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 Figure 2: For commissioning 10. Insert the cordless high hedge trimmer in the guide rail provided 11. Carrying strap Figure 3: De-installation of the motor with cutting head from the telescopic...

  • Page 12: Switching The Device On/Off

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 Figure 4: Operating the telescopic extension Switching the device on/off Insert the battery into the rail provided. Then push in the safety button (Figure 1, item 6) on the side, only then you can operate the on/off switch (Figure 1, item 7).
  • Page 13 Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 - First, cut the sides of the hedge and then the top edge. - Cut the hedge from bottom to top. - Hold the hedge trimmer at an angle of 5-10° to the hedge to make a straight cut.

  • Page 14: Maintenance And Care

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 Maintenance and care Caution: before carrying out any work on the power tool, remove the cordless high hedge trimmer from the device. Sharp cutting blades  Wear protective gloves! Do not use water or liquid detergents.

  • Page 15: Technical Data

    Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20 Recycling raw materials instead of waste disposal. Technical Data Cordless high hedge trimmer 7,000 min Working area 250 mm Vibration < 0.9 m/s² (K = 1,5 m/s²) Max. Sound power level...

  • Page 16: Ec Declaration Of Conformity

    Storage of the technical documentation: FUXTEC GmbH ● Kappstraße 69 ● 71083 Herrenberg ● Germany, T. Gumprecht, Management Herrenberg, 7 January 2020...
  • Page 17 Original user manual FUXTEC 20V Cordless Pole Hedge Trimmer FX-E1HH20...
