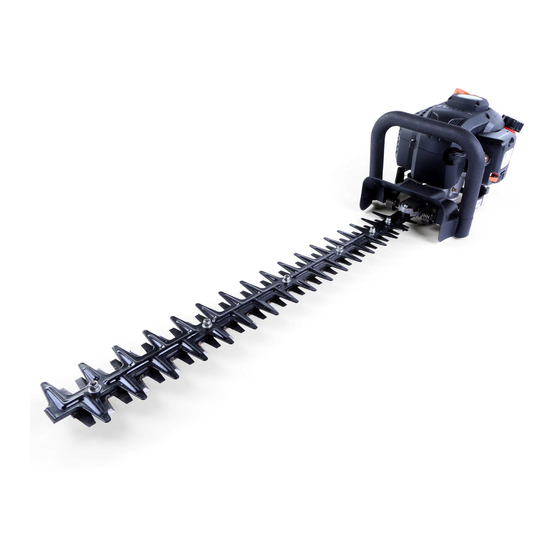

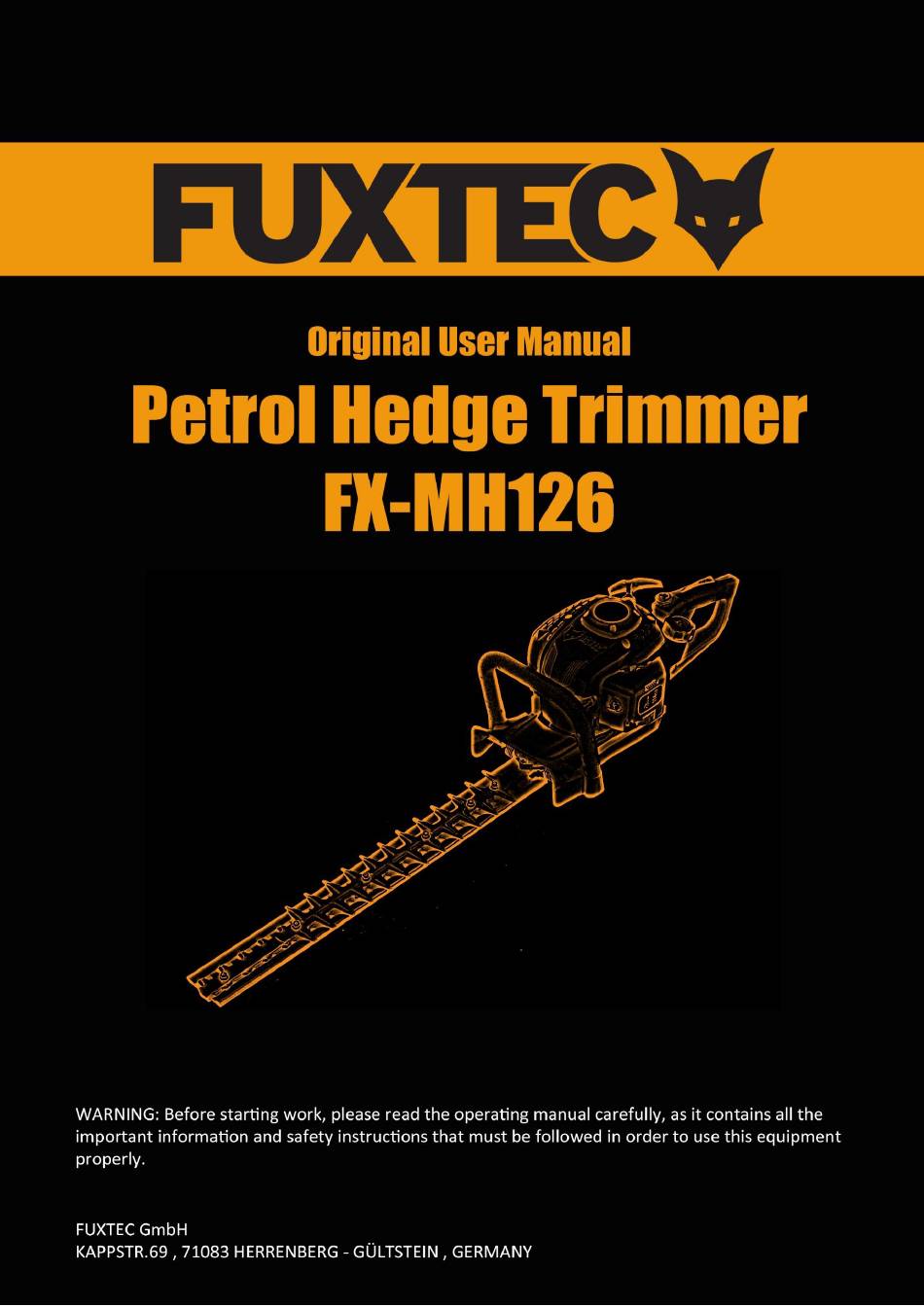

- Page 1 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09...
- Page 2 ORIGINAL USER MANUAL Petrol hedge trimmer FX-MH126 Your new device has been developed and designed to meet FUXTEC's high standards, such as easy operation and user safety. Properly treated, this equipment will serve you well for years to come. WARNING: To reduce the risk of injury, the user must read and understand this manual before operating the equipment.
-
Page 3: Table Of Contents
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 TABLE OF CONTENTS TECHNICAL DATA......................4 SYMBOLS AND SAFETY INSTRUCTIONS ON THE DEVICE ........5 COMPONENT OVERVIEW ..................7 INTENDED USE / NOT INTENDED USE ............... 8 SAFETY INSTRUCTIONS FOR HANDLING AND MAINTAINING THE DEVICE ..10 STARTING/STOPPING THE DEVICE ................. -
Page 4: Technical Data
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 1. Technical Data Description Petrol Hedge trimmer Type FX-MH126 Engine air-cooled; 2-stroke Cubic capacity 25cm Maximum output power (kW) 0.7kW / 7.500min (in accordance with ISO 8893) 90.9 dB (A) (K=3dB) Sound pressure level LPA at operator workstation 103.2 dB(A) (K=3dB) -
Page 5: Symbols And Safety Instructions On The Device
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 2. Symbols and safety instructions on the device Warnings on the petrol hedge trimmer WARNING! IMPROPER USE MAY LEAD TO SERIOUS INJURY READ AND UNDERSTAND THIS MANUAL BEFORE USE. ALWAYS WEAR EYE AND EAR PROTECTION WEAR FOOT PROTECTION. - Page 6 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 DEVICE MUST NOT BE USED IN THE RAIN THE GUARANTEED NOISE LEVEL COMPLIES WITH THE LEGAL NOISE GUIDELINES WARNING: DANGER OF HOT COMPONENTS WARNING: HIGHLY FLAMMABLE HANDLE CAN BE ADJUSTED BY 90° IN EACH DIRECTION SAFETY FIRST This manual contains warnings that are marked with symbols.
-
Page 7: Component Overview
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 3. Component overview 1. Front handle 9. Air filter 2. Pull cord starter 10. Choke lever 3. Start/stop switch 11. Primer pump 4. Throttle lock 12. Spark plug 5. Rear handle 13. Exhaust 6. Throttle lever 14. -
Page 8: Intended Use / Not Intended Use
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 4. Intended use / not intended use The petrol-powered hedge trimmer is exclusively intended for cutting hedges or bushes. The maximum branch diameter of the hedge must not exceed 28mm. Proper use also includes reading and adhering to the operating instructions before each use. - Page 9 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 - Are the handles firmly mounted on the device body? If you experience an unpleasant feeling or discoloration of the skin on your hands throughout the use of the device, stop working immediately. Take sufficient breaks from work.
-
Page 10: Safety Instructions For Handling And Maintaining The Device
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 5. Safety instructions for handling and maintaining the device BEFORE USE Read this manual carefully until you are thoroughly familiar with it; always follow all safety and operating instructions. Always follow the safety instructions. The hedge trimmer may only be used to trim hedges or small bushes. - Page 11 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 When refuelling, wipe off any spilled fuel thoroughly with a dry cloth. After refuelling, tighten the fuel filler cap and move the equipment about 3 m from the refuelling location before starting the Engine. TRANSPORT During transport, it is imperative that the enclosed protective cover or other suitable protective coverings be used.
- Page 12 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 BEFORE USE Before starting work, check the working area to avoid injury from obstacles such as tree stumps, stones, tin cans or broken glass. Remove all obstacles before starting work. (Terrain conditions, characteristics of the area, position of the obstacles, danger of the...
- Page 13 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 • During use, the eyes must focus on the cutting, otherwise the throttle lever must be reset to "start speed". • Hold the equipment far enough away from your feet. MAINTENANCE INSTRUCTIONS • To ensure proper operation, the equipment must be regularly maintained and checked according to the instructions in this manual.
-
Page 14: Starting/Stopping The Device
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 6. Starting/stopping the device STARTING THE ENGINE WARNING! The cutting blade starts to move when the Engine is started. 1. release the throttle and make sure that it is fully down (F1) 2. set the ignition switch to "I (run) (F1) 3. - Page 15 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 left open (F3) 2. too much choke can lead to starting problems due to overly excessive fuel flow. If the Engine cannot be started after several attempts, open the choke and pull the starter cable repeatedly or remove the spark plug and dry it.
-
Page 16: Refuelling The Device
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 USE: For easy trimming of hedges, the handle can be turned 90° to the right or left. Do not operate the throttle during this procedure! WARNING! Proceed as follows: release the handle by pressing the locking lever. - Page 17 The Engines should be lubricated with oil that has a special formula for use with air-cooled 2-stroke petrol engines. We recommend here the original FUXTEC 2T oil (Made in Germany) to ensure the longevity of the Engine.
-
Page 18: Maintenance And Cleaning
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 8. Maintenance and cleaning WARNING! Always wear safety gloves when cleaning and servicing the equipment, switch off the Engine and let it cool down. 1. FILTER The cleanliness of the filter must be checked every day. If the filter on one side of the carburettor is dusty, it must be cleaned. - Page 19 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 Check regularly that the springs are not deformed or damaged. 5. AIR FILTERS IMPORTANT! A dirty air filter has a negative effect on engine performance. Check the foam filter and clean with compressed air if necessary. If the filter element is dirty, it should be replaced.
- Page 20 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 10. EXHAUST PORT Remove the muffler and use a screwdriver to remove carbon deposits from the exhaust port. Also remove carbon deposits from the exhaust port and cylinder exhaust port. (F13) (1) Screwdriver (2) Exhaust silencer Retighten screws, bolts and brackets.
- Page 21 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 Procedure System/Component Befor After After After Note e use every 25 every 50 every hours hours hours Fuel leaks, fuel Wipe Replace if splashes necessary Fuel tank, air filter, check/clean Replace fuel filter carburettor, if...
-
Page 22: Storage Of The Device
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 9. Storage of the device WARNING: If you do not follow these steps, deposits may form in the carburettor. This makes it difficult to start later and causes permanent damage. 1. Performing all general maintenance as described in the maintenance section of your user manual are recommended. -
Page 23: Troubleshooting
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 10. Troubleshooting 1. Difficulties during start-up Situation Cause Solution Clean the spark plug. Carbon deposition between the Adjust the gap Spark plug No ignition diodes of the spark plug 0.6~0.7mm, Replace the spark plug spark... -
Page 24: Customer Service
Carburettor gasket worn out Replace carburettor or gasket If no troubleshooting solves the problem, please contact the customer support of FUXTEC GmbH directly. Only use original parts approved by FUXTEC, otherwise there is a risk of danger. Customer service Have your purchased equipment repaired only by qualified personnel and only with original spare parts. -
Page 25: Disposal Instructions
Original User Manual FUXTEC FX-MH126_de_en_fr_rev09 Disposal instructions Please contact your local municipality for the disposal of the equipment. Please dispose of all operating materials such as petrol and oil in advance. -
Page 26: Ec Declaration Of Conformity
Applied harmonised EN ISO 10517 Standards: EN ISO 14982 Manufacturer signature/date: Tim Gumprecht, 06.01.2020 Name and address of the Tim Gumprecht person authorised to compile FUXTEC GMBH - KAPPSTRAßE 69, 71083 HERRENBERG, the technical documentation GERMANY established within the Community... - Page 27 Original User Manual FUXTEC FX-MH126_de_en_fr_rev09...
