- Page 1 Original User Manual FX-4MS131_rev03...

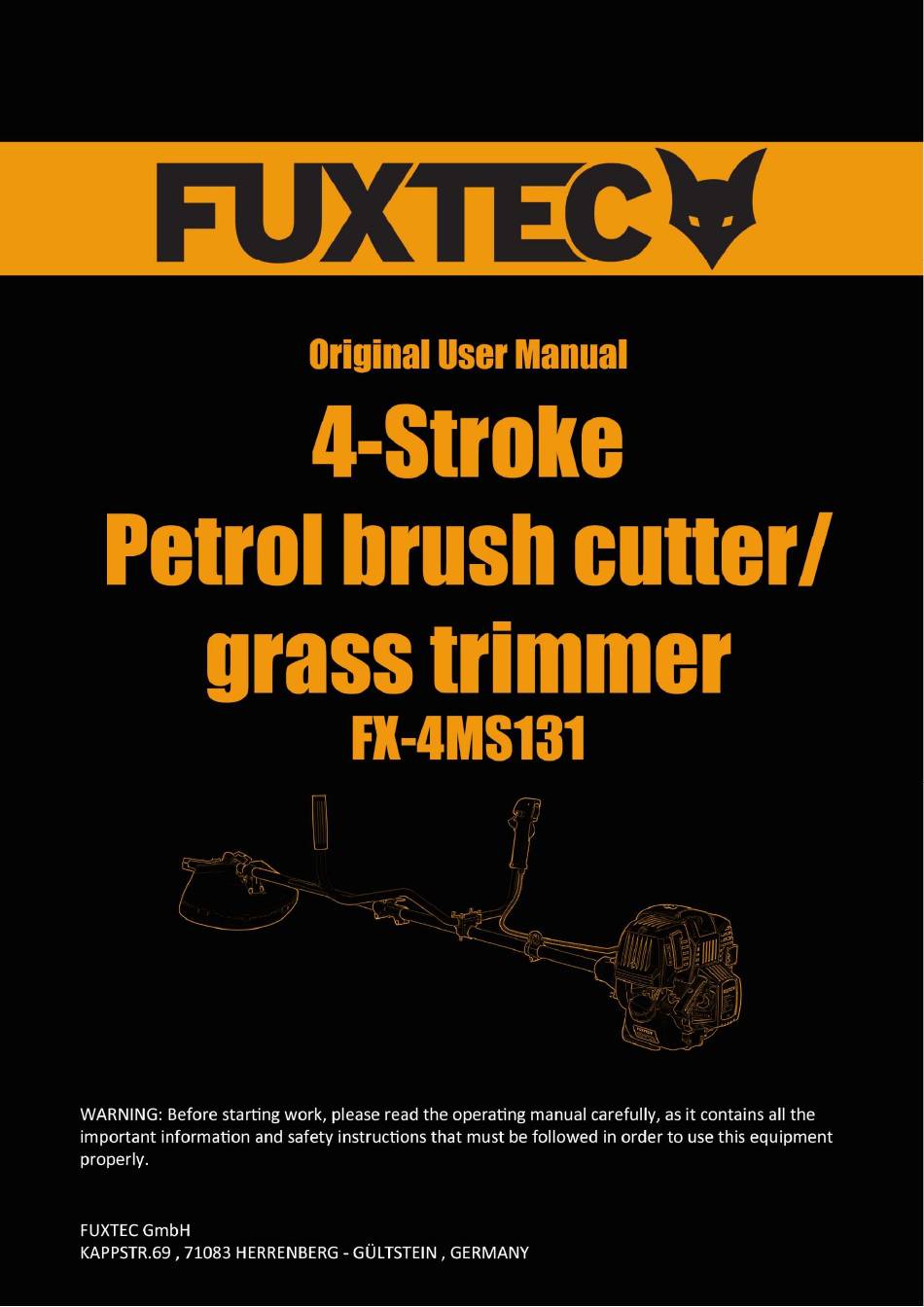

- Page 2 Petrol brush cutter/grass trimmer FX-4MS131 Your new device has been developed and designed to meet FUXTEC's high standards, such as easy operation and user safety. Properly treated, this device will serve you well for years to come. WARNING: To reduce the risk of injury, the user must read and understand this manual before operating the device.
-
Page 3: Table Of Contents
Original User Manual FX-4MS131_rev03 TABLE OF CONTENTS Technical data ........................ 4 Symbols on the machine ....................5 General Safety Instructions .................... 7 Instructions for accessories .................... 9 Component overview ....................13 Mounting the brush cutter .................... 14 Cold start of the machine ..................... 18 Warm start of the machine ................... -
Page 4: Technical Data
Number of the handle 2 pieces Dry weight (kg) Fuel tank capacity (ml) Oil tank capacity (ml) 80ml FUXTEC 4-stroke oil (SAE30) Fuel consumption (kg/h) (in accordance with ISO 0.89 8893) Specific fuel consumption (g/kWh) (in accordance with ISO 8893) Weight (net/gross) in (kg) 7.5 / 10.0... -
Page 5: Symbols On The Machine
Original User Manual FX-4MS131_rev03 2. Symbols on the machine WARNING! IMPROPER HANDLING CAN LEAD TO SERIOUS INJURY READ AND UNDERSTAND THIS USER MANUAL BEFORE USE. ALWAYS WEAR EYE PROTECTION, EAR PROTECTION, AND HEAD PROTECTION WEAR FOOT PROTECTION. WEAR GLOVES (Sharp edge!). DO NOT TOUCH THE ROTATING BLADE, DANGER OF INJURY ALWAYS KEEP 15 METERS AWAY FROM OTHER... - Page 6 Original User Manual FX-4MS131_rev03 NO SMOKING AND OPEN FLAMES ON THE DEVICE WARNING: DANGER OF HOT COMPONENTS ALWAYS TURN THE MACHINE ON AND MAKE SURE THE CUTTING TOOL IS STOPPED BEFORE CLEANING, REMOVING, OR ADJUSTING THE BLADE. WARNING: FUMES FROM THIS PRODUCT CONTAIN CHEMICALS THAT CAUSE CANCER, BIRTH DEFECTS AND FURTHER CAN LEAD WARNING! NEVER CHANGE THE MACHINE.
-
Page 7: General Safety Instructions
Original User Manual FX-4MS131_rev03 Do not allow others to use this machine unless they are fully responsible and have read and understood the machine manual and are trained in its operation. Extensive use of a tool exposes the user to shocks that can lead to white finger disease (Raynaud's syndrome) or carpal tunnel syndrome. - Page 8 Original User Manual FX-4MS131_rev03 OTHERS TO DANGER. Follow these general safety instructions. Always wear safety glasses for eye protection. Long hair must be tied back. Do not wear loose clothing or jewellery that can get caught in moving parts of the machine. Safe, stable, non-slip safety shoes must always be worn.
-
Page 9: Instructions For Accessories
Original User Manual FX-4MS131_rev03 Keep hands and feet free of the nylon cutting head or metal blade during the operation. Do not use the machine if you are tired, sick, or under the influence of medication, drugs, or alcohol. ... - Page 10 Original User Manual FX-4MS131_rev03 Never touch the nylon cutting head or metal blade when the machine is running. If it is necessary to replace the guard or cutting tool, be sure that the machine and cutting tools have stopped. ...
- Page 11 Original User Manual FX-4MS131_rev03 CUTTING WITH A CUTTING BLADE A metal sheet with 3 teeth is equipped with the machine. The metal blade is used for cutting bushes and weeds up to 3/4" in diameter. The use of the saw blade with this machine is prohibited. WARNING DANGER Do not cut with blunt, cracked or damaged metal sheets.
- Page 12 Original User Manual FX-4MS131_rev03 The shoulder strap is equipped with a quick-release device You can quickly remove the shoulder strap (see picture). by pulling the quick release. Read the manual carefully. Be thoroughly familiar with the controls and correct use of the machine. Learn how to stop the machine and how to turn off the device.
-
Page 13: Component Overview
Original User Manual FX-4MS131_rev03 5. Component overview BLADE (3-tooth) CUTTING KNIFES PROTECTIVE SHIELD 4. DRIVE AXLE U-HANDLE ASSISTANCE HANDLE HANDLE THROTTLE LOCK* ENGINE STOP SWITCH 10. SAFETY INTERLOCK 11. GAS LEVER 12. TANK 13. FUEL CAP 14. CONNECTOR 15. WING SCREW 16. -
Page 14: Mounting The Brush Cutter
Original User Manual FX-4MS131_rev03 6. Mounting the brush cutter Attaching the handle The handle must be mounted before use. For correct installation, follow the illustrations below. Mounting the handle tube for use Place cup B on the shaft tube, up and down, screw both cups and the shaft tube together. Put the handle into the provided clamping bush, which is already attached to the shaft tube. - Page 15 Original User Manual FX-4MS131_rev03 Installing the protective shield Install the blade guard on the driveshaft tube against the gear housing. Tighten the holder of the guard so that the blade guard does not move or slide down during operation. Mounting the grass trimmer Step 1: Insert the key (1) into the hole in the gear head so that the gear shaft is locked.
- Page 16 Original User Manual FX-4MS131_rev03 Installation of the protective shield Install the protective shield on the driveshaft tube against the gear housing. Tighten the holder of the guard so that the blade guard does not move or slide down during operation. Mounting the metal blade steps: 1.
- Page 17 Original User Manual FX-4MS131_rev03 Check the oil level. 1 Place the engine horizontally on the floor. 2 Unscrew the dipstick and check the oil level, which should be up to the oil filler neck 3 If the oil level is too low, add the recommended oil up to the oil filler neck.
-
Page 18: Cold Start Of The Machine
Original User Manual FX-4MS131_rev03 open fire, as well as any sparks, must be avoided during refuelling. ● Do not overfill the tank (the level should not be higher than the tank nozzle). After refuelling, check that the tank cap is closed correctly. ●... -
Page 19: Warm Start Of The Machine
Original User Manual FX-4MS131_rev03 from the pulled-out position. This could damage the starter device. 8. Warm start of the machine Place the device on a firm and flat surface. Move the engine stop switch down Slide the choke to the "WARM START" position Pull out the starter rope with a short-stroke until resistance is felt (about 100mm). -
Page 20: Trimming Techniques
Original User Manual FX-4MS131_rev03 9. Trimming techniques When properly equipped with a protective shield and nylon cutting head, your machine will trim unsightly weeds and tall grass with extended reach and areas along fences, walls, land, and around trees. NOTE: Pay special attention when trimming on brick or stone walls, etc., which will cause rapid weed wear. - Page 21 Original User Manual FX-4MS131_rev03 4. Cut the new thread to 6 or 5 meters and wind it tightly clockwise around the bobbin. 5. Remove the superfluous thread. 6. After the bobbin is wrapped, fix the thread ends, as shown in the picture. 7.
-
Page 22: Maintenance And Care
Original User Manual FX-4MS131_rev03 10. Maintenance and care Regular checks and adjustments must be made to ensure that the petrol engine maintains its excellent performance. Periodic maintenance also provides a long service life. See the following table for the regular maintenance cycle. Maintenance Every Every 3... - Page 23 Original User Manual FX-4MS131_rev03 Oil change It is also recommended to replace the oil if it runs hot and loses its lubricating properties. 1 After filling, check that the oil cover is well closed. 2 When changing the oil, unscrew the oil cover and tilt the engine towards the oil filler neck to collect the oil in a suitable container for used oil.
- Page 24 Original User Manual FX-4MS131_rev03 5 Install the filter cover and screw the screw back in clockwise. Spark plug maintenance To ensure regular operation of the engine, the ignition distance of 0.6 - 0.7 must be maintained and free of carbon deposits. 1 Carefully remove the spark plug connector.
- Page 25 Original User Manual FX-4MS131_rev03 PROTECTIVE SHIELD-KNIFE SHARPENING. 1. Remove the cutting blade (E) from the protective shield (F). 2. Clamp the knife in a vice. Sharpen the knife with a flat-file. Please make sure that you keep the angle of the cutting edge. Move the blade only in one direction.
-
Page 26: Troubleshooting
Original User Manual FX-4MS131_rev03 11. Troubleshooting 1. Difficulties during commissioning Situation Cause Solution Clean the spark plug. Adjust the gap Spark plug Coal deposit 0.6~0.7mm Replace No ignition spark the spark plug ignition coil defective flywheel magnet too replaced ignition coil other weak replaced flywheel... -
Page 27: Customer Service
That will ensure that the safety of the device is maintained. If you do not have the addresses of authorized service centres, please contact the sales office where you purchased the device. Please contact the manufacturer FUXTEC GmbH directly at www.fuxtec.de at any time regarding maintenance work and procurement of spare parts. -
Page 28: Ec Declaration Of Conformity
Tim Gumprecht, 26.05.2020 The name and address of the person authorized to compile the technical documentation established within the community Tim Gumprecht, 26.05.2020 FUXTEC GMBH - KAPPSTRAßE 69, 71083 HERRENBERG, Name address person GERMANY authorized to compile the technical file,... - Page 29 Original User Manual FX-4MS131_rev03 community...
