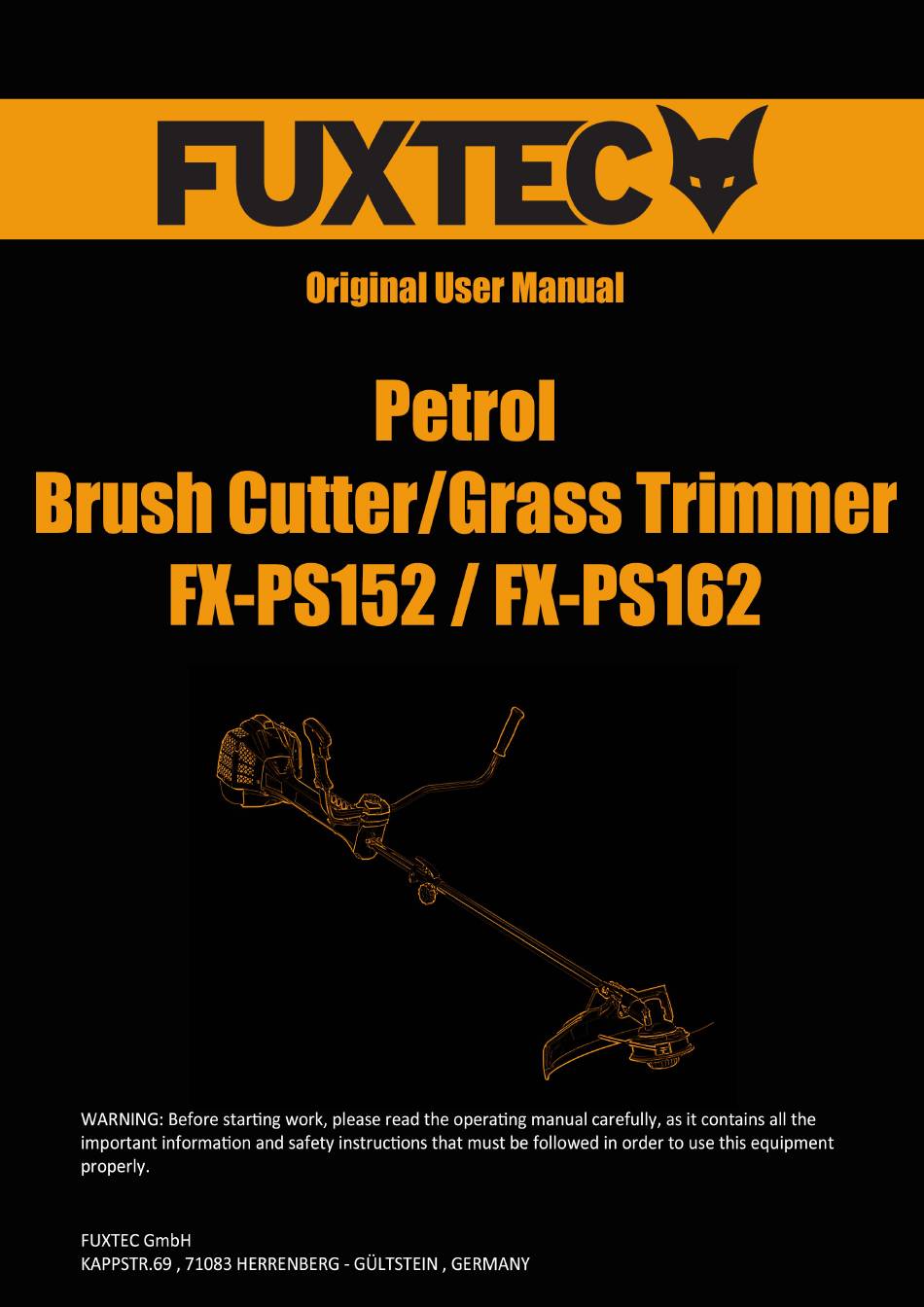

- Page 1 Original User Manual FUXTEC FX-PS152 / FX-PS162...

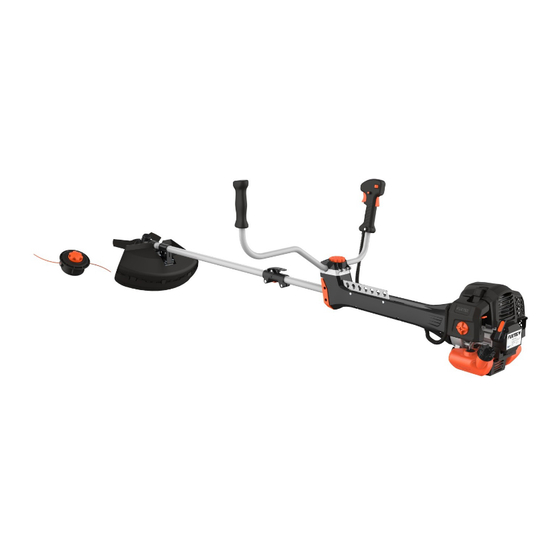

- Page 2 ORIGINAL USER MANUAL Petrol Brush Cutter/Grass trimmer FX-PS152 / FX-PS162 Your new device has been developed and designed to meet FUXTEC's high standards, such as easy operation and user safety. Properly treated, this device will serve you well for years to come.
-
Page 3: Table Of Contents
Original User Manual FUXTEC FX-PS152 / FX-PS162 TABLE OF CONTENTS 1. TECHNICAL DATA .................... 4 2. SYMBOLS AND SAFETY INSTRUCTIONS ON THE MACHINE ....... 5 3. INTENDED USE AND GENERAL SAFETY INSTRUCTIONS ......8 4. NOTES ON ACCESSORIES ................10 5. -
Page 4: Technical Data
Original User Manual FUXTEC FX-PS152 / FX-PS162 19. DISPOSAL NOTE ..................... 27 20. EC DECLARATION OF CONFORMITY ............28 We are continually striving to improve our products. Therefore technical data and illustrations may change! 1. Technical Data Type FX-PS152 FX-PS162 Engine air-cooled;... -
Page 5: Symbols And Safety Instructions On The Machine
Original User Manual FUXTEC FX-PS152 / FX-PS162 2. Symbols and safety instructions on the machine WARNING! INADEQUATE CONDITIONS MAY LEAD TO SERIOUS INJURY READ AND UNDERSTAND THIS USER MANUAL BEFORE USE. ALWAYS WEAR EYE PROTECTION, EAR PROTECTION, AND HEAD PROTECTION WEAR FOOT PROTECTION. - Page 6 Original User Manual FUXTEC FX-PS152 / FX-PS162 NO SMOKING AND OPEN FLAMES NEAR THE DEVICE WARNING: DANGER OF HOT COMPONENTS ALWAYS SWITCH OFF THE DEVICE AND ENSURE THAT THE CUTTING TOOL IS STOPPED BEFORE CLEANING, REMOVING OR ADJUSTING IT. WARNING:...
- Page 7 Original User Manual FUXTEC FX-PS152 / FX-PS162 Do not allow others to use this device unless they have been fully instructed, have read and understood the user manual, and have been trained in the operation of the device. Prolonged use of the device exposes the user to shocks that can lead to white finger disease (Raynaud's syndrome) or carpal tunnel syndrome.
-
Page 8: Intended Use And General Safety Instructions
Original User Manual FUXTEC FX-PS152 / FX-PS162 3. Intended use and general safety instructions This device may only be used for mowing or trimming grass, weeds, and undergrowth. Never apply it for other purposes, as this may result in serious injury! Correct safety instructions must be followed. - Page 9 Original User Manual FUXTEC FX-PS152 / FX-PS162 ● Children must not have access to the device. Spectators should stand at a safe distance of at least 15 meters from the working area. ● Keep hands and feet away from the nylon cutting head or metal blade during operation.
-
Page 10: Notes On Accessories
Original User Manual FUXTEC FX-PS152 / FX-PS162 4. Notes on accessories ● Make sure that your product is only equipped with original accessories. Only use original parts that are specified by the manufacturer. The use of any other attachments or accessories may cause injury to the user and damage to the device. -
Page 11: Notes On Working With The Metal Blade
Original User Manual FUXTEC FX-PS152 / FX-PS162 blocked or jams. This is more likely in areas where it is difficult to see the material being cut. For easy and safe cutting, approach the weeds to be cut from your right to your left side. - Page 12 Original User Manual FUXTEC FX-PS152 / FX-PS162 The shoulder strap is equipped with a quick-release device (see picture). You can quickly remove the shoulder strap by pulling on the quick-release device. Read the manual carefully. Be thoroughly familiar with the control and correct use of the device.
-
Page 13: Component Overview
Original User Manual FUXTEC FX-PS152 / FX-PS162 7. Component overview Nylon thread head 11. Pull-rope Easy starter Cutting blades 12. Exhaust pipe Shield 13. Accelerator handle Drive axle 14. Throttle lock* U-Handle 15. Start/stop switch Carrying Strap Mount 16. Gas interlock** Anti-vibration unit 17. -
Page 14: Mounting The Device
Original User Manual FUXTEC FX-PS152 / FX-PS162 8. Mounting the device Attaching the handle The handle must be fitted before use. Follow the illustrations below for correct installation. Mounting the handle tube for use Place the U-handle in the open holder and screw both shells together with the orange locking screw. - Page 15 Original User Manual FUXTEC FX-PS152 / FX-PS162 Installing the protective shield Install the protective shield on the driveshaft tube against the gearbox housing. Tighten the holder of the guard so that the blade guard does not move or slide down during operation.
- Page 16 Original User Manual FUXTEC FX-PS152 / FX-PS162 Installation of the lawn trimmer (thread spool) Step one: Insert the key (1) into the hole in the gearhead so that the gear shaft is locked. Unscrew and remove the nut. Since it is a safety nut, please make sure that there is a left-hand thread here.
- Page 17 Original User Manual FUXTEC FX-PS152 / FX-PS162 the mixture table on the following page for the correct fuel/oil ratio. Shake the tank to ensure complete mixing. Two-stroke engine oil Two-stroke engine oil Gasoline (40:1) Gasoline (40:1) 1 liter 0.025 liters 5 liters 0.125 liters...
-
Page 18: Cold Start Of The Engine
Original User Manual FUXTEC FX-PS152 / FX-PS162 9. Cold start of the engine Place the device on a firm and flat surface. Slide the engine stop switch forward to position 1. Move the choke lever upwards to "COLD START." Press the carburetor pump about 8-10 times (until gasoline flows in the line) Pull out the starter rope with a short-stroke until resistance is felt (about 100mm). -
Page 19: Warm Start Of The Engine
Original User Manual FUXTEC FX-PS152 / FX-PS162 NOTE: If the device does not start after repeated attempts, refer to troubleshooting chapters. NOTE: Always pull the starter cord straight out. Pulling the starter at an angle will cause the rope to rub against the eyelet. Pulling the starter at an angle can cause the starter cable to fray or break. - Page 20 Original User Manual FUXTEC FX-PS152 / FX-PS162 with damaged or defective parts. DO NOT use the device for any purpose other than trimming grass. Never lift the nylon cutting head above knee height during operation. Do not run the device on a slope if there is a chance of slipping or losing stability.
-
Page 21: Replacing Nylon Thread
Original User Manual FUXTEC FX-PS152 / FX-PS162 Replacing Nylon Thread The model FX-PS152 comes with an EASY Fit nylon thread head, which does not need to be disassembled in a complicated way. You turn the bobbin head (orange) until the arrow markings match, and the hole is visible throughout. -
Page 22: Maintenance Plan
Original User Manual FUXTEC FX-PS152 / FX-PS162 Maintenance plan Regular checks and adjustments must be made to ensure that the gasoline engine maintains its performance. Periodic maintenance also provides a long service life. See the following table for the regular maintenance cycle. - Page 23 Original User Manual FUXTEC FX-PS152 / FX-PS162 Cleaning the air filter CAUTION: Never run the engine without the air filter. A dirty air filter puts pressure on engine performance, increases fuel consumption, and makes starting more difficult. If you notice a loss of engine power: 1 Remove the screw on the filter cover and take out the filter.
-
Page 24: Storage Of The Device
Original User Manual FUXTEC FX-PS152 / FX-PS162 Storage of the device WARNING: Failure to follow these steps may result in the formation of deposits in the carburetor. This will make starting difficult and cause permanent damage 1. Perform all general maintenance as described in the maintenance section of your user manual are recommended. -
Page 25: Troubleshooting
Original User Manual FUXTEC FX-PS152 / FX-PS162 Troubleshooting 1. Difficulties during commissioning Situation Cause Solution Clean the spark plug. Carbon deposit between the diodes Adjust the gap Spark plug of the spark plug 0.6~0.7mm, replace No ignition the spark plug... -
Page 26: Customer Service
Have your purchased device repaired only by qualified personnel and only with original spare parts. This will ensure that the safety of the device is maintained. Please contact the manufacturer FUXTEC GmbH directly at any time regarding maintenance work and procurement of spare parts at www.fuxtec.de... - Page 27 Original User Manual FUXTEC FX-PS152 / FX-PS162 Disposal note Please contact your local municipality for the disposal of the device. Please dispose of all operating materials such as gasoline and oil in advance.
- Page 28 Original User Manual FUXTEC FX-PS152 / FX-PS162 EC Declaration of Conformity We hereby declare, FUXTEC GMBH CAPPING ROAD 69, 71083 HERRENBERG, GERMANY that the device described below, by its design and construction and in the version marketed by us, complies with the relevant essential health and safety requirements of the EC directives.
- Page 29 Original User Manual FUXTEC FX-PS152 / FX-PS162...
