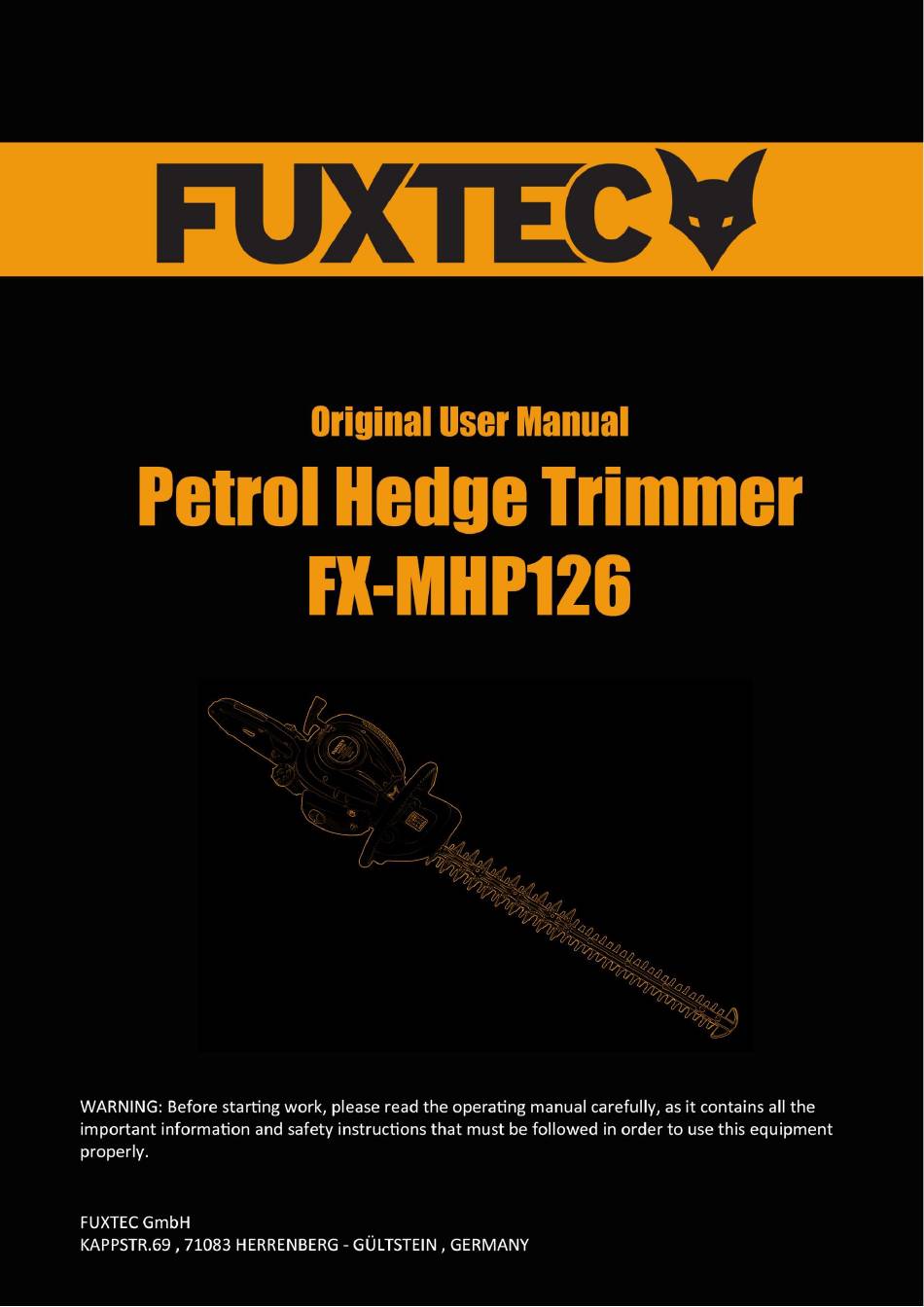

- Page 1 Original User Manual FUXTEC FX-MHP126_rev03...

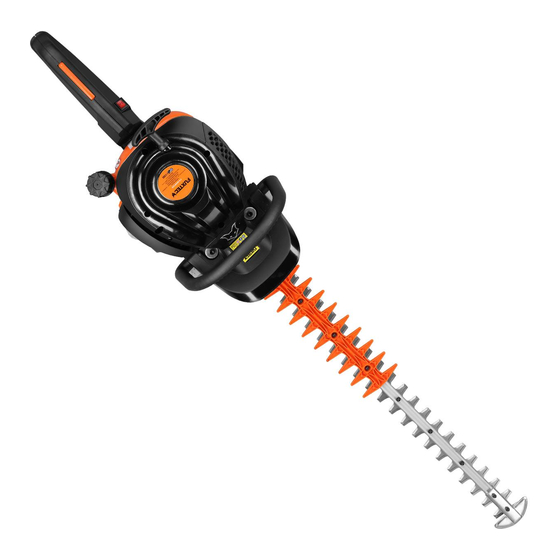

- Page 2 USER MANUAL Petrol hedge trimmer FX-MHP126 Your new device has been developed and designed to meet FUXTEC's high standards of ease of use and user safety. Properly treated, this device will serve you well for years to come. WARNING: To reduce the risk of injury, the user must read and understand this manual before operating the device.
-
Page 3: Table Of Contents
Original User Manual FUXTEC FX-MHP126_rev03 TABLE OF CONTENTS TECHNICAL DATA......................4 SYMBOLS AND SAFETY INFORMATION OF THE DEVICE ........5 COMPONENT OVERVIEW .................... 7 INTENDED USE / NON-INTENDED USE ..............8 SAFETY INFORMATION ON HANDLING AND MAINTENANCE OF THE DEVICE ... 10 STARTING/STOPPING THE DEVICE ................. -
Page 4: Technical Data
Original User Manual FUXTEC FX-MHP126_rev03 1. TECHNICAL DATA Designation Petrol Hedge trimmer Type FX-MHP126 Engine type 1E34F-G1 Capacity 25.4cc Idle speed 3000±200rpm Maximum output power (kW) 0.75kW / 7,500rpm (in accordance with ISO 8893) Sound pressure level LPA at operator workstation in 87.6 dB (A) (K=2dB) -
Page 5: Symbols And Safety Information Of The Device
Original User Manual FUXTEC FX-MHP126_rev03 2. SYMBOLS AND SAFETY INFORMATION OF THE DEVICE Warnings on the petrol hedge trimmer WARNING! IMPROPER USE MAY LEAD TO SERIOUS INJURY READ AND UNDERSTAND THIS MANUAL BEFORE USE. ALWAYS WEAR EAR PROTECTION. ALWAYS WEAR FOOT PROTECTION. - Page 6 Standard Operating Manual FUXTEC FX-MHP126_rev03 REMOVE THE SPARK PLUG CONNECTOR BEFORE MAINTENANCE WORK. THE GUARANTEED NOISE LEVEL COMPLIES WITH THE LEGAL NOISE GUIDELINES. WARNING: DANGER OF HOT COMPONENTS. WARNING: HIGHLY FLAMMABLE. DO NOT USE DEVICE IN WET CONDITIONS. SAFETY FIRST This manual contains warnings which are marked with symbols.
-
Page 7: Component Overview
Standard Operating Manual FUXTEC FX-MHP126_rev03 3. COMPONENT OVERVIEW 1. Rear handle 2. Throttle lock 3. Start/stop switch 4. Pull starter 5. Front handle 6. Throttle lever 7. Unlocking handle 8. Tank 9. Choke lever 10. Air filter 11. Primer pump 12. -
Page 8: Intended Use / Non-Intended Use
Proper use also includes reading and following the operating instructions before each use. Check the hedge trimmer for mechanical damage before and throughout use. If repairs are necessary, contact FUXTEC UK. Only spare parts approved by the manufacturer or original spare parts may be used. The hedge trimmer may only be operated in open garden areas. - Page 9 Standard Operating Manual FUXTEC FX-MHP126_rev03 If you notice an unpleasant feeling or skin discoloration on your hands during use of the device, stop working immediately. Take sufficient breaks from work. Failure to take sufficient breaks in work can lead to hand-arm vibration syndrome (white finger disease).
-
Page 10: Safety Information On Handling And Maintenance Of The Device
Original User Manual FUXTEC FX-MHP126_rev03 5. SAFETY INFORMATION ON HANDLING AND MAINTENANCE OF THE DEVICE BEFORE USE Read this manual carefully until you are thoroughly familiar with it; always follow all safety and operating instructions. Always follow the safety instructions. The hedge trimmer is to be used only for trimming hedges or small bushes. - Page 11 Standard Operating Manual FUXTEC FX-MHP126_rev03 When refuelling, wipe off any spilled fuel thoroughly with a dry cloth. After refuelling, tighten the fuel filler cap and move the device about 3m from the place of refuelling before starting the engine. TRANSPORT During transport, it is imperative that the enclosed protective cover or other suitable protective coverings be used.
- Page 12 Standard Operating Manual FUXTEC FX-MHP126_rev03 shape. After mounting the cutting blade and tightening the screw, check that it is properly fastened. The blade must not have any play to avoid excessive vibration throughout operation. BEFORE USE Before starting work, check the working area to avoid injury from obstacles such as tree stumps, stones, tin cans or broken glass.
- Page 13 Standard Operating Manual FUXTEC FX-MHP126_rev03 NOTES ON KICKBACK Kickback of the device means that the device shakes heavily when the fast-moving cutters hit hard objects such as stone, concrete, wooden piles, etc. This unexpected Kickback can prevent the operator from operating the device properly. To avoid this kickback, the following notes must be observed.
-
Page 14: Starting/Stopping The Device
Original User Manual FUXTEC FX-MHP126_rev03 6. STARTING/STOPPING THE DEVICE STARTING THE ENGINE WARNING! The cutting blade starts to move when the engine is started. 1. Release the throttle and make sure that it is fully down. (f1) 2. Set the ignition switch to "i (run) (f1) 3. - Page 15 Standard Operating Manual FUXTEC FX-MHP126_rev03 NOTE 1. If the engine is restarted immediately after it has been switched off, the choke must be left open (F3) 2. Too much choke can lead to starting problems due to overly moderate fuel flow.
- Page 16 Standard Operating Manual FUXTEC FX-MHP126_rev03 USAGE: For easy trimming of hedges, the handle can be turned 90° to the right or left. WARNING! Do not operate the throttle stick during this procedure! Proceed as follows: 1. Release the handle by pressing the locking lever.
-
Page 17: Refuelling The Device
The engines should be lubricated with oil that has a special formula for use with air-cooled 2-stroke petrol engines. We recommend here the original FUXTEC 2T Oil (Made in Germany) to ensure the longevity of the engine. FUEL MIXTURE Mix fuel with 2-stroke oil in a container provided for this purpose. - Page 18 Standard Operating Manual FUXTEC FX-MHP126_rev03 Petrol is highly flammable and can cause an explosion if sparks are produced. ⚫ Refuel only in well-ventilated areas and have the engine cool down before filling. ⚫ Smoking and open flame as well as any sparks must be avoided during refuelling.
-
Page 19: Maintenance And Cleaning
Original User Manual FUXTEC FX-MHP126_rev03 8. MAINTENANCE AND CLEANING WARNING! Always wear safety gloves when cleaning and servicing the device, switch off the engine and let it cool down. 1. FILTER The cleanliness of the filter must be checked every time it is used. If the filter on one side of the carburettor is dusty, it must be cleaned. - Page 20 Standard Operating Manual FUXTEC FX-MHP126_rev03 4. ANTI-VIBRATION SYSTEM WARNING! A defective or damaged anti-vibration system can cause breakage, causing the engine and/or the cutter blade to loosen or fall off. Check regularly that the springs are not deformed or damaged.
- Page 21 Standard Operating Manual FUXTEC FX-MHP126_rev03 9. GEARBOX CASE Every 25 operating hours, apply universal grease to the surface of the inner shaft. Use a lubricant pump to pump in sufficient lubricant until it emerges from the blade attachment. 10. EXHAUST BOX Remove the muffler and use a screwdriver to remove carbon deposits from the exhaust port.
- Page 22 Standard Operating Manual FUXTEC FX-MHP126_rev03 Procedure NOTE System/Component before use Every 25 Every 50 Every hours hours after after hours after wipe Replace if Fuel leaks, Fuel splashes necessary check/clean Replace Fuel tank, air filter, fuel filter carburettor, if necessary Check setting GAP: 0.6 - 0.7mm...
-
Page 23: Storage Of The Device
Standard Operating Manual FUXTEC FX-MHP126_rev03 9. STORAGE OF THE DEVICE WARNING: If you do not follow these steps, deposits may form in the carburettor. This makes later starting difficult and causes permanent damage 1. Perform all general maintenance as described in the maintenance section of your User manual are recommended. -
Page 24: Troubleshooting
Standard Operating Manual FUXTEC FX-MHP126_rev03 TROUBLESHOOTING 1. Difficulties during start-up Cause Situation Solution Clean the spark plug. Carbon deposition between the Adjust the gap spark plug diodes of the spark plug 0.6~0.7mm, Replace No ignition spark the spark plug ignition coil defective, flywheel... -
Page 25: Customer Service
This will ensure that the safety of the device is maintained. We strongly recommend using original FUXTEC 2T Oils for the use of the device. These oils are "Made in Germany" and are specifically intended for use with FUXTEC device. -
Page 26: Ec Declaration Of Conformity
EN ISO 3744, ISO 10884:1995 Norms: EN ISO 10517:2009A1:2013 Manufacturer Signature/Date: Tim Gumprecht, 06.01.2020 Name and address of the Tim Gumprecht person authorised to compile FUXTEC GMBH - KAPPSTRAßE 69, 71083 HERRENBERG, the technical documentation GERMANY established within the Community... - Page 27 Original User Manual FUXTEC FX-MHP126_rev03...
