6.1.1

Display in the standard mode

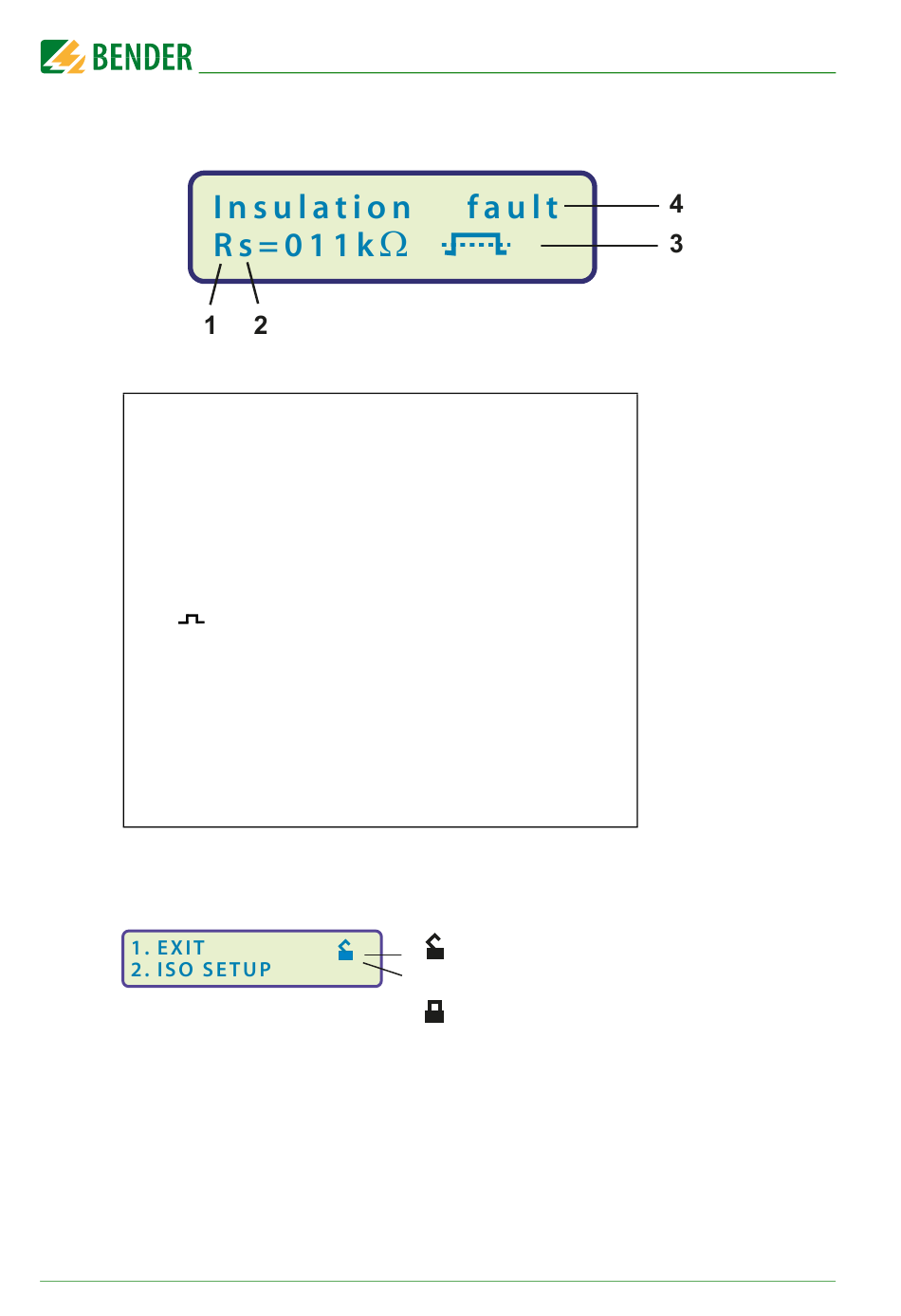

1 Indication of the insulation resistance in kΩ
2 Additional information about the insulation resis-
tance:
„+" = insulation fault at L+
„–" = insulation fault at L–
„s" = new measurement is running
3
4 Messages:
- Insulation fault
- Connection system?
- Connection PE??
- Device error x
- No EDS function
6.1.2

Display in the Menu mode

26
= Polarity of the measuring pulse (AMP)
Parameter change is allowed
Parameter change is blocked,
enabling by a password
