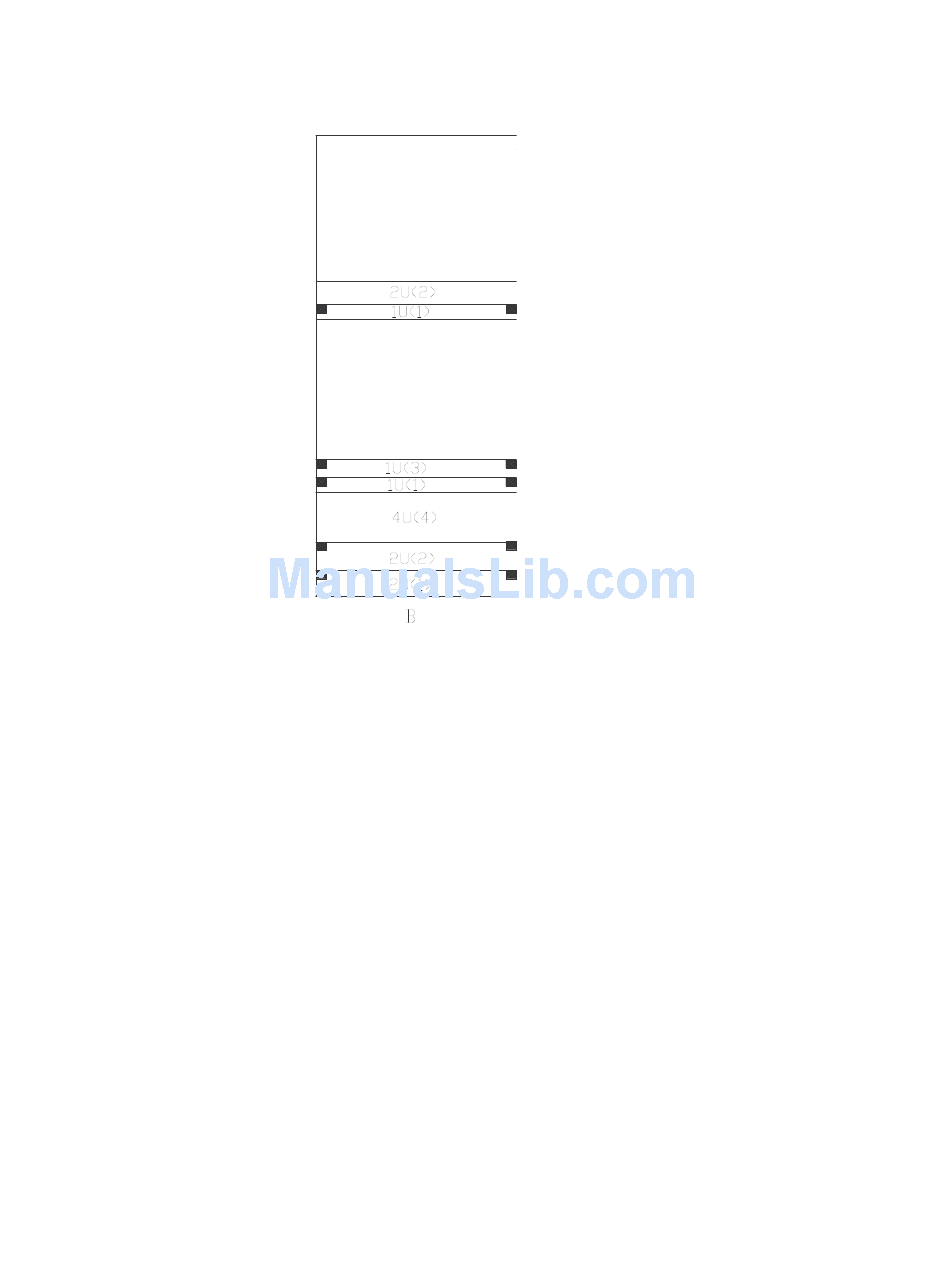

Figure 34 One Switch 8807 chassis in a cabinet
Switch 8807 11U
(1) Blank filler panel
(3) Backward cabling frame
Guideline: The space marked in Figure 34 must be reserved, and the remaining is
at your disposal.
Two Switch 8807 chassis in a cabinet
The components and their height are as follows (from bottom up):
Blank filler panel (2U)
■
Cabling frame (2U)
■
External PoE power supply (or blank filler panel if no external PoE power supply
■
is installed) (4U)
Blank filler panel (1U)
■
Back cabling frame (1U)
■
Switch 8807 chassis (11U)
■
Blank filler panel (1U)
■
Cabling frame (2U)
■
Switch 8807 chassis (11U)
■
Mounting the Switch in User-Supplied Cabinet
(2) Cabling frame
(4) Reserved for external PoE power supply
55
