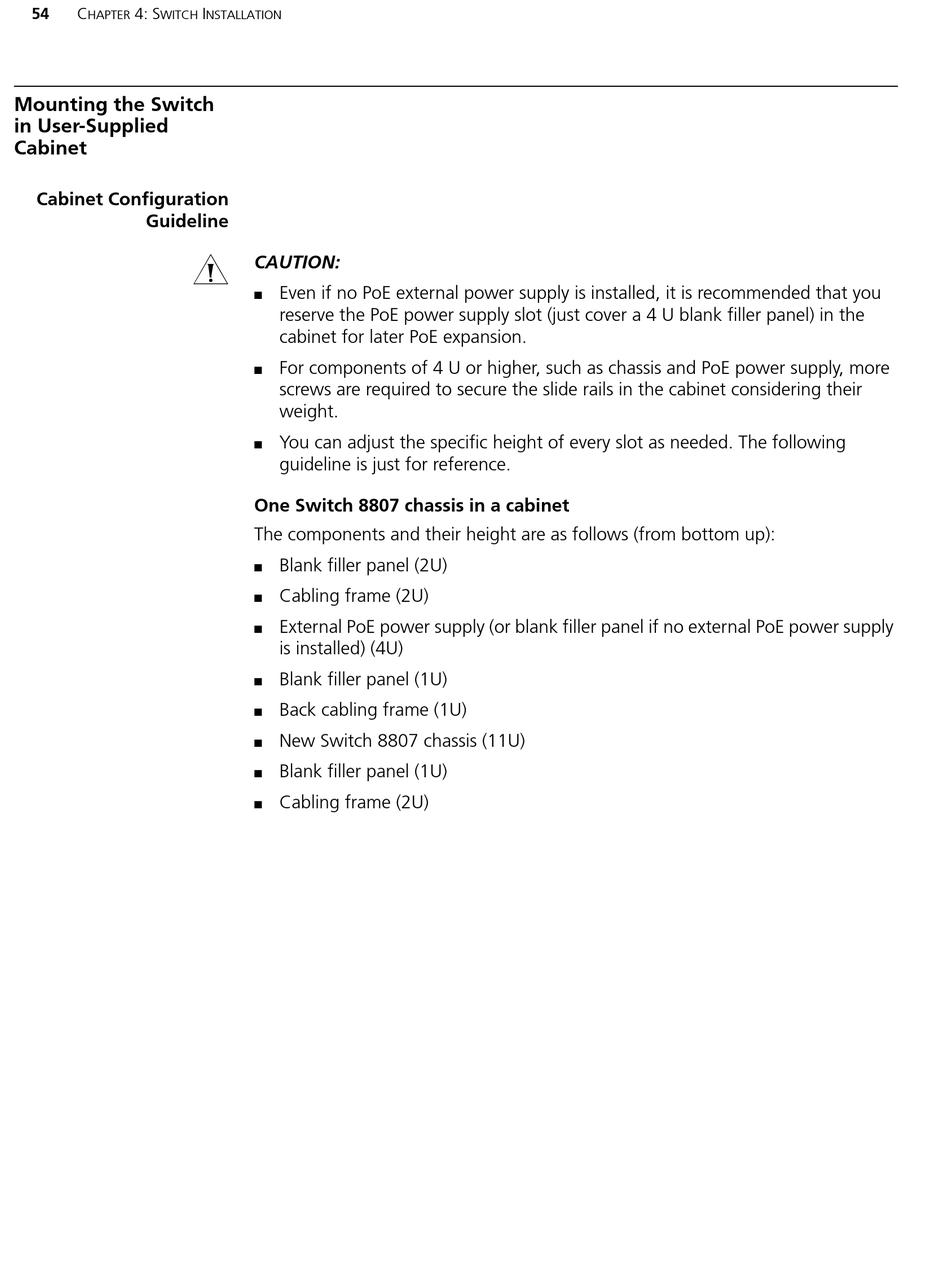

54 C 4: S
HAPTER WITCH
Mounting the Switch
in User-Supplied
Cabinet
Cabinet Configuration
Guideline
I
NSTALLATION
c
CAUTION:
Even if no PoE external power supply is installed, it is recommended that you
■
reserve the PoE power supply slot (just cover a 4 U blank filler panel) in the
cabinet for later PoE expansion.
For components of 4 U or higher, such as chassis and PoE power supply, more
■
screws are required to secure the slide rails in the cabinet considering their
weight.
You can adjust the specific height of every slot as needed. The following
■
guideline is just for reference.
One Switch 8807 chassis in a cabinet
The components and their height are as follows (from bottom up):
Blank filler panel (2U)
■
Cabling frame (2U)
■
External PoE power supply (or blank filler panel if no external PoE power supply
■
is installed) (4U)
Blank filler panel (1U)
■
Back cabling frame (1U)
■
New Switch 8807 chassis (11U)
■
Blank filler panel (1U)
■
Cabling frame (2U)
■
