14
C
1: P
HAPTER
RODUCT
n
O
VERVIEW
A Switch 8800 supports up to 4500 W (220 V)/2250 W (110 V) power to its
■
PDs. It determines whether to deliver power to a newly detected PD depending
on the power it currently supplied.
PoE entry area
The PoE-supported Switch 8807/Switch 8810/Switch 8814 chassis has a PoE entry
area between the two power supply units. You can insert a PoE 3C17510 Switch
8800 PoE Entry Module into this area, and connect this module to a 3C17509
Switch 8800 External PoE Power Rack so as to import the output power of the
External Power Rack unit.

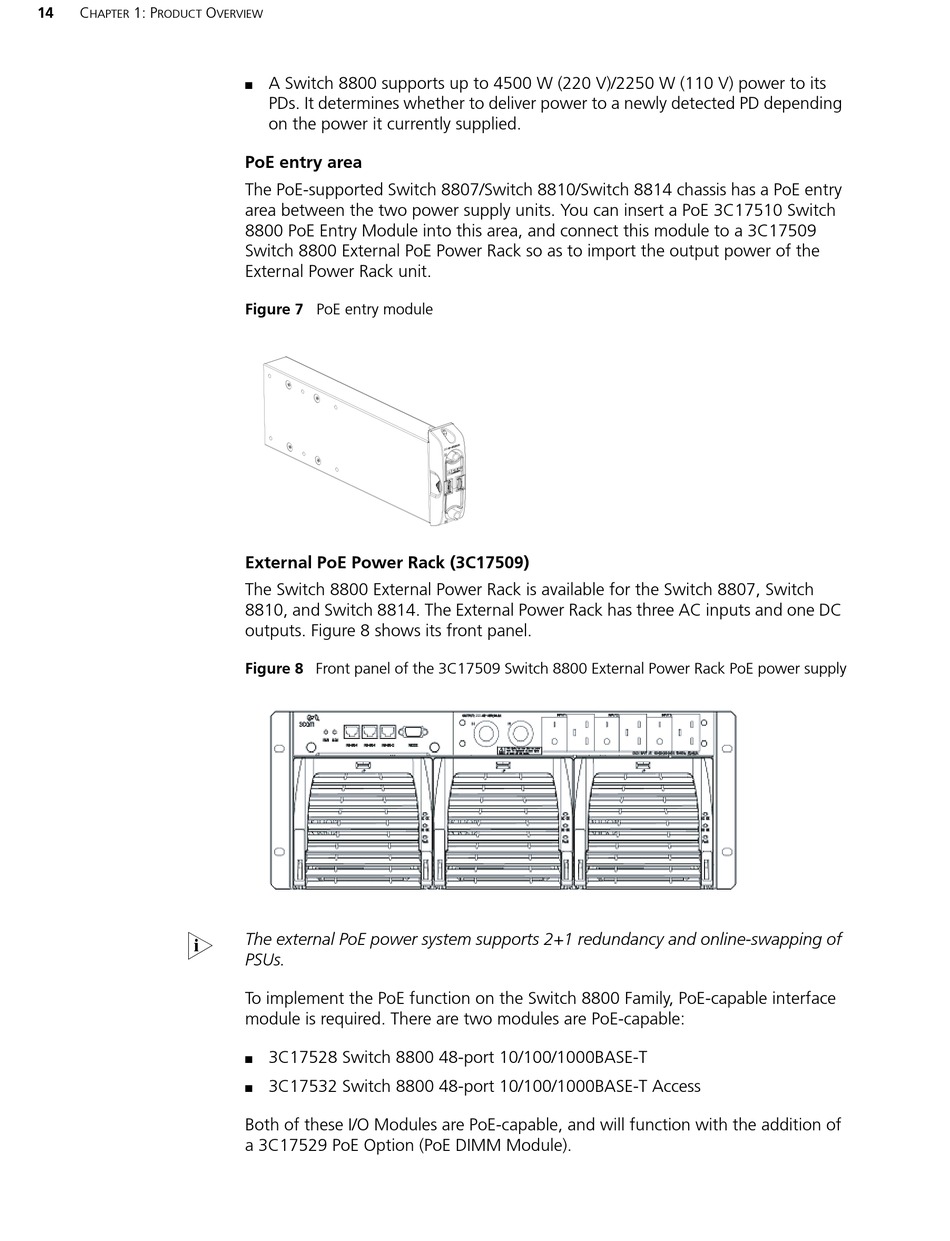

Figure 7 PoE entry module
External PoE Power Rack (3C17509)
The Switch 8800 External Power Rack is available for the Switch 8807, Switch
8810, and Switch 8814. The External Power Rack has three AC inputs and one DC
outputs. Figure 8 shows its front panel.
Figure 8 Front panel of the 3C17509 Switch 8800 External Power Rack PoE power supply
The external PoE power system supports 2+1 redundancy and online-swapping of
PSUs.
To implement the PoE function on the Switch 8800 Family, PoE-capable interface
module is required. There are two modules are PoE-capable:
3C17528 Switch 8800 48-port 10/100/1000BASE-T
■
3C17532 Switch 8800 48-port 10/100/1000BASE-T Access
■
Both of these I/O Modules are PoE-capable, and will function with the addition of
a 3C17529 PoE Option (PoE DIMM Module).
