Panel and LEDs
3C17533 24-port
1000BASE-X (SFP) IPv6
Module
Specifications
Panel and LEDs

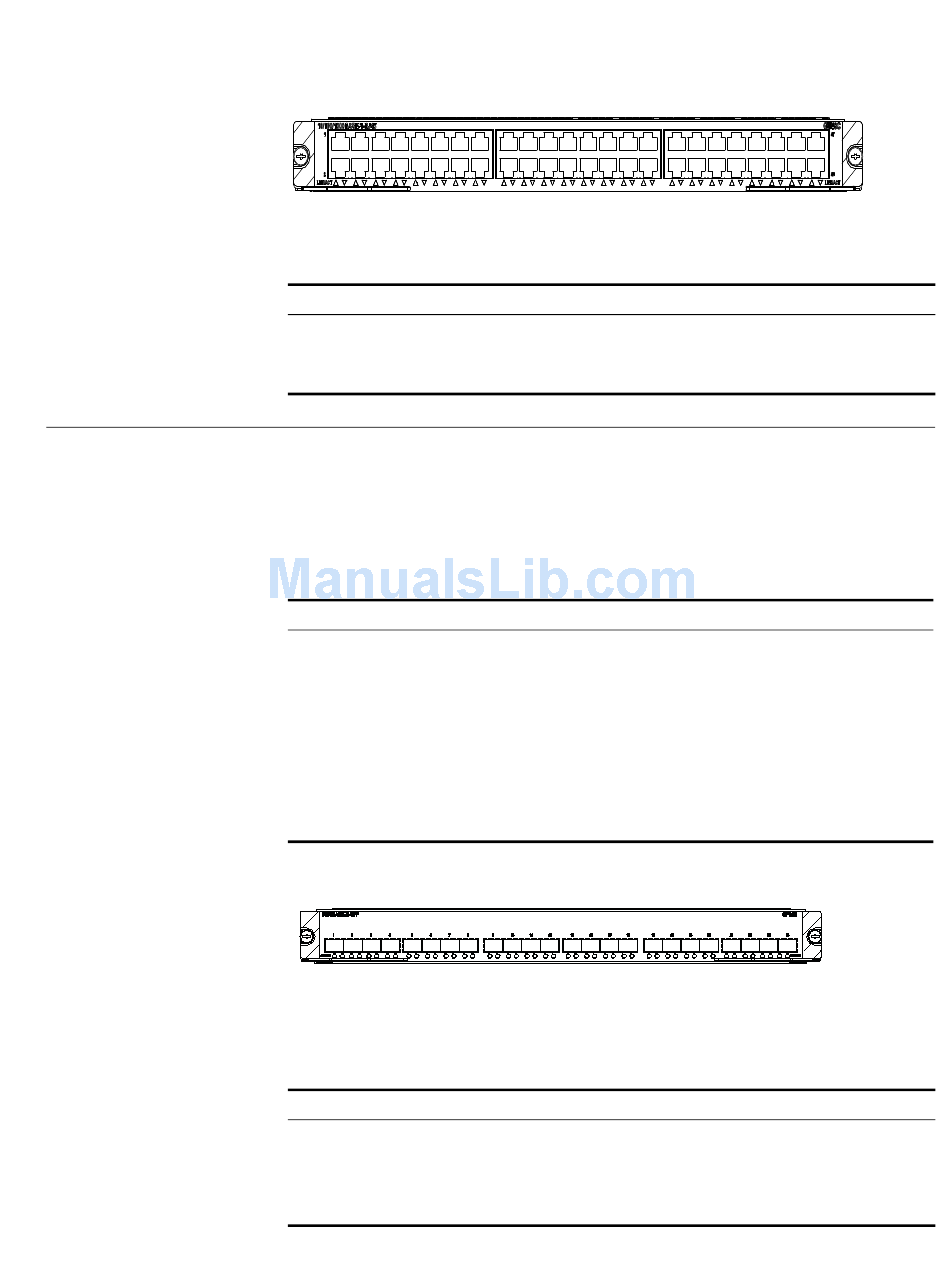

Figure 23 3C17532 module panel
The 3C17532 module has one LED for each port on their panel.
Table 49 1000 Mbps electrical port LEDs on the 3C17532 module
LED Status Meaning
LINK/ACT ON A link is present.
OFF No link is present.
Blinking Packets are being transmitted/received on the port.
This section provides specifications for the 24-port 1000BASE-X (SFP) IPv6 module
(3C17533).
The 3C17533 IPv6 module provides 24 1000BASE-X (SFP) ports.
Table 50 3C17533 module specifications
Item
CPU
Boot ROM
SDRAM
Physical dimensions (W x D)
Max power consumption
Number of ports
Connector
Rate
Figure 24 3C17533 module panel
The module has two LEDs for each 1000 Mbps optical port on its panel.
3C17533
Table 51 Port LEDs on the 3C17533 module
LED Status
LINK OFF
Green
ACT OFF
Orange blinking

3C17533 24-port 1000BASE-X (SFP) IPv6 Module

Specification
MPC8245
512 KB
128 MB/256 MB
366.7 x 340 mm (14.4 x 13.4 in.)
100 W
24
SFP/LC
1.25 Gbps
.
Meaning
No link is present.
A link is present.
No packets are transmitted/received on the port.
Packets are being transmitted/received on the port.
