44 C 2: I/O A
HAPTER AND
3C17546 Firewall
Application Module
3CR1754766 IPsec
Module
M
PPLICATION ODULES
Technical specifications
The 3C17546 Firewall Application Module provides eight Gigabit SFP/LC optical
ports.
Table 61 Technical specifications for the 3C17546
Item
CPU
Boot ROM
SDRAM
Physical dimensions (W x D)
Front panel

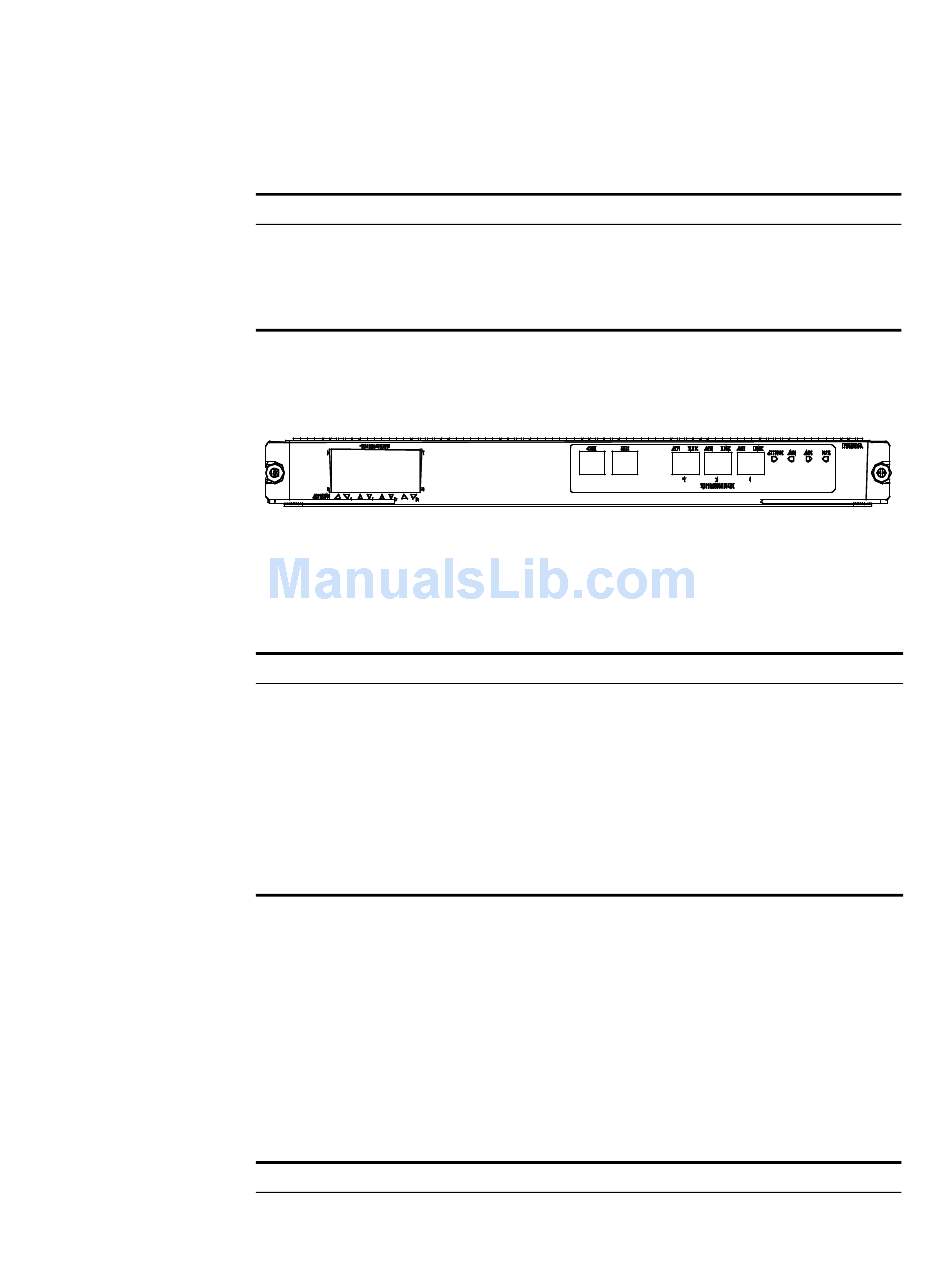

Figure 30 Front panel of the 3C17546
The 3C17546 provides eight 1000Base-X ports, one Console port, one AUX port,
three 10/100Base-TX ports and four status LEDs (ATTACK, ACT, ALM and RUN)
from left to right on the front panel.
Table 62 Status LEDs on the 3C17546
LED Color
ATTACK Red
ACT Green
ALM Red
RUN Green

Available cables

Table 66 on page 46 lists the available SFP modules and cable types for the
1000BASE-X SFP ports.
Technical specifications
The 3CR1754766 IPsec Module provides eight Gigabit SFP optical ports.
Table 63 Technical specifications for the 3CR1754766
Item
CPU
Boot ROM
Specifications
BCM1250
512 KB
1 Gbps
366.7 x 340 mm (14.4 x 13.4 in.)
Status Meaning
OFF The module is not attacked.
ON The module is attacked.
OFF The module is in standby mode.
Blinking The module is in active mode.
OFF There is no link alarm.
ON There is a link alarm.
OFF The module is faulty.
Blinking The module operates normally.
Specifications
BCM1250
512 KB
