Panel and LEDs
Matching Cable
3C17513 12-port
1000BASE-X (SFP)
Module
Specifications
Panel and LEDs
Table 28 3C17512 module specifications
Item
Rate

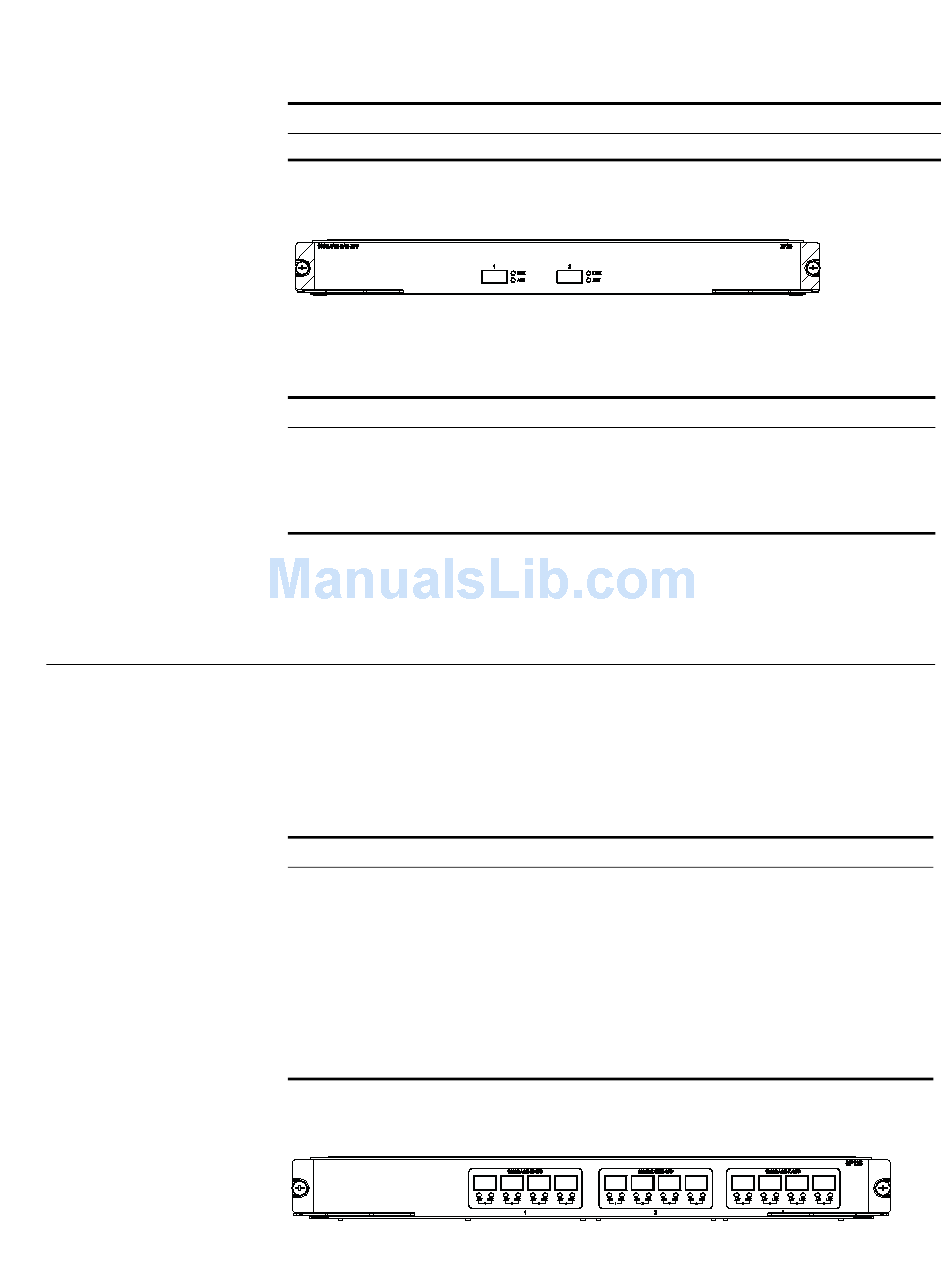

Figure 13 3C17512 module panel
The 3C17512 module has two LEDs for each optical port on its panel.
Table 29 1000 Mbps optical port LEDs on the 3C17512 module
LED Status
LINK OFF
Green
ACT OFF
Orange blinking
See Table 66 on page 46 for the XFP optical modules available for the 10 Gbps XFP
optical ports on the 3C17512 module and their matching cable types, which you
can select as required.
This section provides specifications for the 12-port 1000BASE-X (SFP) module
(3C17513)
The 3C17513 module provides 12 x 1000 Mbps SFP/LC optical ports.
Table 30 3C17513 module specifications
Item
CPU
Boot ROM
SDRAM
Physical dimensions (W x D)
Max power consumption
Number of ports
Connector
Rate
Figure 14 3C17513 module panel

3C17513 12-port 1000BASE-X (SFP) Module

Specification
10 Gbps
Meaning
No link is present.
A link is present.
No packets are transmitted/received on the port.
Packets are being transmitted/received on the port.
Specification
MPC8245
512 KB
128 MB
366.7 x 340 mm (14.4 x 13.4 in.)
55 W
12
SFP/LC
1.25 Gbps
31
