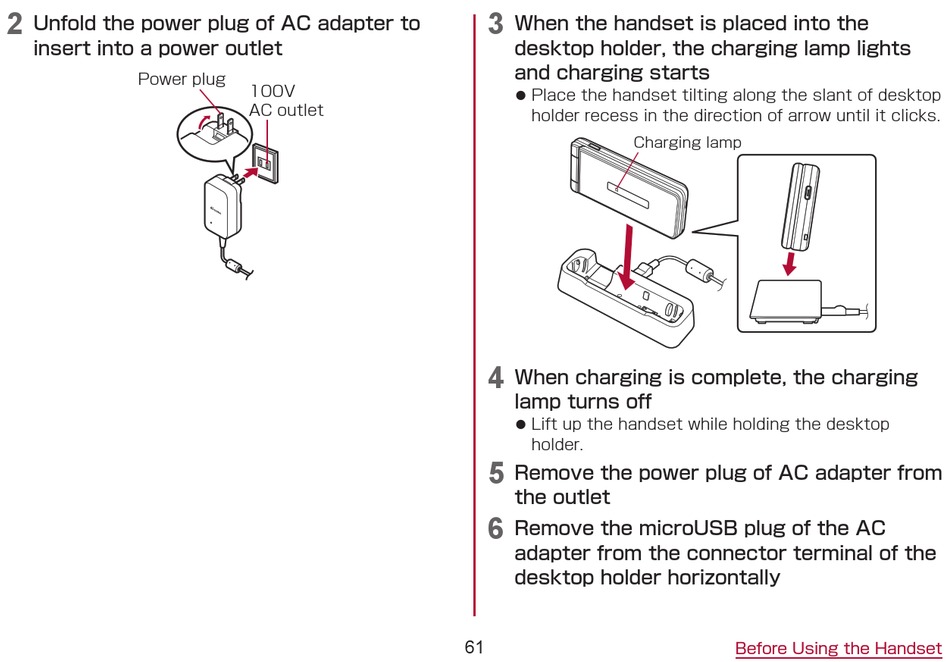

Sharp AQUOS SH-02L Instruction Manual page 63

2
Unfold the power plug of AC adapter to
insert into a power outlet
Power plug
100V
AC outlet
3
When the handset is placed into the
desktop holder, the charging lamp lights
and charging starts
z Place the handset tilting along the slant of desktop
holder recess in the direction of arrow until it clicks.
Charging lamp
4
When charging is complete, the charging
lamp turns off
z Lift up the handset while holding the desktop
holder.
5
Remove the power plug of AC adapter from
the outlet
6
Remove the microUSB plug of the AC
adapter from the connector terminal of the
desktop holder horizontally
61 Before Using the Handset
