Image 7.31: "Position control" screen
ID Index Name
386 CON_SCON_TFric
386 0 CON_SCON_TFric
386 1 CON_SCON_TFric
386 2 CON_SCON_TFric
386 3 CON_SCON_TFric
386 4 CON_SCON_TFric
387 CON_SCON_TFricSpeed
387 0 CON_SCON_TFricSpeed rpm Friction torque compensation: Speed limits
387 1 CON_SCON_TFricSpeed rpm Friction torque compensation: Speed limits
387 2 CON_SCON_TFricSpeed rpm Friction torque compensation: Speed limits
387 3 CON_SCON_TFricSpeed rpm Friction torque compensation: Speed limits
387 4 CON_SCON_TFricSpeed rpm Friction torque compensation: Speed limits
388 0 CON_SCON_TConst
Table 7.22: "Position controller - Feed-forward control" parameters (friction torque
compensation extract)
ID No.: 0842.26B.5-01 Date: 09.2020
7 Control
Unit Description
Dry friction comp., normalized to motor rated
torque
% Friction torque compensation settings
The table values 0 to 2 are always applicable
while table values 3 to 4 only take effect in the
acceleration range.
% Compensation value 1
% Compensation value 2
% Compensation value 3
% Compensation value 4
Friction torque compensation: Speed limits
% Friction torque compensation: Constant
(independent of direction)
The screen view can only be used to configure P 386[0] - CON_SCON_TFric. In
order to access all the friction torque compensation parameters, please switch to the
list view by using the "CTRL + L" key combination.

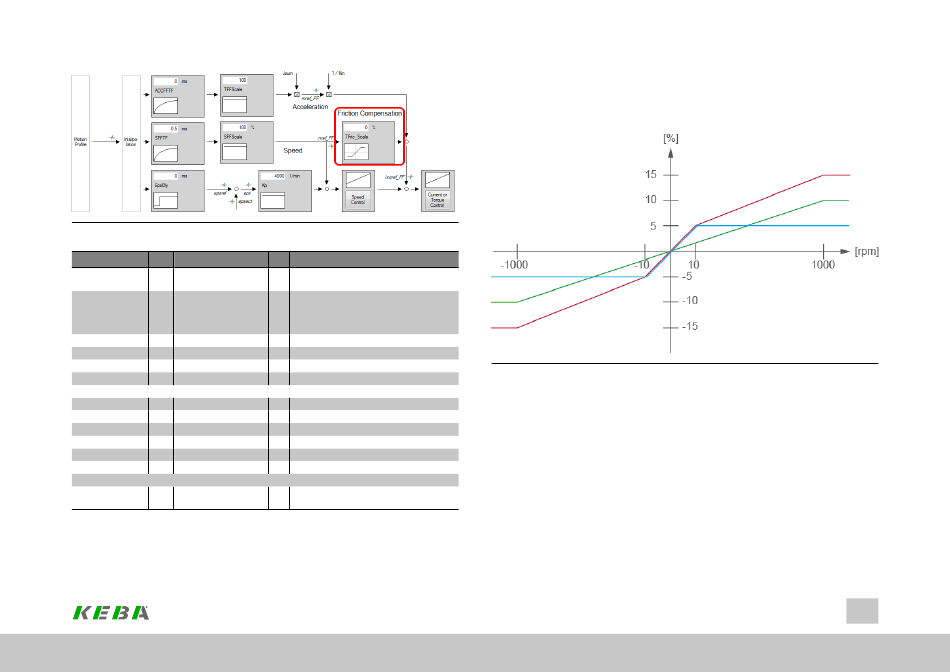

Image 7.32: Friction torque compensation for position control
The friction torque compensation is derived from the forward-fed speed nref_FF. It
has five basic functions, each having the Torque and Speed parameters. The basic
function runs proportionally up to the point (Speed, Torque), the function value
remains constant at higher speeds.
