Operation Operation

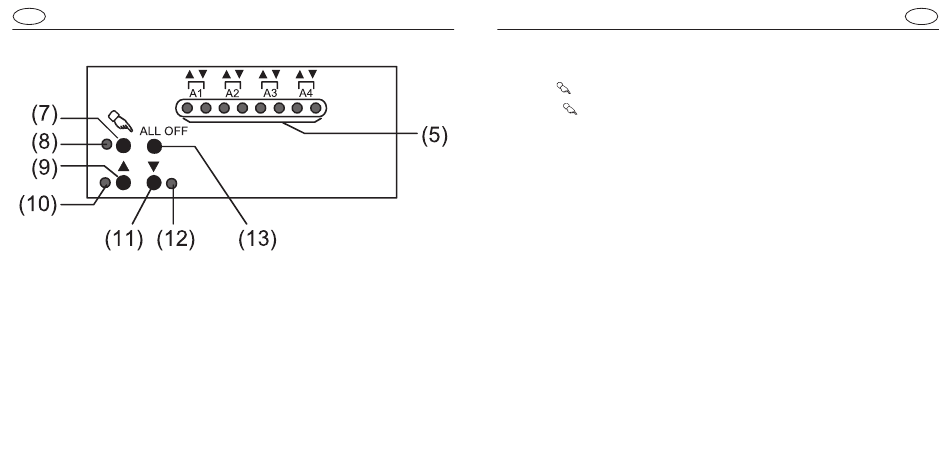

Controls:
(5) output status LEDs
(7) key
(8) LED
(9) key ▲
(10) LED ▲
(11) key ▼
(12) LED ▼
(13) key ALL OFF
Status indication
The status LEDs A1...A4 (Fig. 2, 5) indicate the output states.
– Off:
– On:
– Flashing slowly: output in manual control mode
– Flashing fast:
manual operation
on: permanent manual control mode
raise blind/shutter, stop
on: blind/shutter moving upwards, manual
control mode
lower blind/shutter, stop
on: blind/shutter moving down, manual operation
stop all blinds/shutters
output is off
output is on, up or down
output disabled in permanent manual control
mode
