Datamax I-Class Mark II Operator's Manual page 16

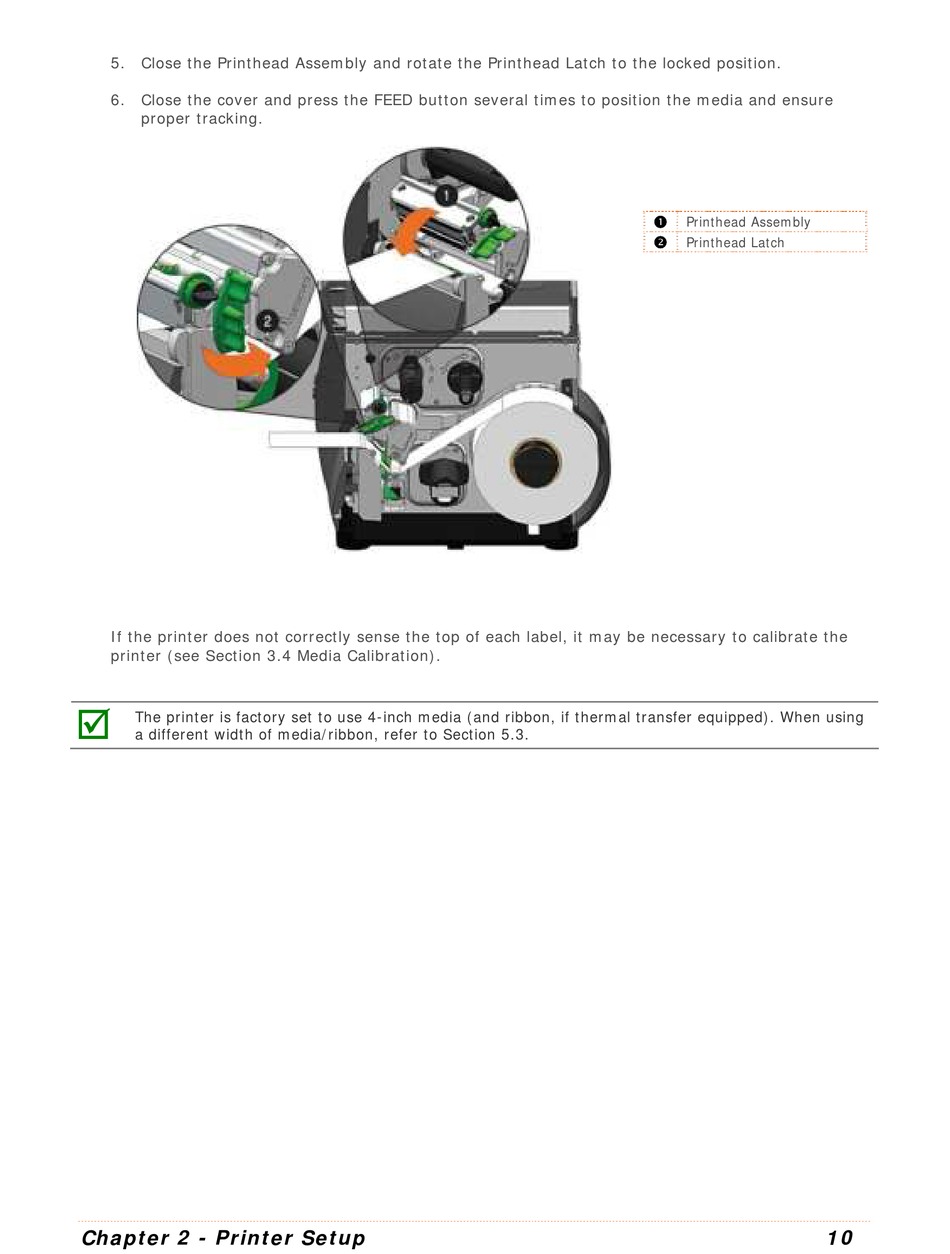

5. Close t he Print head Assem bly and rot at e t he Print head Lat ch t o t he locked posit ion.
6. Close t he cover and press t he FEED but t on several t im es t o posit ion t he m edia and ensure
proper t racking.
I f t he print er does not corr ect ly sense t he t op of each label, it m ay be necessary t o calibrat e t he
print er ( see Sect ion 3.4 Media Calibrat ion) .

The print er is fact ory set t o use 4- inch m edia ( and ribbon, if t herm al t ransfer equipped) . When using
a different widt h of m edia/ ribbon, refer t o Sect ion 5.3.
Ch a pt e r 2 - Pr int e r Se t u p

Print head Assem bly

Print head Lat ch
1 0
