Mechanical Installation
The 924 is a short to mid-range bar. Dependent on the application, the bar will be
mounted between 20mm and 150mm from the target surface.
The bar should be mounted securely, using all the M4 T-bolts provided with the bar.
Correct positioning of the bar is vital for effective static control. There must be no

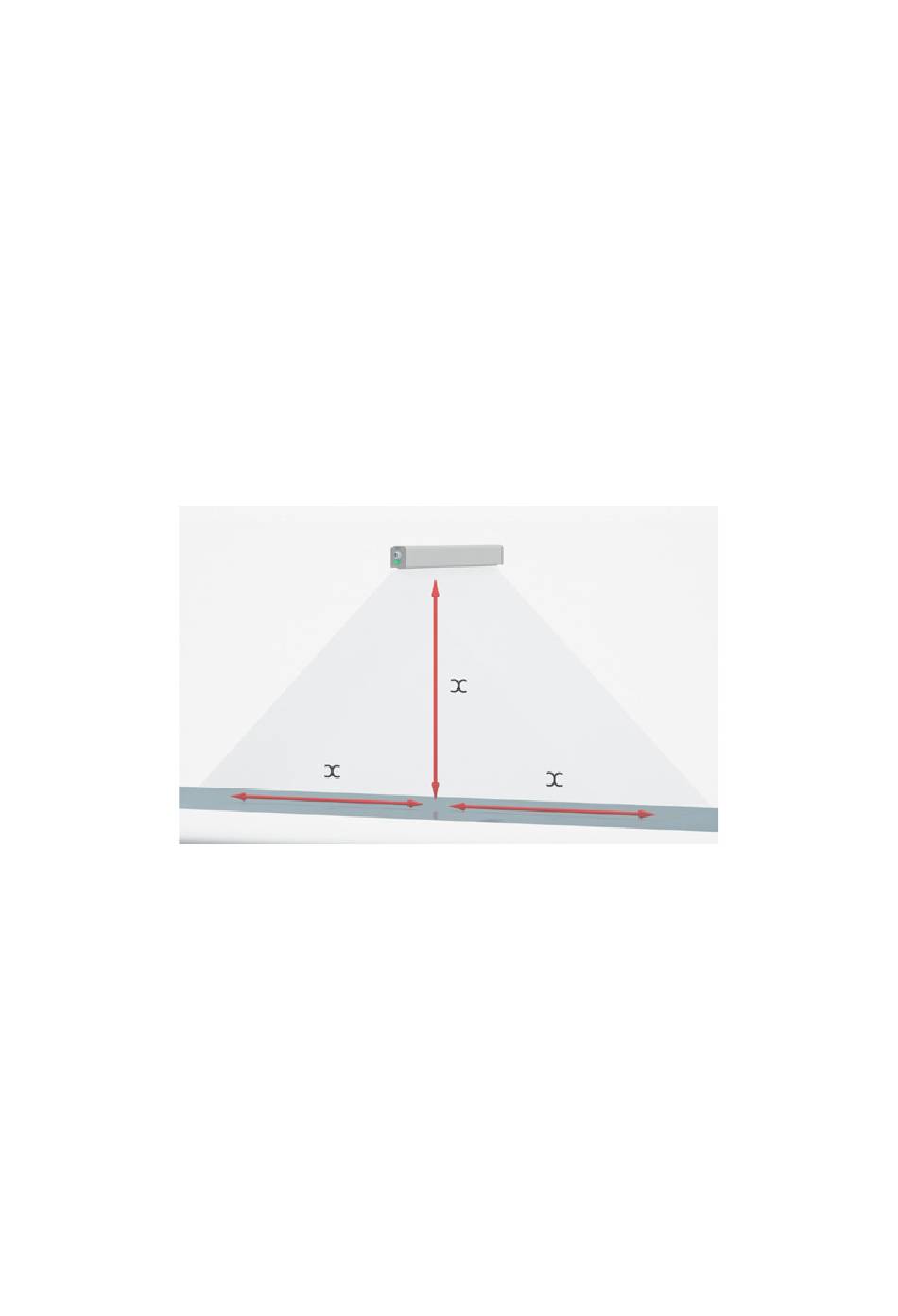

metallic objects or obstruction between the bar and the material. The diagram shows
the area that should be kept clear.
x
Where
lengths are equal.
