Operation - Meech Hyperion 924IPS Operating Manual

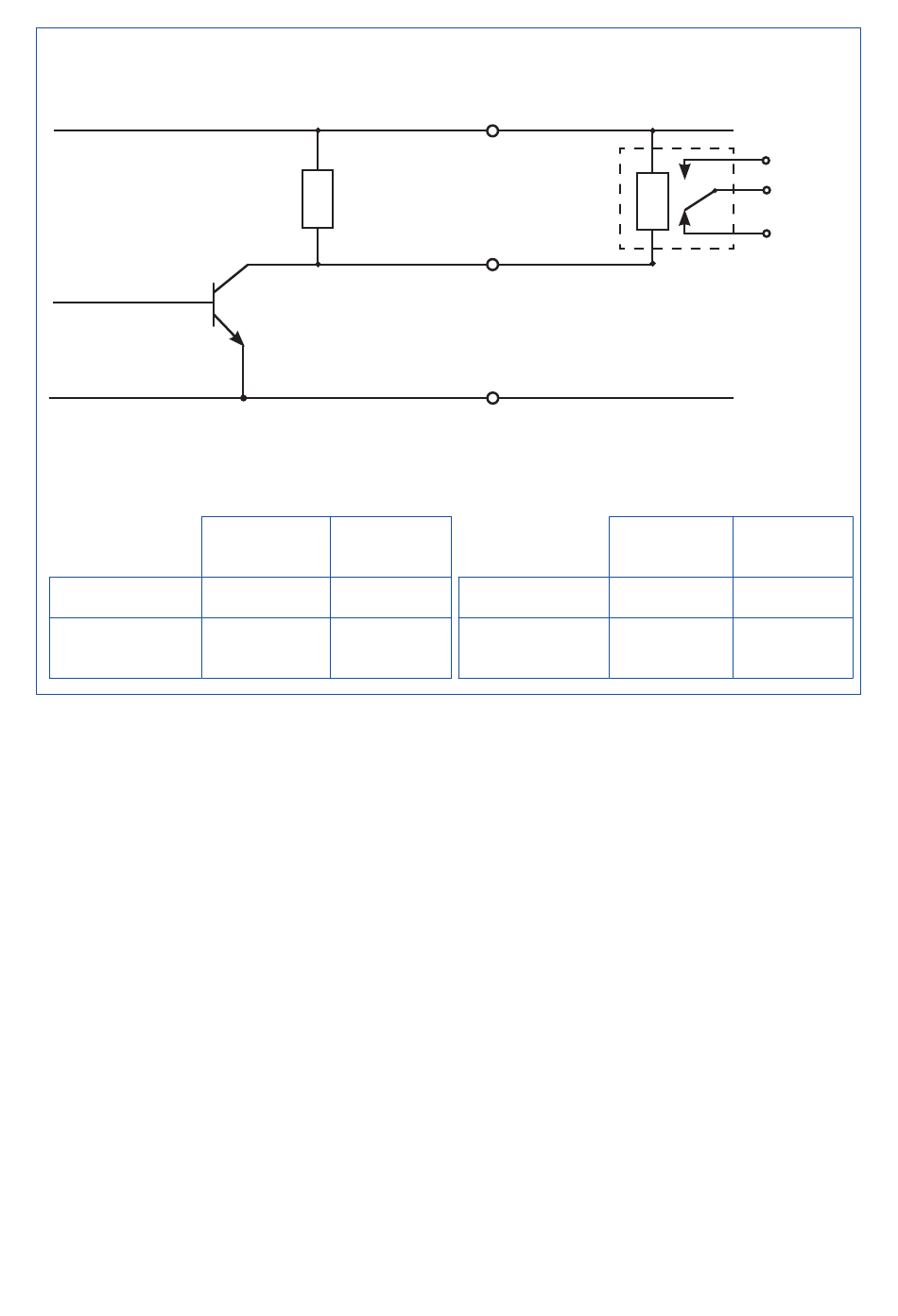

External Relay Wiring
Relay Power
Normally Open Output Matrix
OK (Green LED)
Dirty/Faulty
(Red LED)

Operation

Having connected the M8 connector to the bar, power up the 24V supply and check
for a green constant LED on the bar. This indicates that the bar is running correctly
with a good ion output.
Caution
Always turn off the 24V supply before connecting or disconnecting the M8 connector.
Failure to do so could result in stored charges giving a small electric shock.
Setting the Rate
The 924IPS features a variable output frequency. The frequency that should be set
depends on the ionising product and the distance to the target object.
12
10kΩ
Pull up
24V Supply 24V Supply
Power ON Power OFF
OFF OFF
ON OFF
1
2
I 20mA
max
3
Normally Closed Output Matrix
24V Supply
Power ON
OK (Green LED)
Dirty/Faulty
(Red LED)
24VDC
NO
COM
NC
0V
24V Supply
Power OFF
ON OFF
OFF OFF
