Meech Hyperion 924IPS Operating Manual page 12

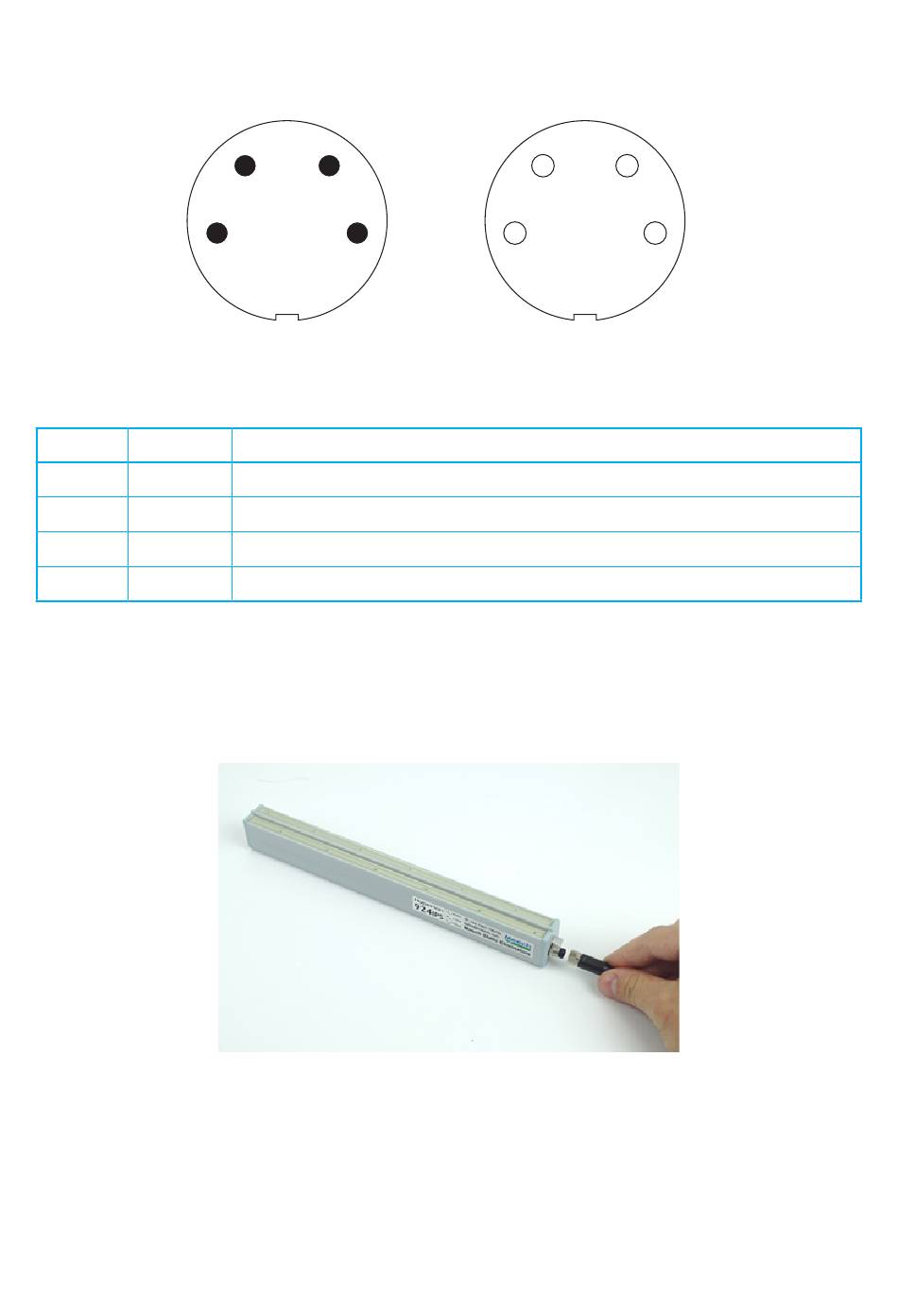

Connection to the 924IPS is via an industrial M8 4 Pin connector. With the following
pin-outs:
Pin Colour
1 Brown
2 White
3 Blue
4 Black
Connection using Meech 24V DC power supply
The switchmode power supply has a standard IEC C5 mains socket and a 2000mm
HT cable to M8 Connector. A break-out wire from the switchmode power supply
provides the Clean Pin Alert output signal.
Ensure The voltage supply is grounded to reduce the risk of damaging the 924.
10
2 4
1 3
Male connector on Bar
Function Specification
24V (21-27V)
Clean Pin Output 0V/24V
0V/ Ground
No connection
4 2
3 1
Female connector on Cable
