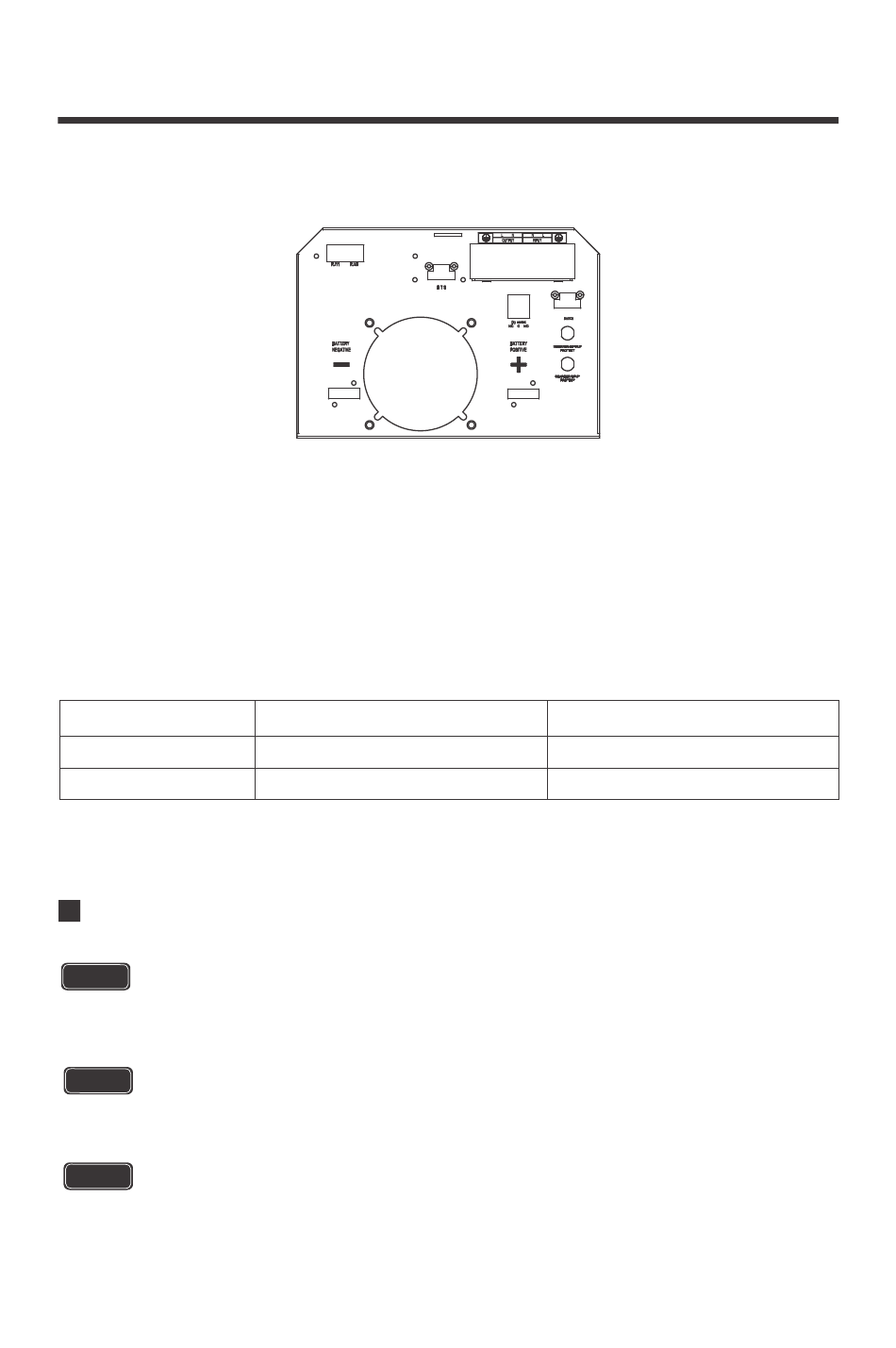

When installing DC cables, the following are recommendations:
Battery positive and negative cables should be as close to the battery as possible to
1.
minimize voltage loss and other possible effects.
2. Tie, tape, or twist cables together to reduce self-inductance.
3. Install all overcurrent devices on the positive cable.
Model
2000W
3000W

AC WIRING

Avoid switching on the inverter with the load (electronic devices) already switched
CAUTION
on. This may trigger an overload since some electronic devices have an initial high
power surge to start.
When switching off the inverter, turn off the electronic devices first. Although the
CAUTION
inverter is off, the capacitors will still have a charge, so the DC and AC terminals must
be disconnected if altering the circuitry.
Ensure all sources of DC power (i.e., batteries, solar, etc) andAC power (utility power
WARNING
or AC generator) are de-energized (i.e., breakers opened, fuses removed) before
proceeding—to prevent accidental shock
Recommended Fusing
200A
300A
Recommended Wire Sizing
2/0
4/0
12
