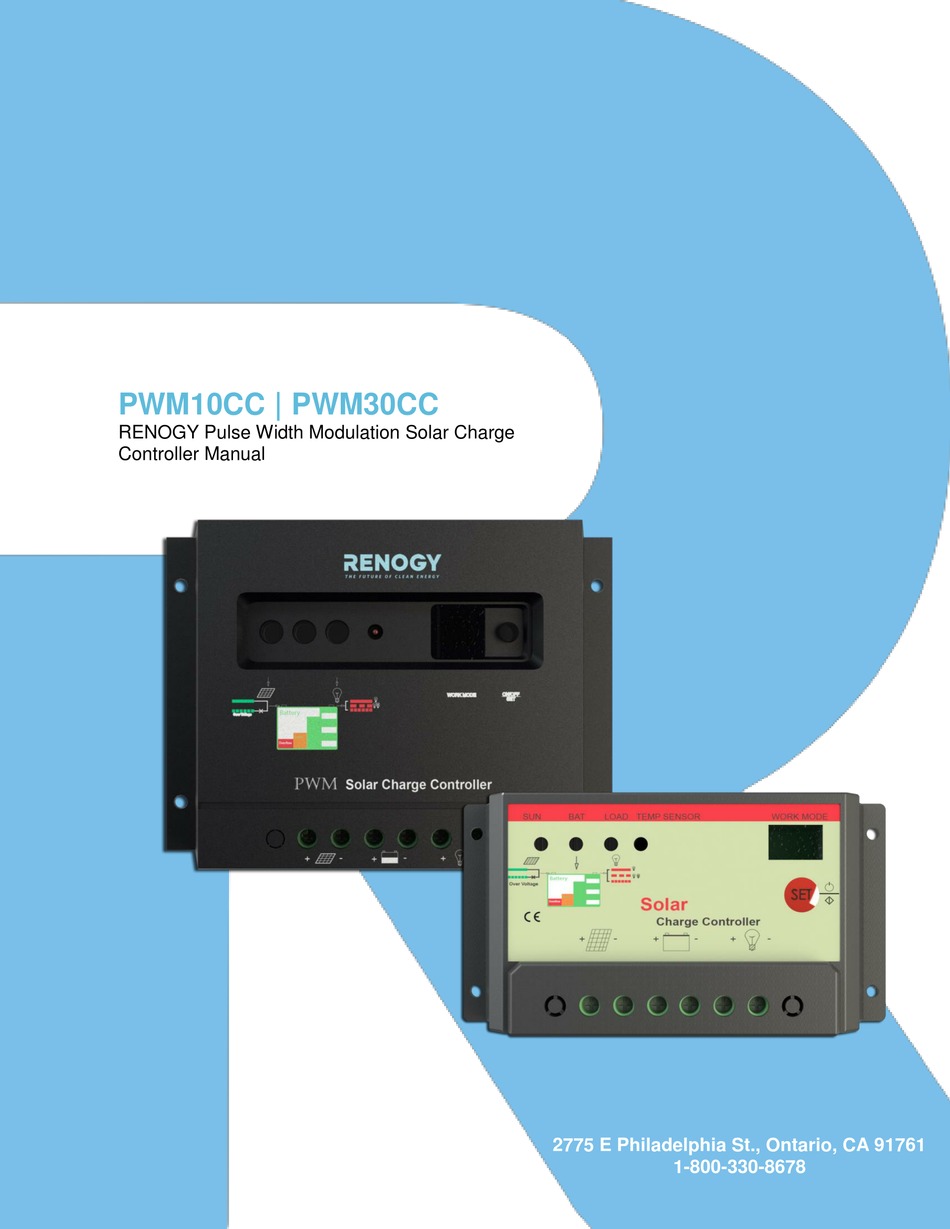

- Page 1 PWM10CC PWM30CC RENOGY Pulse Width Modulation Solar Charge Controller Manual 2775 E Philadelphia St., Ontario, CA 91761 RENOGY is a trademark of RNG Group Inc. 2015 RNG Group Inc. All rights reserved. 1-800-330-8678...
- Page 2 The maximum rated current is 10 amps for the PWM10CC and 30 amps for the PWM30CC. However, for safety, it’s recommended that the loads do not exceed 80% of this rating. If the orange or red LED battery indicator light turns on, the battery capacity is low and needs to be charged before using any of the connected loads again.
- Page 3 2. Load Control Options Press and hold the SET button for about 5 seconds until the display starts flashing. Press the SET button once again to select the one of the desired control options shown in Table 1. When done selecting the desired option, wait until the display stops flashing. The load LED will come on, which will indicate that you have selected an option.
- Page 4 4. Troubleshooting 1. Charging LED indicator turns off during the daytime a. The green LED should be ON during the daytime. b. Check to make sure the correct battery is being used. c. Check all wiring connections to make sure they are in their designated locations and make sure that there are no loose connections.
- Page 5 5. Inspection and Maintenance It is highly recommended that each user inspect the charge controller at least once per year to ensure longevity and optimal performance. Please follow this procedure: 1. Confirm that the correct battery type has been used. 2.
