Renogy
Pure Sine Wave Inverter
24V 2000W
RIV2420P2-12S
VERSION A0
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RIV2420P2-12S and is the answer not in the manual?

Questions and answers

steve
March 26, 2025

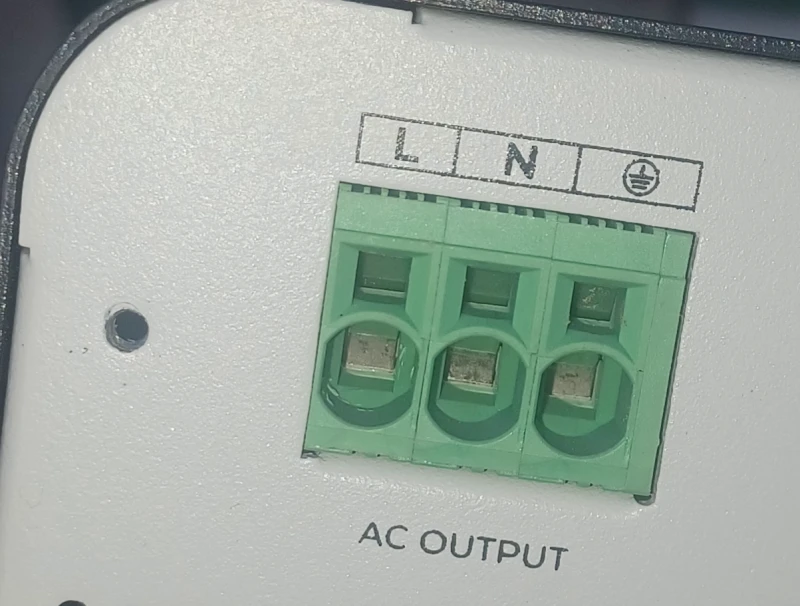

how do i connect to the high output ac terminal after removing the cover plate. On line tech said insert tool??? into top hole so wire can be inserted. Doesn't seem to work.

User image 67e4260301191
1 comments:
Mr. Anderson
March 26, 2025

To connect to the high output AC terminal on the Renogy RIV2420P2-12S after removing the cover plate, follow these steps:

1. Remove the Cover Plate: Unscrew and remove the two screws securing the protective cover over the terminals.
2. Identify the Terminals:
- Left: Live (L)
- Middle: Neutral (N)
- Right: Ground (G)
3. Use Proper Wires: Use 10 AWG recommended AC cables (Black, White, Green).
4. Secure the Connections: Insert the wires into their respective terminals and ensure a firm connection.
5. Reattach the Cover Plate: Secure the cover back in place using the screws.

Ensure all connections are tight and properly insulated before powering on the inverter.

This answer is automatically generated

Summary of Contents for Renogy RIV2420P2-12S

  • Page 1 Renogy Pure Sine Wave Inverter 24V 2000W RIV2420P2-12S VERSION A0 USER MANUAL...
  • Page 2: Table Of Contents

    Step 4. DC Wiring ..............................0 9 Step 5. AC Wiring..............................1 .1 Power On/O! ................................1 .1 LED Overview & Troubleshooting ........................1 3 Pure Sine Wave ..............................1 . 4 General Safety Information ..........................1 . 4 Specifications ..............................1 . 5 Renogy Support ..............................1 . 6...
  • Page 3: Before Starting

    Renogy and its licensors. The User Manual may not be modified, reproduced or copied in whole or in part without the prior written permission of Renogy and its licensors. The registered trademarks in the user manual are the property of R enogy. Unauthorized use...
  • Page 4: Symbols Used

    NOTE: Indicates an important step or tip for optimum performance. Introduction The Renogy 24V 2000W Pure Sine Wave Inverter (hereafter referred to as the inverte r) is perfect for most o!-grid systems, whether it’s for a van, a semi-truck, an RV, a ca bin, or any other remote location that requires power.
  • Page 5: What's In The Box

    What’s In the Box? Renogy Pure Sine Wave Inverter Renogy 24V 2000W 24V 2000W RIV2420P2-12S VERSION A0 Pure Sine Wave Inverter × 1 USER MANUAL 2000W:Cables (3 AWG @ 3ft) × 2 User Manua l × 1 RMS-P2 Wired Remote RJ12 Ethernet Cable Control ×...
  • Page 6: Get To Know The Pure Sine Wave Inverter

    Get to Know the Pure Sine Wave Inverter AC Side View Power LED USB Power Port GFCI LED High Output AC Terminals Fault LED Mounting Hole ON/OFF/REM Switch AC Outlet Remote Control Terminal AC Output Frequency Part Description ON/OFF/REM Switch Turns the inverter ON, OFF, or REMOTE.
  • Page 7: Dimensions

    DC Side View Cooling Fans Ground, M4 Positive (+) DC Input, M8 Negative (-) DC Input, M8 Dimensions 16.93 in (430.3 mm) 3.75 in (95.3 mm) 8.99 in (228.4 mm) Dimension tolerance: ±0.2 in (0.5 mm)
  • Page 8: System Setup

    System Setup AC Side View Sub-panel AC Loads Loads Wired Remote (optional) AC Loads (USB) Control RMS-P2 Live wire (AC) Ground Remote control Neutral wire (AC) DC Side View Battery Fuse (150A) Ground 24V Battery Positive (DC) Negative (DC) Ground The 2000W inverter requires a 150A battery fuse.
  • Page 9: Size A Battery Bank

    Size a Battery Bank Battery types and capacity relate to the overall inverter performance. To size a prope r battery bank, you need to identify the loads that you will be utilizing, as well as an estimate duration (hours/day) you will be using the load. The inverter is only compatible with 24V battery banks, and oversizing should be considered due to e#ciency losses.
  • Page 10: Step 2. Plan A Mounting Site

    Step 2. Plan a Mounting Site Follow the guidelines below: Cool, dry, well-ventilated area The inverter must be installed in a site where the fans are not blocked or where they a re not hit directly by the sun. The site should be free of any kind of moisture with a clearance of a t least 10 inches around the inverter for adequate ventilation.
  • Page 11: Step 3. Ground

    Step 3. Ground If available, the chassis ground lug should be connected to a ground point such as a vehicle chassis or boat grounding system. In fixed locations, connect the ground lug to earth ground. The connections to ground must be tight and against bare metal. Grounding is highly recommended for both when using the inverter in a mobile application, such as an RV, or in a building.
  • Page 12 Step 1: On the AC side, set the ON/OFF Switch to the OFF position. Step 2: On the DC side, remove the protection caps. Step 3: Unscrew Positive and Negative DC Input Terminals, connect a battery bank to the terminals, and tight the terminal screws. Torque: 14(±0.5) N·m First connect the negative Cables...
  • Page 13: Step 5. Ac Wiring

    Step 5. AC Wiring AC Outlets You can plug your AC loads directly into the AC Outlets on the inverter’s AC side. High Output AC Terminals You can also permanently connect the AC output from the AC hardwire terminal through the High Output AC Terminals into a load sub-panel or additional AC outlets powered by the 2000W inverter.
  • Page 14 How to Properly Install Cable Clamps? The AC Output Port with cable clamps to ensure that the wiring connections remain secure and do not come loose due to vibrations. Step 1: Loosen the screws on a cable clamp with a Phillips Screwdriver. Step 2: Lift the clamp, and run the cables through the clamp.
  • Page 15 When the inverter turns on, it is normal to see the fans run for a second and hear a beep. Avoid powering on the inverter with the load (electronic devices) already switched on. This may trigger an overload since some electronic devices have an initial high power surge to start.
  • Page 16: Led Overview & Troubleshooting

    Renogy via renogy.com/ contact-us for further assistance. Disconnect appliances, and No sound and use the ON/OFF/Remote the inverter is GFCI tripped switch to reset the inverter. For further assitance, contact Renogy technical support service at https:/ / www.renogy. com/contact-us -14-...
  • Page 17: Pure Sine Wave

    Pure Sine Wave The inverter outputs a pure sine wave similar to the waveform of the grid power. In a pure sine wave, the voltage rises and falls in a smooth fashion with very low harmonic distortion and c leaner utility-like power.
  • Page 18: Specifications

    Do not expose the unit to rain, moisture, snow, or liquids of any type. Specifications General Data Model RIV2420P2-12S Output Waveform Pure Sine Wave AC Terminals 2x AC Socket & T erminal Block...
  • Page 19: Renogy Support

    Questionnaire Investigation To explore more possibilities of solar systems, visit Renogy Learning Center at: renogy.com/learning-center For technical questions about your product in the U.S., contact the Renogy technical support team through: renogy.com/contact-us 1(909)2877111 For technical support outside the U.S., visit the local website below: Canada ca.renogy.com...
  • Page 20 Save 105 gallons of water from being consumed Renogy Power PLUS Renogy Power Plus allows you to stay in the loop with upcoming solar energy innovations, share your experiences with your solar energy journey, and connect with like-minded people who are changing the world in the Renogy Power Plus community.
