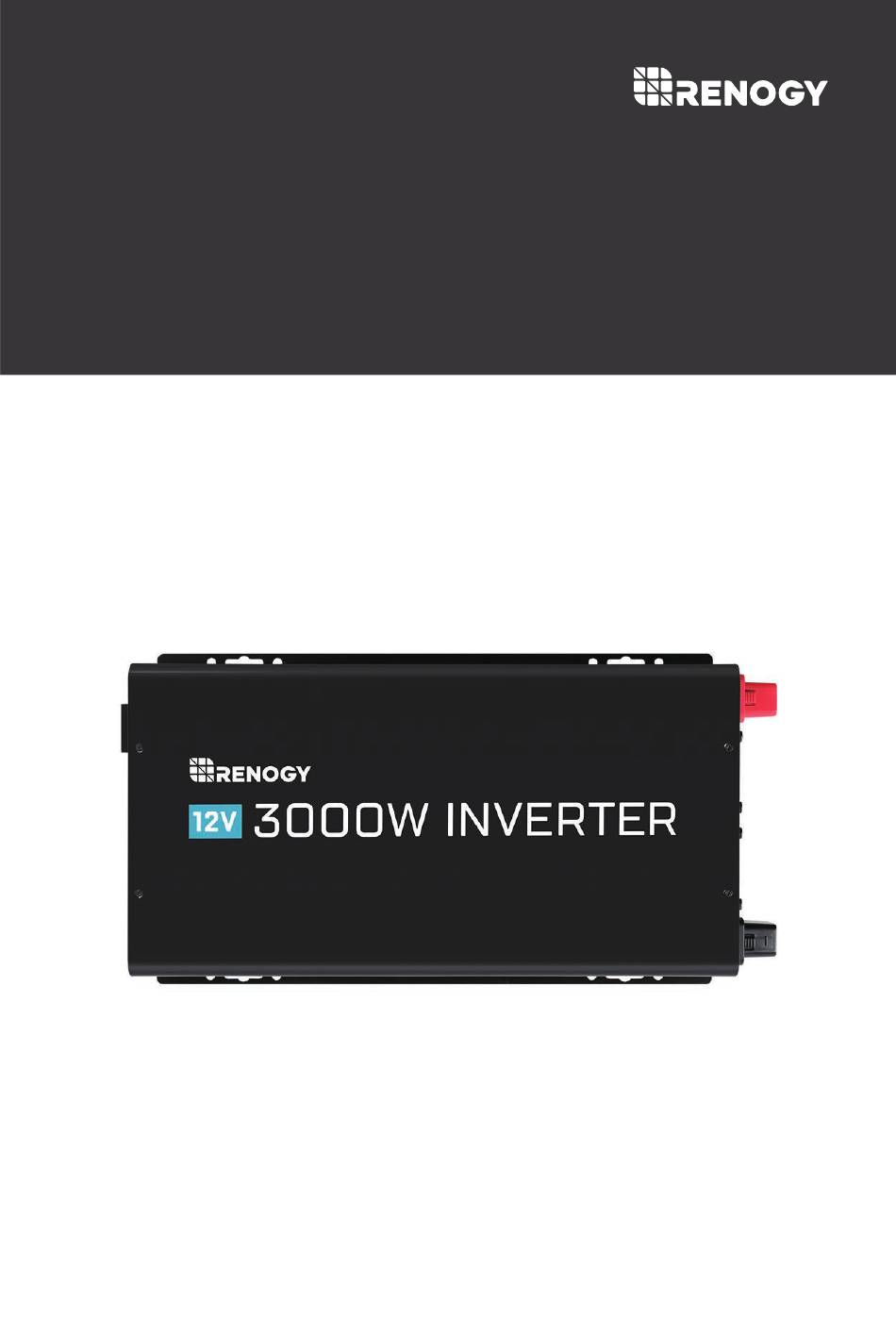

- Page 1 BATTERY POWER INVERTERS 1000W | 2000W | 3000W Version 2.1...
- Page 2 Important Safety Instructions Please save these instructions. This manual contains important safety, installation, and operating instructions for the inverter. The following symbols are used throughout the manual: Indicates a potentially dangerous condition. Use extreme caution when WARNING performing this task. Indicates a critical procedure for safe and proper operation of the inverter.
- Page 3 Battery Safety Do NOT let the positive (+) and negative (-) terminals of the battery touch each other. Use Sealed Lead Acid, AGM, Flooded, Gel, or Lithium batteries which must be deep cycle. Explosive battery gases may be present while charging. Be certain there is enough ventilation to release the gases.
-
Page 4: Table Of Contents
Table of Contents General Information Product Description Product Overview Identification of Parts (AC Side) Identification of Parts (DC Side) Dimensions Included Components Optional Components Installation Location Recommendations Sizing your Battery Bank Wiring Grounding DC Wiring AC Wiring Fusing Operation AC Side Operation LED Overview Wired Remote DIP Switches... -
Page 5: General Information
Power Saving Mode to conserve energy Pure Sine Wave The Renogy Power Inverters output a pure sine wave similar to the waveform of the grid power. In a pure sine wave, the voltage rises and falls in a smooth fashion with very low harmonic distortion and cleaner utility-like power. -
Page 6: Product Overview

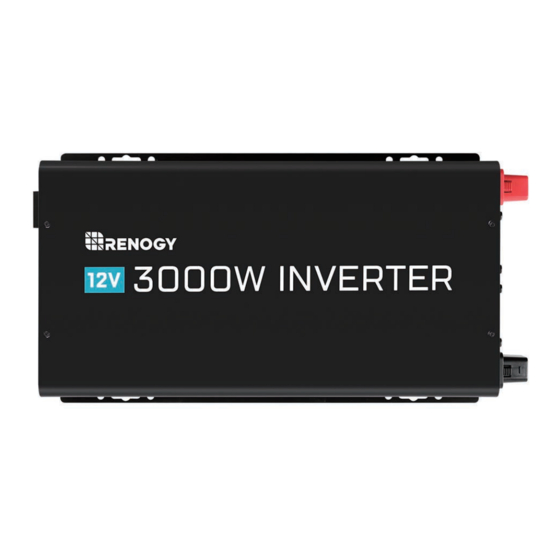

Product Overview Identification of Parts (AC Side) 50Hz AC OUTPUT AC OUTPUT 60Hz Nor. COMM. REMOTE Figure 1: 3000W Inverter 1. Power LED (Green) - Solid Green indicates normal power on operation. Flashing Green indicates inverter is powered in ECO power saving mode and is pulsing. 2. -
Page 7: Identification Of Parts (Dc Side)
Identification of Parts (DC Side) Figure 2: 3000W Inverter 1. 12VDC M8 Negative Battery Terminal - Negative 12V DC is written above the terminal. 2. Ventilation Fans - Automatic fans that dissipate heat inside the inverter. They that are temperature controlled. 3. -
Page 8: Dimensions
Dimensions [13.4in] 340.0mm [2.8in] [11.4in] 290.0mm 71.0mm 54,2 1000W 29,3 [0.1in] 1.5mm [15.8in] 401.0mm [3.8in] [12.4in] 351.5mm 96.0mm 2000W [9.5in] 242.3mm 3000W [18.6in] 472.5mm [3.8in] [16.7in] 423.5mm 96.0mm [11.4in] 290.3mm... -
Page 9: Included Components
Included Components The PGH1 inverter will include a wired remote controller that can power the inverter ON or OFF. In addition, the 1000W and 2000W models will include inverter cables. Inverter Model Gauge 1000W 4 AWG 2000W 4 AWG * 2 3000W Cables not included. -
Page 10: Installation
Installation Make sure inverter is in the off position before connecting anything. WARNING Do not over tighten the terminals. This could potentially damage the unit. CAUTION Location Recommendations Never install the inverter in a sealed enclosure with flooded batteries. Gas can WARNING accumulate and there is a risk of explosion. -
Page 11: Sizing Your Battery Bank
Sizing your Battery Bank Battery types and capacity relate to overall inverter performance. To size a battery bank, you need to identify the loads that you will be utilizing, as well as an estimate (hours/day) you will be using the load. The inverter is only compatible with 12V battery banks and oversizing should be considered due to efficiency losses. -
Page 12: Wiring
DC Wiring The Renogy Pure Sine Wave Inverters are suitable for 12V battery bank systems ONLY. WARNING Not following the minimum DC requirement will cause irreversible damage to the unit. - Page 13 Make sure your battery bank is rated for 12V. Batteries that are 6V may be put in series to create a 12V battery bank. 12V batteries may be connected in parallel prior to connecting to the inverter DC terminals. When joining batteries together, they must be the same chemistry, voltage, and are also recommended to be the same level prior to combining.
- Page 14 1.Flip inverter power to OFF position (on AC side)
- Page 15 2.Remove Cap, then unscrew inverter terminals and connect battery connections. Then tighten.
-
Page 16: Ac Wiring
AC Wiring All AC Wiring should be approved by an electrician for RV or Marine applications. Do not WARNING connect the AC Output to a power source like a generator/shore power. Irreversible damage may occur. Do not over-tighten the screws in the AC Terminal Cover or Terminal Block. The NOTE recommended torque for the M3 terminal cover screws is .64 ~ 1.0N-m / 5.7 ~ 9.1 lbf-in The recommended torque for the M4 terminal block is Max 0.98N-m / 8.7 lbf-in... -
Page 17: Fusing
Fusing The following are recommended fuse minimums: Model Fuse Minimum AWG Minimum 1000W 100A 4 AWG 2000W 200A 2 AWG 3000W 300A... -
Page 18: Operation
Operation Assuming proper connection, the inverter is now ready for use. To operate using the AC Outlets: AC Side Operation 1.Connect electronic devices to electrical socket(s) on inverter. Flip inverter power to ON position (on AC side) 2. When finished, switch AC devices off FIRST, then turn off inverter switch 3. -
Page 19: Wired Remote
Wired Remote The wired remote will only operate when REM mode is pressed on the inverter. CAUTION The wired remote control is an alternative way to power on or off your inverter from a distance. To operate: 1.Make sure the push button on the wired remote is not pressed 2.Flip the inverter switch to REM mode 3.Connect the remote wire to the REMOTE port on the inverter model 4.To confirm success, press the power button to power on the inverter via remote. -
Page 20: Dip Switches
DIP Switches The DIP switches allow you to control the inverter’s ac output frequency or power up in an ECO power saving mode. For DIP switch changes to take effect you must: 1.Shut down the inverter via power button or remote 2.Make the desired dip switch change 3.Power On the inverter via power button or remote 4.DIP Switch changes have taken effect... -
Page 21: Troubleshooting
Troubleshooting Indicator Potential Issue Troubleshoot The battery is depleting faster than it is being charged. Lower Battery the inverter load power or disconnect the load to let the Undervoltage Alarm Fault LED Lit battery charge up to 12.0V at least. and Alarm The battery is at a higher than normal voltage, perhaps from Beeps... -
Page 22: Technical Specifications
Technical Specifications Model PGH1-10111S PGH1-20111S PGH1-30111S Continuous Power 1000 W 2000 W 3000 W Input Voltage 12V DC Output Voltage 110VAC ± 10% Peak Surge 2000 W 4000 W 6000 W Efficiency >90% Frequency 50 Hz / 60Hz (adjustable) < 3% Linear Load Total Harmonic Distortion <... - Page 23 Wired Remote Control List dimensions 2.8 x 4.3 x 1.3 in / 70 x 110 x 31.8 mm Wire length 16.4 ft This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 24 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. 2775 E Philadelphia St, Ontario, CA 91761, USA 909-287-7111 www.renogy.com support@renogy.com 苏州高新区科技城培源路1号5号楼-4 400-6636-695 https://www.renogy.cn support@renogy.cn https://www.renogy.jp supportjp@renogy.com https://ca.renogy.com supportca@renogy.com https://au.renogy.com supportau@renogy.com https://uk.renogy.com supportuk@renogy.com https://de.renogy.com supportde@renogy.com...
