SunSetter EasyShade Replacement page 3

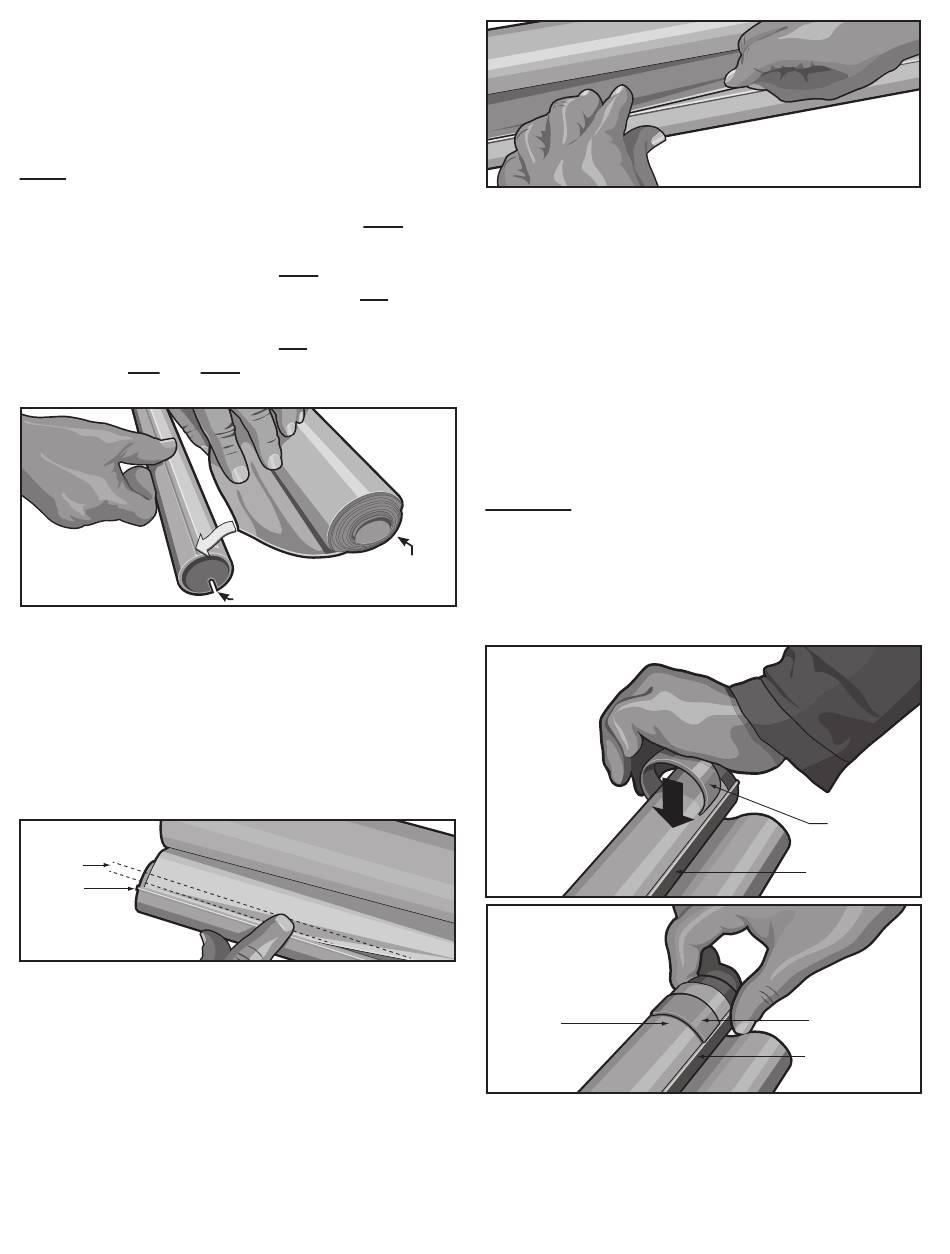

15. Pull the Leading Bar out of the old Fabric and set
aside for use in reassembly. (Skip this step if the same
Fabric is to be reattached to the Roller Bar.)
16. Place the Replacement Fabric on your work area,
and orient the Fabric as shown in Figure 10.
NOTE: The Roller Bar has a Notch cut into one end,
this is the end of the Roller Bar that the Motor will
be installed. If your Motor will be on the right when
you face your installed EasyShade, then the Notch
in the Roller Bar will be on the right for the Fabric
installation. If your Motor will be on the left when
you face your installed EasyShade, then the Notch
in the Roller Bar will be on the left for the Fabric
installation. Left and right references are as you face
the Roller Bar, with the Fabric on the opposite side.
Figure 10
17. Align the Fabric with the Roller Bar, so that it is
centered on the Roller Bar end to end.
18. Carefully remove the backing from the Double
Sided Tape you installed on the Roller Bar.
19. Starting at either end, align the edge of the Fabric
with the Raised Guide on the Roller Bar.
See Figure 11.
Double
Sided
Tape
Raised
Guide
Roller Bar
Figure 11
Note: You may choose to use tape or have your
helper temporarily hold the Fabric in place on the
Roller Bar as you complete the following step.
20. Press the Fabric onto the Double Sided Adhesive
Tape to secure it in place. Move slowly down the
Roller Bar until you have the replacement Fabric
secured to the Roller Bar. See Figure 12.
Fabric Rolled on
Notched End the Leading Bar
of Roller Bar
Fabric
Note: One (1) Clip will be installed over the Fabric
on each end of the Roller Bar, approximately one
(1) inch from the outer edge of the Roller Bar. All
remaining Clips will be installed equally distanced
along the Roller Bar, between the two (2) End Clips.
See Figure 13.
Fabric
21. Install the existing or supplied Spring Clips over
the Fabric, onto the Roller Bar. Align one end of the
Clip with the Raised Guide, then using the palm of
your hand, press the Spring Clip down, onto the
Roller Bar. See Figure 13 and 13a.
WARNING: THE SPRING CLIPS COULD HAVE
SHARP EDGES. TO PREVENT THE RISK OF INJURY,
USE SAFETY GLOVES WHEN REMOVING OR
REPOSITIONING THE SPRING CLIPS ON THE ROLLER
BAR. FAILURE TO DO SO COULD CAUSE PERSONAL
INJURY.
Figure 13
Fabric
Figure 13a
Spring Clip
Removal
3
Figure 12
Figure 11
Spring
Clip
Roller Bar
FIGURE X
Spring Clip
Installation
Roller Bar
FIGURE X
Spring
Clip
Roller Bar
Roller Bar
FIGURE X
