SunSetter Oasis Replacement Instructions Manual

Tools Needed: 13 mm Wrench or Socket, 3/4 inch Wrench or Socket, Towel.
Parts Supplied: Arm Assembly(s) Left or Right and four (4) Plastic Safety Sleeves.
WARNING: FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY!! PLEASE READ
THESE INSTRUCTIONS IN ITS ENTIRETY BEFORE ATTEMPTING TO COMPLETE THIS PROCEDURE.
PLEASE NOTE THAT LEFT AND RIGHT REFERENCES ARE AS YOU FACE THE GEAR ASSEMBLY OR MOTOR.
1. Completely close the Oasis.
2. Remove the Crank Wand from the Gear Assembly and if motorized, unplug the Motor Power Cord from the
electrical outlet.
3. Position two chairs approximately eight (8) feet apart.
WARNING: THE FOLLOWING PROCEDURE SHOULD BE ACCOMPLISHED BY AT LEAST FOUR (4) PEOPLE.
4. Position one person at each Leg Assembly to prevent the Awning from sliding as the unit is tipped over.
5. Position one person at each end of the Awning Assembly, and be able to lift and support the weight of that
end of the Awning.
Note: Before completing the next step, make sure the Awning is oriented so the Arm Assembly you will
change will face up when the Awning is tipped over.

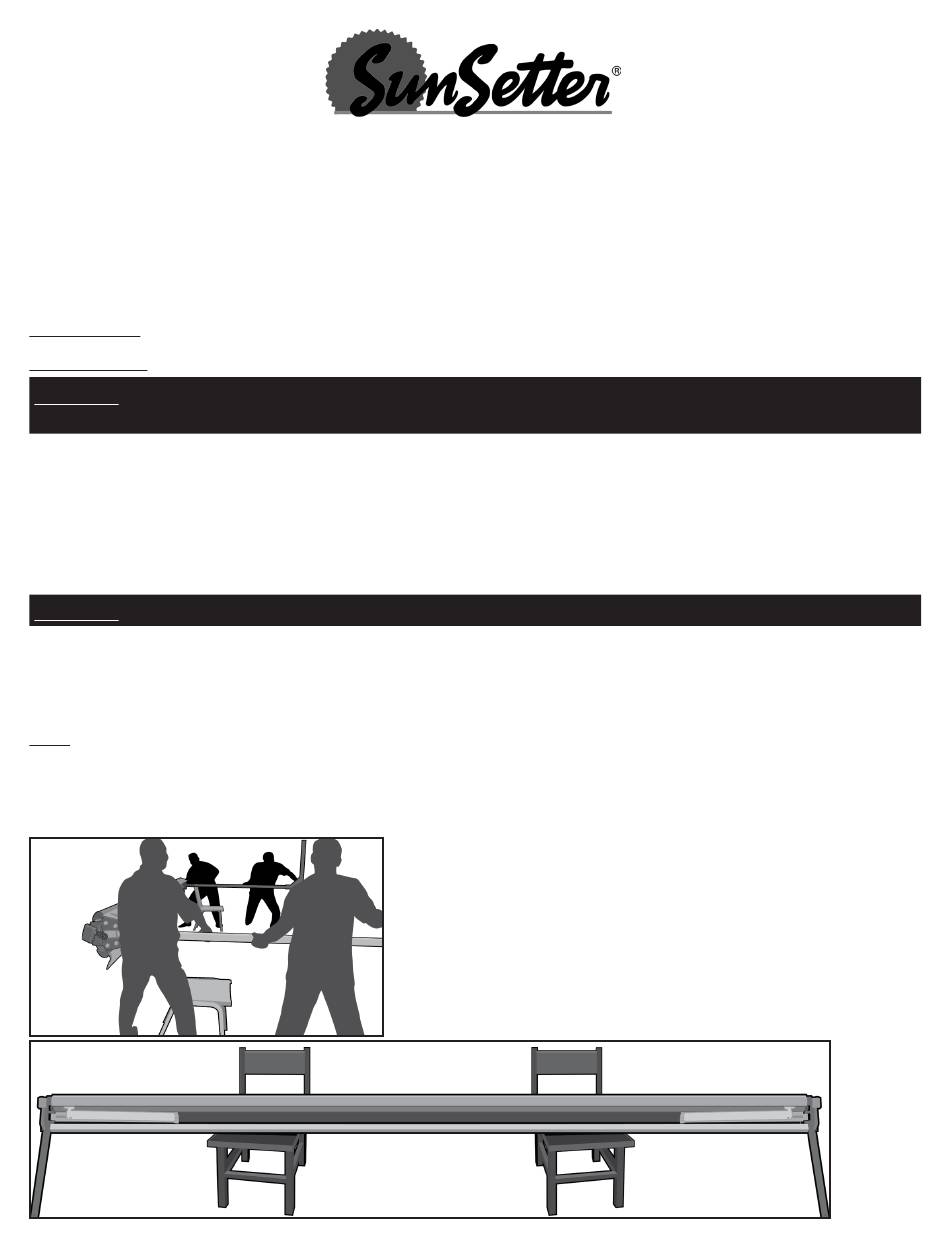

6. With all helpers in position, the two people positioned at the ends of the Awning Assembly tip the Awning
over (see Figure 1) until the Awning is resting on the two chairs. See Figure 2.
Figure 1
Figure 2
©SunSetter Products, a Massachusetts Limited Partnership, 184 Charles Street, Malden, MA 02148
RETRACTABLE AWNINGS
For Technical Support visit us at www.sunsetter.com/ownerscorner
or Call Toll Free 800-670-7071 • Fax 877-224-4944
Oasis Awning
Lateral Arm Assembly
Replacement Instructions
*Helpers Needed*
