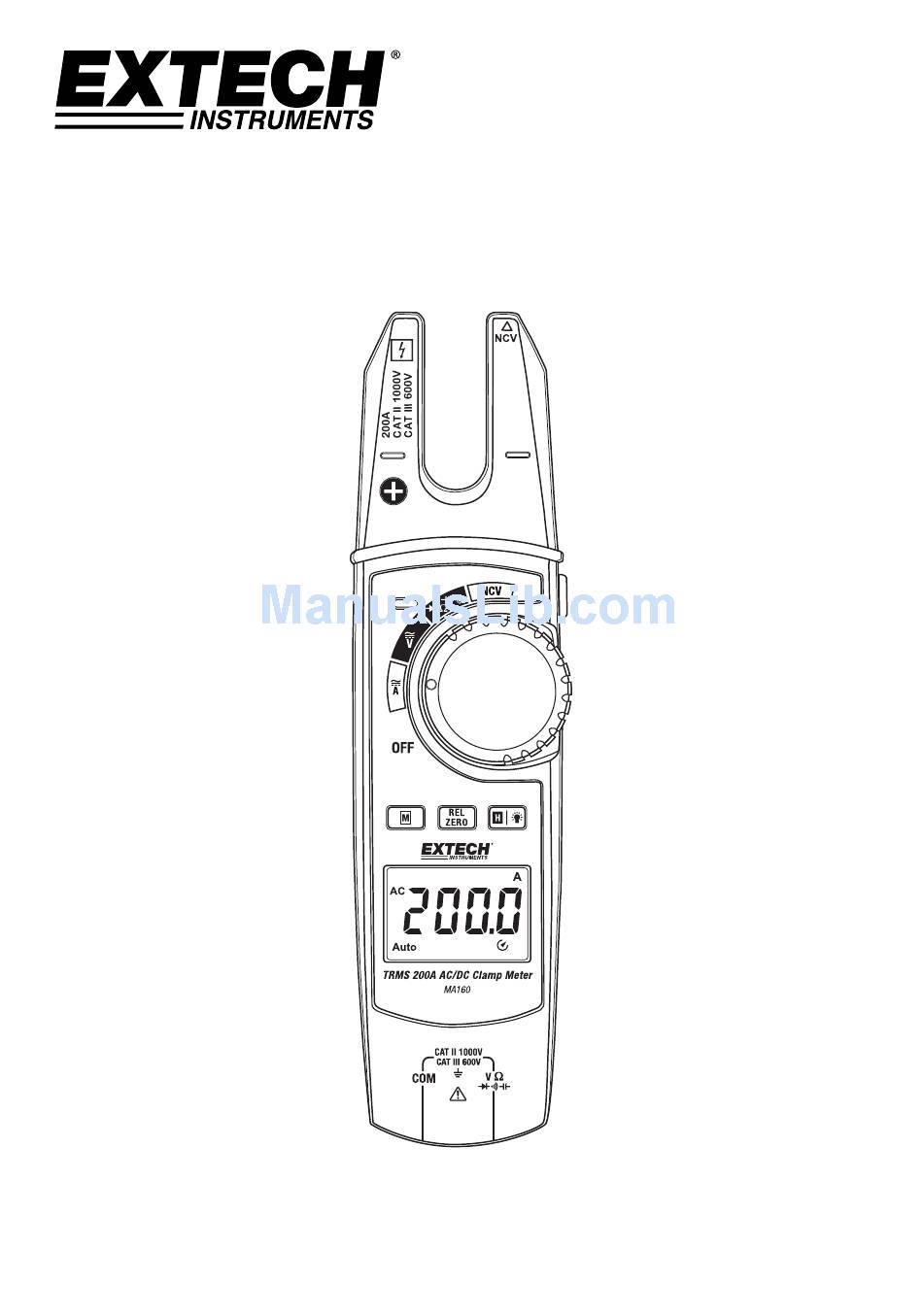

- Page 1 USER GUIDE True RMS 200A AC/DC Open Jaw Clamp Meter Model MA160 ShopExtech 1.888.610.7664 Shop for Extech products at: .com...
-
Page 2: Table Of Contents
Display Backlight Work Light Data Hold Test Lead Considerations Voltage Measurements AC Voltage Measurements DC Voltage Measurements Current Measurements Using the Clamp Non‐Contact Voltage Detector Resistance Measurements Continuity Measurements Capacitance Measurements Diode Test 5. MAINTENANCE 18 6. SPECIFICATIONS 19 MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 3: Introduction
1. Introduction Thank you for selecting the Extech MA160 Clamp Meter. The MA160 is a feature‐packed Open Jaw True RMS digital Clamp meter. Measure AC/DC voltage, AC current, DC current, Resistance, Diode, Continuity, and Capacitance. The MA160 also includes a Non‐Contact Voltage Detection feature. Other functions include Data Hold, Relative mode, Work light, Backlight, and Auto power‐off. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Please visit our website (www.extech.com) to check for the latest version of this User Guide, Product Updates, Product Registration, and Customer Support. Features 6000 count digital display Large backlit LED display True RMS AC measurements 0.8% DCV accuracy Data Hold Relative mode Auto Power OFF (APO) 200A AC current measurements 200A DC Current Measurements Non‐Contact Voltage Detector Visual and audible continuity measurement alert Low battery indicator ... -
Page 4: Safety Information
Use caution working with voltages above 30 VAC RMS, 42 VAC peak, or 60 VDC. These voltages pose a shock hazard. To avoid misleading readings that could lead to electric shock and injury, replace the batteries as soon as the low battery indicator is displayed. Disconnect power to the circuit under test and discharge all high‐voltage capacitors before testing resistance, continuity, diodes, or capacitance. Do not use the meter in the presence of explosive gas or vapor. To reduce risk of fire or electric shock, do not use the meter if it is wet and do not expose the meter to moisture. Individual protective equipment should be used if HAZARDOUS LIVE parts in the installation where measurements are to be carried out could be accessible. CAUTIONS CAUTIONS identify conditions and actions that could cause DAMAGE to the meter or equipment under test. Do not expose the meter to extremes in temperature or high humidity. Disconnect the test leads from the test points before changing the position of the function (rotary) switch. Do not expose the meter to extremes in temperature or to high humidity. Never set the meter to the resistance, diode, capacitance, micro‐amp, or amp functions when measuring the voltage of a power supply circuit; this could result in meter damage and damage to the equipment under test. MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... - Page 5 Equipment protected by double or reinforced insulation Low Battery symbol Conforms to EU directives Do not discard this product in household trash. AC measurement DC measurement Earth ground PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY OVERVOLTAGE CATEGORY I Equipment of OVERVOLT AGE CATEGORY I is equipment for connection to circuits in which measures are taken to limit the transient over‐voltages to an appropriate low level. Note – Examples include protected electronic circuits. OVERVOLTAGE CATEGORY II Equipment of OVERVOLTAGE CATEGORY II is energy‐consuming equipment to be supplied from the fixed installation. Note – Examples include household, office, and laboratory appliances. OVERVOLTAGE CATEGORY III Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations. Note – Examples include switches in the fixed installation and some equipment for industrial use with permanent connection to the fixed installation. OVERVOLTAGE CATEGORY IV Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation. Note – Examples include electricity meters and primary over‐current protection equipment MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com...
-
Page 6: Descriptions
3. Descriptions Meter Description Non‐Contact Voltage Detector Open jaw Work Light NCV alert LED lamp Work Light switch Rotary function switch Mode (M) button Relative , DCA Zero button HOLD and Backlight button Display Test lead jacks Note: Battery compartment on back of meter Fig 3‐1 METER DESCRIPTION MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... - Page 7 Display Icon Descriptions for MA160 Fig 3‐2 MA160 METER DISPLAY Units of measure DCA Zero Relative mode Data hold Alternating Current Direct Current Automatic range Continuity Diode 10. Capacitance 11. Non‐Contact Voltage Detector 12. Auto power off 13. Battery status 14. LCD display MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com...
- Page 8 Momentary presses of the Mode (M) button perform the functions shown in the table below. Fig. 3‐4 Mode (M) Button Function Table Switch Position Mode (M) Button Function AC DC AC DC Ω Momentarily press to access/exit the Relative mode. This mode of operation is only available for AC/DC voltage, AC Current, and Capacitance. In DCA mode, press to zero the display; press and hold to exit the zero. Press and hold this button to activate/deactivate the LCD backlight. Momentary presses switch DATA HOLD ON or OFF. Function Switch Description Meter POWER OFF position AC/DC Current mode (use M button to choose AC or DC) AC/DC Voltage mode (use M button to choose AC or DC) Capacitance, Continuity, Diode, Resistance modes (use M button to choose mode) Non‐Contact Voltage Detect position with alert LED Fig 3‐3 MA160 Function Switch MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com...
-
Page 9: Operation
4. Operation CAUTION: Read and understand all of the Safety statements listed in the safety section of this manual prior to use. Powering the Meter Turn the rotary function switch to any position to power the meter. Check the batteries if the unit fails to power ON. Refer to the Maintenance section for battery replacement. Turn the function switch to the OFF position to power OFF the meter. The meter has an Auto Power OFF feature (APO) where the meter switches OFF after 15 minutes of inactivity. When APO is enabled, the APO icon will show on the display when the meter is powered ON, The low battery symbol appears on the display when the battery voltage weakens below the threshold. Display Backlight With the meter powered ON, press and hold the backlight button to switch the backlight ON or OFF. Note that excessive use of the backlight will shorten the battery life. Work Light With the meter powered ON, press the Work Light button on the right side of the meter. A momentary press will switch the Work Light off. The Work Light lamp is located on the back of the unit toward the bottom of the clamp jaw. Note that excessive use of the backlight will shorten the battery life. Data Hold To freeze the LCD meter reading, press the Data Hold (H) button. While data hold is active, the H display icon appears on the LCD. Press the (H) button to return to normal operation. The H icon will switch OFF. Test Lead Considerations Test lead probe covers can be removed for CAT II 1000V installations. Use the test lead probe covers for CAT III 1000V installations. Do not measure voltages > 1000V DC or 600V AC. Remove the storage caps from the meter end of test leads before connecting leads to the meter. MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 10: Voltage Measurements
Voltage Measurements WARNING: Remove the test lead probe covers for CAT II 1000V installations. Use the test lead probe covers for CAT III 600V installations. Do not measure voltages greater than 600VAC or 1000VDC. CAUTION: When connecting the test leads to the circuit or device under test, connect the black lead before the red; when removing the test leads, remove the red before the black lead. Disconnect probes and circuit under test after all measurements are completed. AC Voltage Measurements Insert the black test lead banana plug into the negative (COM) jack and the red test lead banana plug into the positive (V/Ω) jack. Turn the function switch to the position. Use the M button to select AC. Read the Warning and Caution statements above to determine whether or not to use the test lead probe covers. Touch the test probe tips to the circuit under test. Read the digital value shown on the display. The meter is Auto Ranging and therefore selects the proper decimal point position. The meter also displays the measurement type, unit symbols, and other relevant multifunction icons. The meter is capable of detecting AC voltages to 600V. Fig 4‐1 AC VOLTAGE MEASUREMENTS MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 11: Dc Voltage Measurements
DC Voltage Measurements Insert the black test lead banana plug into the negative (COM) jack and the red test lead banana plug into the positive (V/Ω) jack. Move the Function Switch to the position. Use the M button to select DC. Read the Warning and Caution statements at the beginning of the Voltage Measurement section to determine whether or not to use the test lead probe covers. Touch the test probe tips to the circuit under test. Be sure to observe the correct polarity (red lead to positive, black lead to negative). Read the digital value of the measurement in the display. The display will also indicate the proper decimal point (Auto Range) and measurement type/units symbols. If the polarity is reversed, the display will show (‐) minus before the value. The meter is capable of detecting DC voltages to 1000V. Fig 4‐2 DC VOLTAGE MEASUREMENTS MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 12: Current Measurements Using The Clamp
Current Measurements Using the Clamp WARNING: Do not measure the current on a circuit when the voltage increases to more than 750V AC or 1000V DC. This can cause damage to the instrument and can cause injury to persons. Fig. 4‐3 Correct and Incorrect Clamping Ensure that the probe leads are disconnected from the meter. Set the function switch to the position. Use the M button to select AC or DC. For DC press ZERO to remove any residual magnetism and to null the display before clamping onto a conductor. Place the meter so only one conductor is located at the base of the jaws. For optimum results, center the conductor in the jaws. Read the current measurement in the display. The display will indicate the proper decimal point and value. In DC, when the polarity is reversed, the display will show (‐) minus before the value. MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 13: Non-Contact Voltage Detector
Non‐Contact Voltage Detector WARNING: It is possible for voltage to be present in a circuit even if the meter does not beep or flash the NCV LED lamp. Always verify meter operation on a known live AC current circuit and verify that the batteries are fresh before use. When the meter senses an AC Voltage or electromagnetic field > 100VAC, the following occurs: The audible beeper sounds ON and OFF The LED lamp flashes ON and OFF The display shows 1, 2, 3, or 4 dashes The greater the electrical field strength, the faster the rate of the audible beeper, the flashing of the LED lamp, and the number of dashes displayed. If the meter does not emit a tone or flash the LED in this mode, there is still the possibility that voltage is present; please use caution. Turn the function switch to the NCV position to select Non‐Contact Voltage Detect mode. Note that EF is displayed when in this mode. If the EF does not display when the function switch is turned to the NCV position, check the batteries and do not use the meter until EF is displayed. To test, place the meter near a source of electrical energy. Note that the tip of the meter offers the highest sensitivity. Note the audible beeping, the flashing LED, and the displayed dashes when a source of electrical energy is detected. Fig 4‐4 NON‐CONTACT VOLTAGE DETECTOR MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 14: Resistance Measurements
Insert the black test lead banana plug into the negative (COM) jack. Insert the red test lead banana plug into the positive (V/Ω) jack. Turn the Function Switch to the Ω position. Use the M button to select the Ω icon on the display indicating resistance only (without the continuity/diode/capacitance icons showing). Touch the test probe tips across the circuit or part under test. It is best to disconnect one side of the part under test so the rest of the circuit will not interfere with the resistance reading. Read the resistance value in the display. The display will indicate the proper decimal point and value. If the reading is out of range, the OL display icon will appear. Fig 4‐5 RESISTANCE MEASUREMENTS Resistance Measurement Notes: The display will show “OL” when an open circuit is detected or if the resistance > maximum range. The test leads introduce an error of approx. 0.1Ω～0.2Ω for low resistance measurements. Use the Relative mode to obtain accurate readings. Short the test leads together, press the REL button, and then measure a low resistance. The meter subtracts the short‐circuit value from the reading. If the test lead resistance of probe is > 0.5Ω when shorted, inspect the test leads and the connection. It may take several seconds for the reading to stabilize when measuring resistance >1MΩ. This is normal operation. For personal safety, do not measure a circuit with voltages > 30V DC or AC. MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 15: Continuity Measurements
Continuity Measurements Insert the black test lead into the negative COM terminal and the red test lead into the positive terminal. Set the function switch to the position. Use the M button to select the Continuity mode. Look for the Continuity icon on the display. Touch the test probe tips across the wire or circuit under test. If the resistance is < 10Ω, the beeper will sound continuously. If the resistance is between 10 and 100Ω the beeper may or may not sound. For an open circuit condition the meter will display . Fig 4‐6 CONTINUITY MEASUREMENTS Continuity Measurement Notes: Turn off power to the circuit under test and discharge capacitors before measuring continuity. Open‐circuit voltage is approx. ‐3.5V Disconnect test leads and circuit measured after measurements are completed. MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 16: Capacitance Measurements
WARNING: To avoid electric shock, remove power to the circuit under test and discharge the capacitor under test before measuring. Do not test on circuits or devices where 60VDC or 30VAC is present. Set the function switch to the capacitance position. Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the positive jack. Press the M button to select the unit of measure symbol F. Touch the test probe tips across the part under test. For small capacitance values, use the Relative mode to remove test lead and probe capacitance. Read the capacitance value in the display. The display will indicate the proper decimal point and value. Fig 4‐7 CAPACITANCE MEASUREMENTS Capacitance Measurement Notes: The display will show “OL” if a capacitor is short circuited or if the measured capacitance > maximum range of the instrument. Capacitance measurements > 600μF may require several seconds to obtain a stable reading. In order to ensure measurement accuracy, discharge residual charges before measuring capacitance; Use maximum safety when working with high voltage capacitors to prevent damage to the instrument and risk to personal safety. Disconnect test leads and circuit under test after measurements are completed. MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 17: Diode Test
Diode Test Insert the black test lead banana plug into the negative COM jack and the red test lead banana plug into the positive jack. Turn the function switch to position. Use the M button to select the diode function, the diode and voltage symbols will appear on the LCD when in Diode test mode. Touch the test probe tips to the diode or semiconductor junction under test. Note the meter reading. Reverse the test lead polarity by reversing the red and black leads. Note this reading. The diode or junction can be evaluated as follows: If one reading displays a value (typically 0.400V to 0.900V) and reverse reading displays OL, the diode is good. If both readings display OL the device is open. If both readings are very small or ‘0’, the device is shorted. Fig 4‐8 DIODE TESTING MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 18: Maintenance
5. Maintenance WARNING: To avoid electrical shock, remove the test leads, disconnect the meter from any circuit and turn OFF the meter before opening the case. Do not operate with an open case. Battery Replacement Remove the test leads from the meter. Remove the Phillips head screw that secures the battery compartment cover on the back of the meter. Open the battery compartment and replace the two AA batteries, observing correct polarity. Re‐assemble the meter before use Battery Safety Notes: Please dispose of batteries responsibly; never dispose of batteries in a fire, batteries may explode or leak. If the meter is not to be used for 60 days or more, remove the battery and store separately. Do not mix battery types or freshness levels; please use batteries of the same type and of the same freshness level. Never dispose of used batteries or rechargeable batteries in household waste. As consumers, users are legally required to take used batteries to appropriate collection sites, the retail store where the batteries were purchased, or wherever batteries are sold. Disposal: Do not dispose of this instrument in household waste. The user is obligated to take end‐of‐ life devices to a designated collection point for the disposal of electrical and electronic equipment. Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. Please remove the batteries if the meter is stored for a long period of time. MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... -
Page 19: Specifications
0.001kΩ 60.00kΩ 0.01kΩ ± (1.0% + 2 digits) 1000V DC Resistance 750V AC 600.0kΩ 0.1kΩ ± (1.2% + 2 digits) 6.000MΩ 0.001MΩ ± (1.5% + 5 digits) 60.00MΩ 0.01MΩ 600.0Ω 0.1Ω ‐‐‐‐‐ 1000V DC; 750V AC Continuity Less than 10Ω beeper sounds. 10Ω to 100Ω undetermined. Greater than 100Ω beeper off (OL displayed). Open circuit voltage approx. 1.2V 6.000V 0.001V 0.5 to0.8V 1000V DC; 750V AC Diode Open Circuit Voltage : Approx. 3.3V MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com... - Page 20 Resolution Accuracy (reading) ‘OL’ Protection 60.00nF 0.01nF 600.0nF 0.1nF 6.000µF 0.001µF ± (4.0% + 20 digits) 1000V DC Capacitance 60.00µF 0.01µF 750V AC 600.0µF 0.1µF 6.000mF 0.001mF ± (10%) 60.00mF 0.01mF For reference only Non‐Contact Voltage Detector ≥100Vrms; ≤10mm (LED/Buzzer indication) (NCV) MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com...
- Page 21 After 15 minutes Operating Temperature and Humidity 0~30C (32~86F); 80%RH maximum 30~40C (86~104F); 75%RH maximum 40~50C (104~122F); 45%RH maximum Storage Temperature and Humidity ‐20~60C (‐4~140F); 80%RH maximum (with battery removed) Operating Altitude 2000m (6562’) Battery power 2 x 1.5V ‘AA’ alkaline batteries Weight 163.7g (5.7 oz.)Including battery Dimensions (W x H x D) 210 x 53 x 35mm (8.27x 2.1 x 0.67”) Safety Standards Complies with EN61010‐1, EN61010‐2‐032, and EN61010‐2‐033 CAT II 1000V, CAT III 600V; Pollution Degree 2 Drop Protection 1m (approx. 3’) drop onto hardwood on concrete flooring For Indoor Use Copyright © 2015 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO‐9001 Certified MA160‐en‐GB_V1.0 10/15 ShopExtech 1.888.610.7664 Shop for Extech products at: .com...
