Summary of Contents for Extech Instruments MA410T

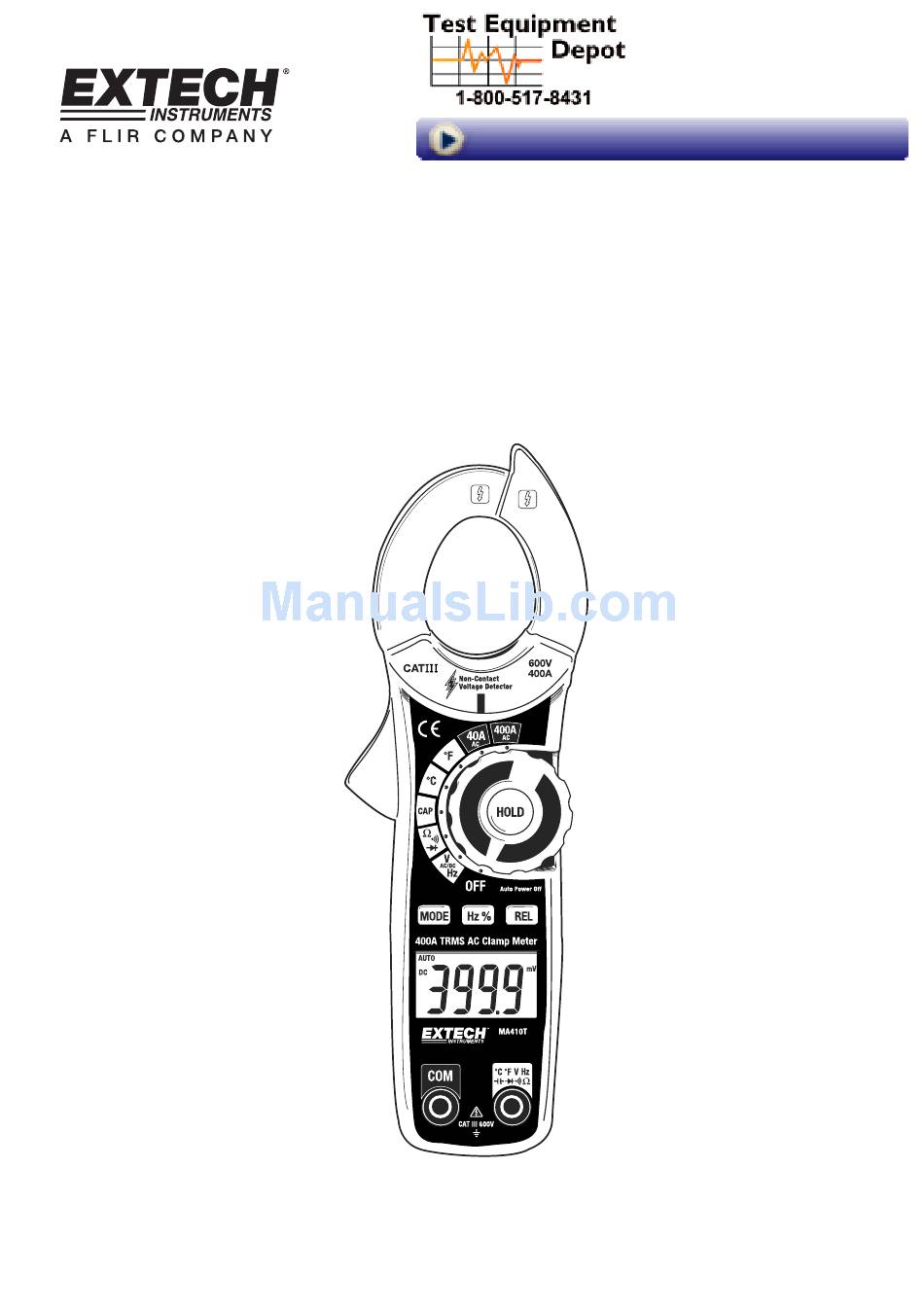

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com User Guide 400Amp True RMS AC Clamp Meter + NCV Model MA410T...
- Page 2 Thermocouple Temperature and Non-Contact Voltage detection. The double molded case is designed for heavy duty use. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service. Extech Instruments is an ISO-9001 Certified company. Safety...
-
Page 3: Safety Notes
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Function Maximum Input A AC, 400A V DC, V AC 600V DC/AC Resistance, Capacitance, Frequency, Diode 250V DC/AC Test, Continuity, Temperature MA410T-EU-EN-V1.0-7/12... -
Page 4: Meter Description
Volts (Voltage) Ohms (Resistance) Amperes (Current) Farad (Capacitance) Hertz (Frequency) Duty Ratio F and Fahrenheit and Celsius units (Temperature) n, m, , M, k Unit of measure prefixes: nano, milli, micro, mega, and kilo Continuity test Diode test MA410T-EU-EN-V1.0-7/12... -
Page 5: Operation
Read the current value in the display. If the value is less than 40A, rotate the function switch to the 40A position to improve resolution. Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com MA410T-EU-EN-V1.0-7/12... - Page 6 Press the MODE button to select the DIODE mode. The Diode symbol will appear in the display. Press the MODE button to select the Continuity mode. The continuity symbol will appear in the display. If the resistance is <150 ohms the tone will sound. MA410T-EU-EN-V1.0-7/12...
-
Page 7: Capacitance Measurements
In order to conserve battery life, the meter will automatically turn off after approximately 30 minutes. To turn the meter on again, change the position of the function switch. Low battery indication When the icon appears in the display, the battery should be replaced. Refer to the battery replacement procedure in the maintenance section. MA410T-EU-EN-V1.0-7/12... -
Page 8: Maintenance
/ accumulators are sold! Disposal in household trash or refuse is prohibited! Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle. MA410T-EU-EN-V1.0-7/12... -
Page 9: Specifications
Pulse width: 100s to 100ms, Frequency: 10Hz to 10kHz Temperature -4.0 to 1400°F 0.1° <400° ±(3% + 9°F/5°C) Type K -20 to 760°C 1° >400° Specification does not include probe accuracy. Range of supplied probe is -4 to 482°F (-20 to 250°C). MA410T-EU-EN-V1.0-7/12... - Page 10 Safety For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (2001): EN61010-1 (2001) Overvoltage Category III 600V, Pollution Degree 2. Approvals Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 TestEquipmentDepot.com MA410T-EU-EN-V1.0-7/12...
