- Page 2 (4) To improve the product performance, functions can be changed with no notice. (5) Please understand that CAS does not have responsibility for a demand related to loss, lost profit etc. caused by operating the product, regardless of the third clause.
-
Page 3: Table Of Contents
CONTENTS 1. Precautions ............. 5 2. Main Features ..........5 3. Specifications ..........6 4. Description of Panels and Symbols ... 8 5. How to Use a Rechargeable Battery ..9 6. General Functions ........10 7. Setting Mode ..........11 8. -
Page 4: Precautions
1. Precautions Please be informed that we’re not responsible for any incident or mishap caused by partial modification of this product. To avoid such situation, customers need to contact our customer service team or system installation staff in advance, and any modification should be conducted under our surveillance. -
Page 5: Specifications

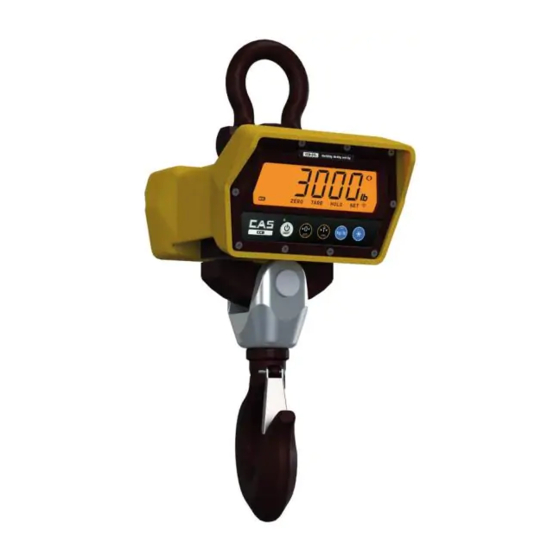

3. Specifications Overall view ◆ Dimensions ◆ DIMMENSION(mm) e=d= Weight MODEL (kg/lb) (kg/lb) (kg) CCB-1TL(F) 1,000/2,000 0.2/0.5 CCB-3TL(F) 2,500/5,000 0.5/1 15.2 CCB-5TL(F) 5,000/10,000 16.7 CCB-10TL(F) 10,000/20,000 26.9 (F) means that ZigBee wireless option is applied to product. - Page 6 Specifications ◆ MODEL CCB-L Display 6 digit FSTN LCD 30mm & LED backlight Approx. 12 hr Operating time Battery 3.7V Power adaptor Display lamp Low battery, Zero, Tare, Hold, Stable Function ON/OFF, Zero, Tare, HOLD, * Temperature - 20℃ ~ +60℃ Max.
-
Page 7: Description Of Panels And Symbols
4. Description of Panels and Symbols Display ◆ Display the weight data & message Displayed when the weight is stable Indicates the weighing unit Indicates when the ZigBee communicates data Indicates when the weight is zero Indicates when the tare is included Indicates when the hold function is set Indicates when a battery has to be recharged Keypad... -
Page 8: How To Use A Rechargeable Battery
5. How to Use a Rechargeable Battery (1) Method of recharge battery ■ Check the power supply voltage. ■ If adaptor is still being charged, the RED lamp is on as below picture. ■ If a charging is completed, the RED lamp is off. The battery charging time takes about 6 hours. -
Page 9: General Functions
6. General Functions (1) Zero function Use to correct drifted zero value when the scale is unloaded, and motion is not detected. This function works when ZERO KEY is pressed, and the ZERO LAMP is on. (2) Setting tare weight function. Press the TARE KEY. -
Page 10: Setting Mode
7. Setting Mode (1) How to enter this mode Press the ON/OFF KEY while pressing the TARE KEY. Changed values are saved after run to the final menu. (2) Keyboard Used to set up an initial zero value (0). Used to move the input value to the left or right by one place. Used to increase the setting constant one by one. - Page 11 ■ F05: Adjustment the hold speed (1~9) Setting Menu Description F05-1 Very fast F05-5 Normal F05-9 Very slow ■ F06: Auto hold (0,1) Setting Menu Description F06-0 Manual F06-1 Automatic F08 of setting mode must be set to 4. Refer to “6. General Functions” ■...
- Page 12 ■ F10: Weighing data send format (0~4) Setting Menu Description F10-0 Not used F10-1 Send the print format by automatically at stable F10-2 Send the weighing data by automatically at stable F10-3 Send the print format by automatically at HOLD F10-4 Send the weighing data by automatically at HOLD Please select this mode if you used the wireless printer.
- Page 13 Command address ID is selected in F02 (If ID is 1, 0x31 is sent) Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Lamp Statue Stable Hold Tare Zero Example 1) 13.5 lb ‘ ’, ‘ ’, ‘ ’, ‘ ’, ‘1’, ‘3’, ‘.’, ‘5’ ‘...
- Page 14 ■ F14: Stream wireless mode (0~2) Setting Menu Description F14-0 Not used F14-1 ZigBee communicate with CRD series and CRC-100 F14-2 ZigBee communicate with CRC-200 dongle In case of F14-2, refer to the 22bytes data format. ■ F15:Back light mode(0~2) Setting Menu Description F15-0...
-
Page 15: Test Mode
8. Test Mode (1) How to enter this mode Press the ON/OFF KEY while pressing the ZERO KEY. (2) Menu ■ TEST 1: Display test Display Description TEST 1 runs automatically and a display is on. If press ENTER KEY, move into next menu. ■... -
Page 16: Ir Remote Controller
9. IR Remote Controller ■ : Use to power off the scale (Power-ON is available only on scale.) ■ Same as scale’s keyboard ■ Same as scale’s keyboard ■ Same as scale’s keyboard ■ Same as scale’s keyboard ■ Used to add weights. If press a SUM KEY, the sum of weights is displayed. -
Page 17: Real Time Clock (F Model)
11. Real Time Clock (F model) (1) How to enter this mode Press the ON/OFF KEY while pressing the ZERO KEY. (2) Keyboard Used to move the input value to the left or right by one place. Used to increase the setting constant one by one. Used to save the value and to move next menu. -
Page 18: Wireless Pairing (F Model)
12. Real Time Clock (F model) Step Operation & Description How to enter the pairing mode 1) CCB crane scale When the display is off, press ON/OFF key while pressing * key. When “ = ”(Firmware version) is displayed, press kg/lb key. Then, “... -
Page 19: Check Message
13. Check Message Data in an internal storage value are erased owing to any electronic impact. Please contact us to resolve this technical problem. Something wrong in a Load cell connection or in an A/D conversion. Please contact us to resolve this technical problem. When a thing is over-weighed within the maximum weight value, the error message is displayed. - Page 20 MEMO...
- Page 21 MEMO...
