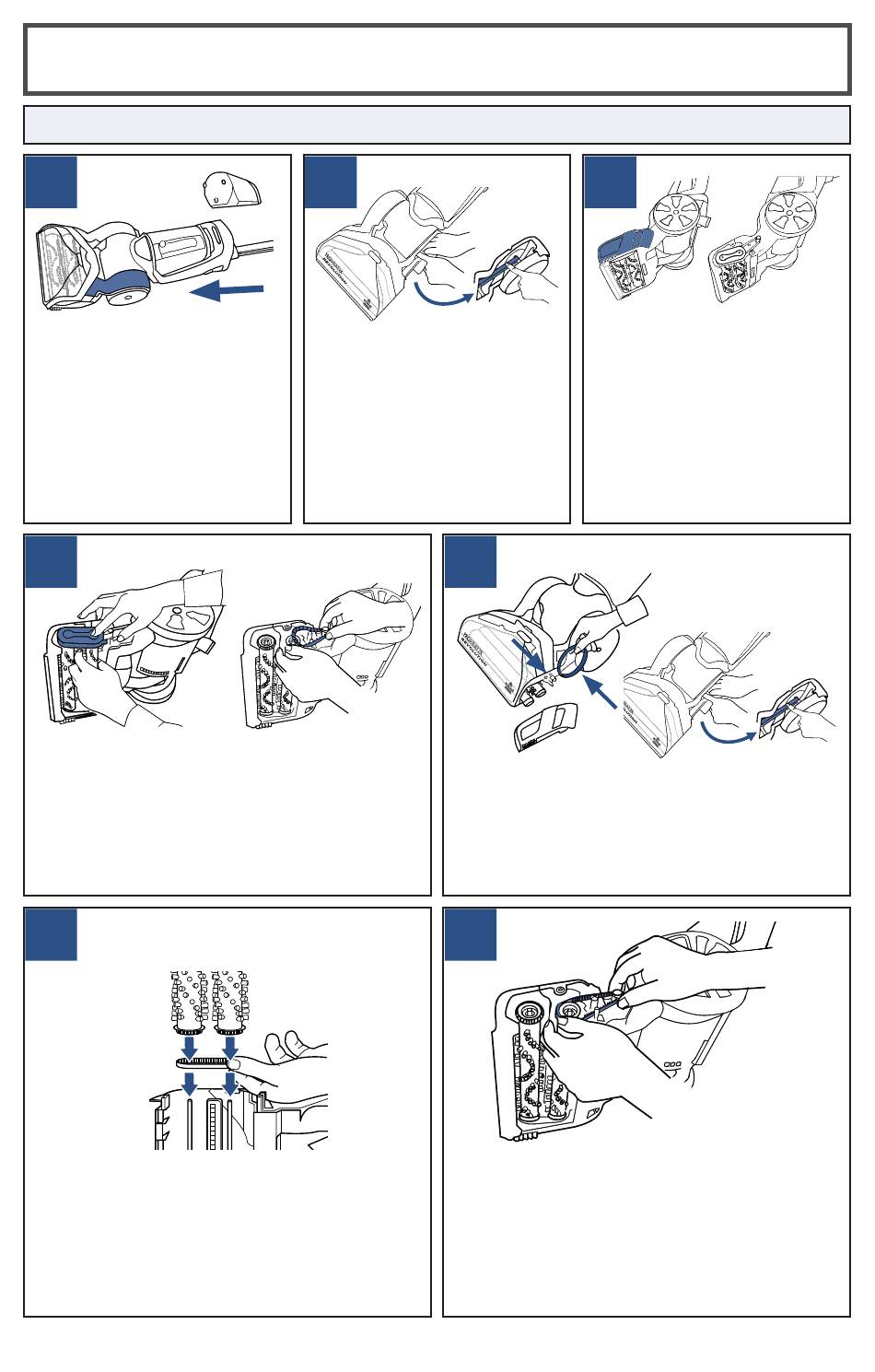

Replacing Belts or Brush Rolls
What you will need: 1 Phillips-head screwdriver & 1 flat-head screwdriver
1
Unplug the machine.
Remove both tanks from
the machine. Press the
Recline Pedal and lay the
machine on its back. Use
a flat-head screwdriver
to help lift and remove
the Belt Access Door.
4
Remove the Brush Cover by lifting
straight up. Remove the Cogged
Large Pump Belt. The Brush Rolls
can be replaced or cleaned at this
time, if needed.
6
Spin either brush. If they both
spin continue to Step 7.
If only one spins, the opposite belt is
broken and you must remove both
brushes and replace the Small Cogged
Brush Belt.
Place the new belt around both brush
gears and slide them onto the thin
metal axles.
14
www.BISSELL.com.au
2
Here you should see one
(1) belt. This is the Flat
Pump Belt. If the Flat
Pump Belt is broken,
gently remove it from the
machine. We will replace
this belt in Step 5.
5
Now, if the Flat Pump Belt was broken,
place a new Flat Pump Belt around the
red area of the large pulley. Then use
your thumb to stretch it toward the back
of the machine and transfer it onto the
metal axle.
7
To replace the Cogged Large Pump
Belt, make sure your deep cleaner is
completely reclined. Begin by wrapping
the Cogged Large Pump Belt around
the small metal-toothed pulley. While
wrapped around the pulley, stretch and
wrap around the nearest brush gear.
3
Turn the machine on its
side. The Power Switch
should be facing up.
Remove the 3 screws on
the Belt/Brush Access
Plate using a Phillips-head
screwdriver. Remove the
Access Plate to expose
the Brush Cover and
Cogged Large Pump Belt.
