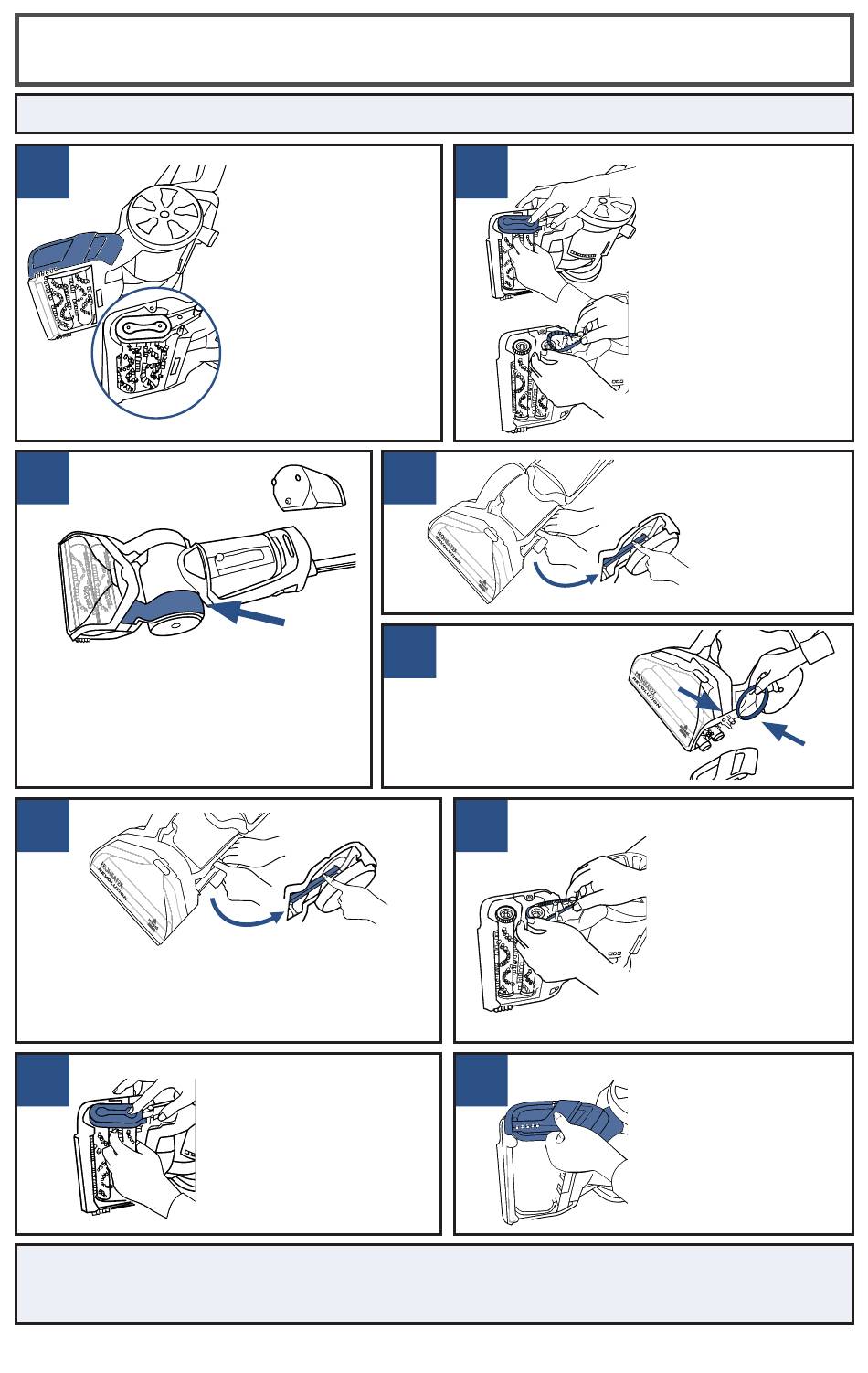

Replacing Belts & Brush Roll
What you will need: 1 Phillips-head screwdriver & 1 flat-head screwdriver.
1
3
Large Wheel Belt
Replacement
Make sure to press the Recline
Pedal and lay the machine on its
back. Use a flat-head screwdriver to
help lift the Belt Access Door and
remove. If the belt is not broken,
skip to step 8.
6
Stretch the belt towards the back of the
machine with your thumb and transfer it
onto the metal axle. Snap the Belt Access
Door back into place.
8
NOTE: Force must be used to lift the Belt Access Door. There is a small belt and end cap
on the other end of the Brush Rolls. That belt needs to wrap around the tooth end of the
Brush Rolls and the end cap needs to be secure before re-assembling the machine.
Remove Clean Water
Tank and make sure
the Dirty Water Tank
is empty. Press the
Recline Pedal and
lay the machine on
its side. Remove 3
screws on the belt/
brush access plate
using a Phillips-head
screwdriver. Remove
the plate to expose
the belt.
Replace and secure the
brush roll cover, making
sure Brush Rolls are
aligned.
NOTE: It is important
the Brush Rolls align on
both ends of the foot.
2
4
5
To replace the
large belt, place it
over the red area
of the large pulley
near the front of
the machine.
7
9
Brush Roll & Small
Belt Replacement
Remove the brush
cover by lifting it up,
then lift the small
belt to remove. The
Brush Rolls can be
gently removed and
replaced with new
Brush Rolls. (Skip to
step 7 for small belt
replacement.)
If the belt is
broken, gently
remove it from
the machine.
Replace smaller
toothed belt by
wrapping around
the small metal
toothed pulley
and the gear at
the end of the
rear-most brush.
Return Belt/Brush
Access Plate to the
end of the Brush Rolls.
It will "click" in place
when screws align.
Use a screwdriver to
secure the plate with
the three screws.
