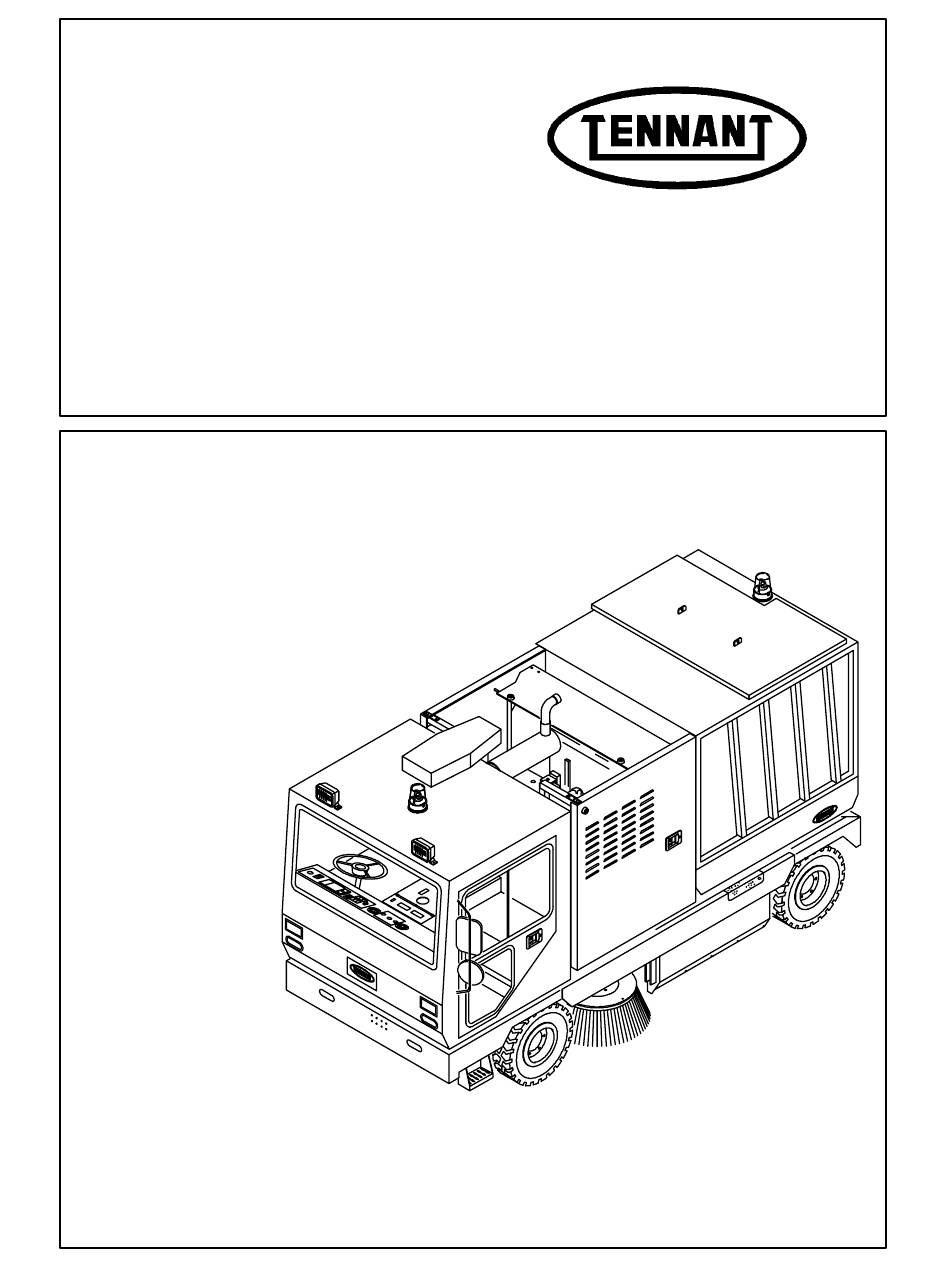

  • Page 1 Operator Manual MM332 Rev. 08 *MM332*...
  • Page 2 This manual is furnished with each new TENNANT Model 830. It provides necessary operating and preventive maintenance instructions. Read this manual completely and understand the machine before operating or servicing it. This machine will provide excellent service. However, the best results will be obtained at minimum costs if: D The machine is operated with reasonable care.

  • Page 3: Table Of Contents

    ....MAIN BRUSH OFF LIGHT ..CONVEYOR DOWN AND MAIN BRUSH ON LIGHT ..WATER PUMP SWITCH (OPTION) . . . 830 MM332 (3- -96)
  • Page 4 ....INDEX ........830 MM332 (3- -96)

  • Page 5: Safety Precautions

    - - Use Cardboard To Locate Leaking Unless Designed For Use In Those Hydraulic Fluid Under Pressure. Areas. - - Use TENNANT Supplied Or Approved Replacement Parts. 2. Before Starting Machine: - - Check For Fuel Leaks. WARNING: Machine Can Emit Excessive - - Keep Sparks And Open Flame Away Noise.
  • Page 6 Blades. Keep Away. WARNING: Do Not Store Hopper Support Bar On Cylinders. CALIFORNIA PROPOSITION 65 WARNING: Engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. 830 MM332 (3- -96)
  • Page 7 HOPPER SUPPORT PIN LABEL (For Machines Serial Number 001710 And Above) - - BRUSH LINKAGE LABEL (VARIO SWEEPING Located On The Support Pin. BRUSHt OR AUXILIARY SIDE BRUSH) - - Located On The Front Of The Machine. 09212 830 MM332 (3- -96)
  • Page 8 Located Below The Hopper Door. FLAMMABLE MATERIALS LABEL (Wet Dust Control Option) - - Located On The Water Tank. HOPPER SUPPORT PINS LABEL (High Dump Model) - - Located On The Machine Frame Next To The Support Pins. 09212 830 MM332 (3- -96)

  • Page 9: Operation

    FOR SAFETY: Do Not Operate Machine, Unless Operation Manual Is Read And Understood. - The model 830 has a GVWR of 9072 kg (20,000 lb) or 4536 kg (10,000 lb) per axle. Operate only on surfaces capable of supporting this weight.
  • Page 10 We recommend taking advantage of a regularly scheduled service contract from your TENNANT representative. - Order parts and supplies directly from your authorized TENNANT representative. Use the parts manual provided when ordering parts. 830 MM332 (12- -93)

  • Page 11: Machine Components

    MACHINE COMPONENTS 09540 Vacuum Wand Diesel Engine Hopper Lift Conveyor Main Brush Hopper Side Brush(es) Dust Filters Water Tank (left side) Vacuum Fan M. Fuel Tank Hopper Door Vario Sweeping Brusht (Option) or Auxiliary Side Brush (Option) 830 MM332 (12- -93)

  • Page 12: Control Panel Symbols

    Solution Level Brusht Front Tilt Down Auxiliary Side Brush/Vario Sweeping Hopper Overload Brusht Side Tilt Left Auxiliary Side Brush/Vario Sweeping Hopper Door Brusht Side Tilt Right Fuel Main Brush Off Engine Water Temperature Vacuum Wand Door 830 MM332 (12- -93)
  • Page 13 Water Valve Flow Rate Air Conditioner Vario Sweeping Brusht Rotation Counter-clockwise Auxiliary Side Brush/Vario Sweeping Brusht Rotation Clockwise Heater Right Side Brush Debris Lift Forward Direction Side Brush Down and On Debris Lift Reverse Direction Fuse 830 MM332 (9- -95)

  • Page 14: Controls And Instruments

    Hopper Overload Light (High Dump Model) Hopper Door Light Conveyor Up And Main Brush Off Light M. Vacuum Wand Door Light (Option) Hopper Tilt Light Conveyor Down And Main Brush On Light Water Pump Switch (Option) 830 MM332 (8- -96)
  • Page 15 LL. Right Side Brush Water Valve Knob (Option) MM. Steering Wheel NN. Parking Lights, Headlights, Bright Headlights, And Signals Switch OO. Windshield Wiper And Washer Switch PP. Ignition Switch QQ. Propelling Pedals RR. Brake Pedal SS. Parking Brake Lever TT. Throttle Lever 830 MM332 (9- -95)

  • Page 16: Operation Of Controls

    Left: Press and hold the switch in the position until the brush has moved to the left as far as desired. Right: Press and hold the switch in the position until the brush has moved to the right as far as desired. 830 MM332 (12- -93)

  • Page 17: Vario Sweeping Brusht Front Angle Switch (Option)

    Clockwise: Pull the lever into the position when operating the brush on the left side of the machine. Counter-clockwise: Push the lever into the position when operating the brush on the right side of the machine. 830 MM332 (12- -93)

  • Page 18: Vario Sweeping Brusht Left Water Valve Knob (Option)

    If this is NOT done when the machine is shut off, water will continue to flow. NOTE: The water pump needs to be on for the water valves to operate. 830 MM332 (9- -95)

  • Page 19: Auxiliary Side Brush Lever (Option)

    AUXILIARY SIDE BRUSH DIRECTION LEVER (OPTION) The auxiliary side brush direction lever controls the of rotation of the side brush. On: Push the lever into the position when operating the brush on the right side of the machine. 830 MM332 (12- -93)

  • Page 20: Fuel Level Gauge

    Refer to the chart in the SWEEPING section. NOTE: If the tachometer does not engage when first starting the machine, rapidly increase the throttle until it engages. Then adjust the throttle to the desired engine RPM. 830 MM332 (8- -94)

  • Page 21: Hourmeter

    The glow plugs light comes on when the ignition switch is turned counter-clockwise to the accessories position. The light will go out when the engine is ready to start, usually 5 to 30 seconds depending on the weather conditions. 830 MM332 (8- -94)

  • Page 22: Signal Light

    The parking brake light comes on when the parking brake is set. WATER TANK LOW LIGHT (OPTION) The water tank low light comes on when the water tank level is low. The water pump will shut off soon after this light comes on. 830 MM332 (12- -93)

  • Page 23: Hopper Overload Light

    HOPPER TILT LIGHT The hopper tilt light comes on when the hopper is tilted back. Make sure the hopper is lowered into the sweeping position and the hopper tilt light is off before sweeping with the machine. 830 MM332 (9- -95)

  • Page 24: Vacuum Wand Door Light (Option)

    The water pump switch powers on and off the water pump for the dust control system. On: Press the top of the water pump switch. The light will come on. Off: Press the bottom of the water pump switch. The light will go off. 830 MM332 (9- -95)

  • Page 25: 4-Way Warning Lights Switch

    On: Press the top of the front night sweeping light switch. The light will come on. Off: Press the bottom of the front night sweeping light switch. The light will go off. 830 MM332 (12- -93)

  • Page 26: Side Brush Spot Light Switch

    To recirculate the air, loosen the knobs, slide the vent to the left, and then tighten the knobs. Slide the vent to the right if only fresh outside air is desired. 830 MM332 (3- -96)

  • Page 27: Fan Knob

    This direction lifts debris into the hopper. Reverse: Place the debris lift switch in the position. This direction reverses the conveyor to release debris clogged in the conveyor. Reverse is also used when cleaning the conveyor. 830 MM332 (9- -95)

  • Page 28: Fuses

    When the hopper is tilted out, the hopper door will swing open when it is unlatched. Unlatch: Pull the hopper door lever in the position. Latch: Push the hopper door lever in the position when the hopper is in the sweeping position. 830 MM332 (11- -94)

  • Page 29: Hopper Lever

    The throttle should be at idle. Filter Shaker On: Pull and hold the vacuum fan and filter shaker lever into the position for 20 to 30 seconds before tilting the hopper. 830 MM332 (9- -95)

  • Page 30: Left Side Brush Lever (Option)

    If this is NOT done when the machine is shut off, water will continue to flow. NOTE: The water pump needs to be on for the water valves to operate. 830 MM332 (9- -95)

  • Page 31: Right Side Brush Water Valve Knob (Option)

    Right: Turn the steering wheel to the right. NOTE: The machine has 4-wheel steering. Watch the swing of the rear corners of the machine when turning. HORN BUTTON The horn button operates the horn. Sound: Press the button. 830 MM332 (9- -95)

  • Page 32: Parking Lights, Headlights, Bright Headlights, And Signals Switch

    Windshield Wipers Off: Push the lever all the way down. Windshield Wipers Slow Speed: Pull the switch lever to the first position. Windshield Wipers Slow Speed: Pull the switch lever to the second position. Windshield Washer Fluid Spray: Push the switch lever end in. 830 MM332 (12- -93)

  • Page 33: Ignition Switch

    The left pedal is used mainly for transporting the machine, and overrides the manual throttle. BRAKE PEDAL The brake pedal stops the machine. Stop: Take your foot off the propelling pedal and step on the brake pedal. 830 MM332 (12- -93)

  • Page 34: Parking Brake Lever

    For machines serial number 001710 and above, pull on the rubber latch until the door is loose. Remove the door by pulling the door from the pins in the machine frame. 830 MM332 (3- -96)

  • Page 35: Operator Seat

    The ride stiffness is adjusted with the stiffness knob. Adjust: Turn the knob clockwise to increase the ride stiffness, and counter-clockwise to decrease the ride stiffness. 830 MM332 (12- -93)

  • Page 36: Hopper Support Bar (For Machines Below Serial Number 001710)

    The hopper support pins holds the hopper in the raised position to allow work under the hopper. DO NOT rely on the machine hydraulic system to keep the hopper raised. WARNING: Raised Hopper May Fall. Engage (2) Hopper Support Pins. 830 MM332 (3- -96)

  • Page 37: How The Machine Works

    There is also a dust control water system. When sweeping is finished, clean the hopper dust filter and empty the hopper. PRE-OPERATION CHECKLIST - Check under the machine for leaks (fuel, oil, coolant). - Check the engine air filter indicator. 830 MM332 (8- -94)
  • Page 38 OPERATION - Check the air filter intake screen at the top of the cab for obstructions. - Check the engine oil level. - Check fuel level. - Check the brakes and steering for proper operation. 830 MM332 (9- -95)
  • Page 39 - Check fuel filter water trap for water. - Check the coolant level in the overflow reservoir. - Check the radiator core exterior and hydraulic cooler fins for debris. - Check the windshield washer fluid level. 830 MM332 (12- -93)

  • Page 40: Starting The Machine

    When the glow plug light goes out, usually for 5 to 30 seconds depending on the weather conditions, the engine is ready to start. NOTE: The preheat is not necessary if the temperature is above 10_ C (50_ F). 830 MM332 (12- -93)
  • Page 41 Every 10 minutes relift the conveyor and all the brushes to keep them from slowly lowering into their operating positions. FOR SAFETY: When Using Machine, Always Follow Safety And Traffic Rules. 830 MM332 (11- -94)

  • Page 42: Sweeping And Brush Information

    OPERATION SWEEPING AND BRUSH INFORMATION The model 830 has a GVWR of 9072 kg (20,000 lb) or 4536 kg (10,000 lb) per axle. Operate only on surfaces capable of supporting this weight. Avoid bulky debris such as crates, boxes, tree branches, and very heavy material.

  • Page 43: Sweeping

    (Ear plugs mandatory) NOTE: Do NOT sweep with engine speed higher than 2000 RPM. NOTE: If the tachometer does not engage, rapidly increase the throttle until the tachometer engages. Then adjust the throttle to the desired engine RPM. 830 MM332 (9- -95)
  • Page 44 6. Lower the side brush with the right side brush lever. 7. Lower the optional side brushes, if equipped and needed. 8. Start the vacuum fan with the vacuum fan and filter shaker lever. 830 MM332 (9- -95)
  • Page 45 The opening can be cleared by redistributing the debris in the hopper. To do this, stop sweeping, raise the main brush and conveyor, and tilt the hopper back. Return the hopper to the sweeping position and continue to sweep. 830 MM332 (9- -95)

  • Page 46: Stop Sweeping

    3. Raise the side brush with the right side brush lever. 4. Raise the optional side brushes if used. 5. Shake the dust filters with the vacuum fan and filter shaker lever. NOTE: Shake the dust filter before tilting the hopper. 830 MM332 (9- -95)

  • Page 47: Emptying The Hopper

    (Hold) position. 4. Place the directional lever in the Reverse position and slowly back the machine up to the debris site or container. FOR SAFETY: When Using Machine, Move Machine With Care When Hopper Is Raised. 830 MM332 (12- -93)
  • Page 48 The hopper tilt light will go off. 8. Push the hopper door lever into the position. WARNING: Hopper Door Pinch Point. Stay Clear Of Hopper Door. 830 MM332 (11- -94)

  • Page 49: Stop The Machine

    OPERATION STOP THE MACHINE 1. Stop sweeping. 2. Take your foot off the propelling pedal. Step on the brake pedal. 3. Move the throttle lever back to the idle position. 4. Set the machine parking brake. 830 MM332 (8- -94)

  • Page 50: Post-Operation Checklist

    - Check for wire or string tangled on the main and side brushes. - Check for fuel odor that indicates a fuel leak. - Check under the machine for leak spots (fuel, oil, coolant). - Check the service records to determine maintenance requirements. 830 MM332 (9- -95)

  • Page 51: Engaging Hopper Support Bar Or Pin

    OPERATION ENGAGING HOPPER SUPPORT BAR OR PIN 1. Set the machine parking brake. 2. Start the engine. 3. Tilt the hopper all the way back. 830 MM332 (3- -96)
  • Page 52 WARNING: Raised Hopper May Fall. Engage Hopper Support Pin. 5. Shut the engine off. 830 MM332 (3- -96)

  • Page 53: Disengaging Hopper Support Bar Or Pin

    Support Bar On Cylinders. For machine serial number 001710 and above, remove the hopper support pin and fasten it in the storage location on the right rear fender. 2. Start the engine. 3. Lower the hopper. 830 MM332 (3- -96)

  • Page 54: Engaging Hopper Support Pins (High Dump Model)

    OPERATION 4. Shut the engine off. ENGAGING HOPPER SUPPORT PINS (High Dump Model) 1. Set the machine parking brake. 2. Start the engine. 830 MM332 (3- -96)
  • Page 55 3. Raise the hopper all the way up. 4. Install the red support pins in the designated hole on both sides of the machine. WARNING: Raised Hopper May Fall. Engage (2) Hopper Support Pins. 5. Shut the engine off. 830 MM332 (3- -96)

  • Page 56: Disengaging Hopper Support Pins (High Dump Model)

    DISENGAGING HOPPER SUPPORT PINS (High Dump Model) 1. Start the engine. 2. Raise the hopper slightly to relieve pressure on the hopper support pins. 3. Pull the support pins out of both sides of the machine. 830 MM332 (3- -96)

  • Page 57: Operation On Inclines

    The maximum rated incline is 12_ with an empty hopper, and 8_ with a full hopper. Do not drive the machine on inclines with the hopper raised. FOR SAFETY: When Using Machine, Move Machine With Care When Hopper Is Raised. 830 MM332 (3- -96)

  • Page 58: Options

    Use for the left side of the machine, and for the right side of the machine. 3. Adjust the front angle of the brush, for less angle, and for more angle, with the Vario Sweeping Brusht front angle switch. 830 MM332 (3- -96)

  • Page 59: Auxiliary Side Brush

    2. Adjust the front angle of the brush, for less angle, and for more angle, with the auxiliary side brush front angle switch. 830 MM332 (3- -96)

  • Page 60: Left Side Brush

    WARNING: Flammable Materials Can Cause Explosion Or Fire. Do Not Use Flammable Materials In Tank. Only Use Water. NOTE: Turn off the conveyor and main brush when filling the water tank. 830 MM332 (3- -96)
  • Page 61 The water pump will shut off soon after this light comes NOTE: Do not use the water system on wet roads. Turn off the water pump and water valves. 830 MM332 (3- -96)

  • Page 62: Vacuum Wand

    3. Close the vacuum door with the vacuum wand door tool. Place the tool back in its storage location under the hopper. WARNING: Conveyor Throws Debris. Conveyor Pinch Point. Stay Clear When In Operation. 4. Lower the hopper. 830 MM332 (3- -96)
  • Page 63 9. Put the vacuum wand back on the hopper door. 10. Reduce the throttle RPM. 11. Shut off the vacuum fan. 12. Tilt the hopper back. 13. Open the vacuum door. 14. Lower the hopper. 830 MM332 (3- -96)

  • Page 64: Machine Troubleshooting

    Vacuum fan not on Turn vacuum fan on Vacuum fan failure Contact TENNANT service personnel Thermo Sentryt tripped Reset Thermo Sentryt Water tank empty Fill water tank Wet dust control filter clogged Clean or replace filter 830 MM332 (3- -96)
  • Page 65 Open vacuum wand door Vacuum fan not on Turn vacuum fan on Vacuum fan failure Contact TENNANT service personnel Worn brush skids Replace brush skids Brush skids not completely down Check for obstruction then lower skids completely 830 MM332 (3- -96)

  • Page 66: Maintenance

    Hopper dust filter Shake Windshield washer reservoir Check fluid level 50 Hours Fuel lines and clamps Check for tightness and wear Tires Check pressure Steering Align wheels Cab filters Clean Main brush/conveyor lift Purge hydraulic fluid air 830 MM332 (3- -96)
  • Page 67 Engine oil, SAE--CD/SE rated HYDO TENNANT or approved hydraulic fluid . . . Special lubricant, Lubriplate EMB grease (TENNANT part no. 01433--1) . . . Water and permanent-type ethylene glycol anti-freeze, --34_ C (--30_ F) ..Distilled water .

  • Page 68: Lubrication

    MAINTENANCE LUBRICATION 09541 A. CONVEYOR BEARINGS There are four bearing grease fittings. Lubricate daily with Lubriplate EMB grease (TENNANT part no. 01433--1). 830 MM332 (3- -96)

  • Page 69: High Dump Hopper

    D. WHEEL CV JOINTS There are two CV joints located at each front wheel. Lubricate with Lubriplate EMB grease (TENNANT part no. 01433--1) every 200 hours of operation. E. WHEEL PIVOTS POINTS The wheel pivots points have eight grease fittings.

  • Page 70: Throttle Linkage

    MAINTENANCE J. THROTTLE LINKAGE Lubricate with Lubriplate EMB grease (TENNANT part no. 01433--1) every 200 hours of operation. K. PROPELLING PEDAL Lubricate with Lubriplate EMB grease (TENNANT part no. 01433--1) every 200 hours of operation. L. MAIN BRUSH DOOR KNOBS...

  • Page 71: Hydraulics

    The hydraulic fluid filter is located on the side of the hydraulic reservoir that filters hydraulic fluid before it enters the system. Replace the filter element every 800 hours of operation. 830 MM332 (3- -96)

  • Page 72: Hydraulic Fluid

    HYDRAULIC FLUID The quality and condition of the hydraulic fluid play a very important role in how well the machine operates. TENNANT’s hydraulic fluid is specially selected to meet the needs of TENNANT Do not use machines. above 21_ C (70_ F) TENNANT’s hydraulic fluids provide a longer life...

  • Page 73: Hydraulic Hoses

    When the conveyor up and main brush off light comes on, hold in this position for about 5 minutes to force air from the system. 830 MM332 (3- -96)

  • Page 74: Engine

    The radiator and hydraulic cooler assembly pivots forward for cleaning or for accessing the front of the engine. To pivot forward, unscrew the bottom two bolts, pull the assembly forward and engage the locking latch. 830 MM332 (3- -96)

  • Page 75: Air Filter Indicator

    To clean the filter element, remove it from the filter housing. Carefully clean the end cap and the interior of the housing with a damp cloth. Clean the housing sealing surfaces. 830 MM332 (11- -97)

  • Page 76: Fuel Filter

    PRIME THE FUEL SYSTEM. When the fuel lines are not installed, plug both ends with clean cloth or paper to prevent dirt from entering the lines. Dirt in the lines can cause fuel injection pump malfunction. 830 MM332 (3- -96)

  • Page 77: Priming Fuel System

    NOTE: If the engine runs correctly for a short time and then stops, or runs roughly, check for air in the fuel system. If there is air in the system, there is probably leakage in the low pressure system. 9. Turn the ignition switch off. 830 MM332 (3- -96)

  • Page 78: Cab Filters

    WET DUST CONTROL FILTER (OPTION) The wet dust control filter is located under the cab between the front wheels. Clean the water filter every 200 hours of operation by removing and flushing with clean water. 09218 830 MM332 (3- -96)

  • Page 79: Windshield Wiper Blades

    After the first 50 hours of operation, and every 200 hours after that, clean and tighten the battery connections. Check the electrolyte level every 200 hours of operation. Only add distilled water. FOR SAFETY: When Servicing Machine, Avoid Contact With Battery Acid. 830 MM332 (3- -96)

  • Page 80: Belts And Chains

    A static drag chain prevents the buildup of static electricity in the machine. The chain is attached to the machine at the rear main brush skirt. Make sure the chain is touching the floor at all times. 830 MM332 (3- -96)

  • Page 81: Debris Hopper

    Pull the drawstring tight. 10. Drill and rivet the filter to the shaker frame. 11. Put the filter shaker frame and filter in the hopper. 12. Install the retaining nuts for the filter shaker frame and tighten. 830 MM332 (3- -96)

  • Page 82: Thermo Sentryt

    Do not overtighten this adjustment, or premature wear of the chain may result. Check the conveyor skirts and paddles for damage and wear daily. 830 MM332 (3- -96)

  • Page 83: Brushes

    2. Lower the main brush. 3. Stop the engine. FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake, Turn Off Machine And Remove Key. 4. Remove the right side main brush access door. 830 MM332 (3- -96)
  • Page 84 MAINTENANCE 5. Remove the hardware holding the skid plates to the brush idler plate. 6. Remove the hardware holding the links to the brush idler plate. Remove the brush chains and the skid chain. 830 MM332 (3- -96)
  • Page 85 17. Mount the skid plates to the idler plate with the hardware removed earlier. 18. Put the right side main brush access door back on the machine. 19. Check and adjust the main brush pattern. 830 MM332 (3- -96)

  • Page 86: To Check And Adjust Main Brush Pattern

    (4 to 5 in). 6. To increase the width of the main brush pattern, turn the main brush down pressure nut counter-clockwise. To decrease the width of the main brush pattern, turn the main brush down pressure nut clockwise. 830 MM332 (3- -96)

  • Page 87: Side Brush

    3. Remove the side brush retaining hardware holding the brush to the drive hub. WARNING: Side Brush Can Move. Do Not Step On Side Brush. 4. Mount the new side brush to the drive hub with the hardware removed earlier. 830 MM332 (3- -96)

  • Page 88: Skirts And Seals

    Check the skirts for wear or damage daily. Replace the skirts when they no longer touch the ground. NOTE: Tire pressure and a full hopper will affect skirt clearances. 830 MM332 (3- -96)

  • Page 89: Door Seals

    HOPPER SEALS The hopper seals are located on the hopper door, the hopper filter cover, the dust filter, and the front opening of the hopper. Check the seals for wear or damage every 100 hours of operation. 830 MM332 (3- -96)

  • Page 90: Skids

    The parking brake is set with the parking brake lever that activates the service brakes. Adjust the parking brake whenever it becomes very easy to set, when the machine rolls after setting the parking brake, and every 200 hours of operation. 830 MM332 (3- -96)

  • Page 91: Tires

    90_ in the clockwise direction. Remove the red valve handle. WHEEL NUTS Check the wheel nut torque on the four wheels every 100 hours of operation. The proper torque is 260 -- 305 Nm (190 -- 225 ft lb). 830 MM332 (3- -96)

  • Page 92: Pushing Or Towing Machine

    FOR SAFETY: Before Leaving Or Servicing Machine; Stop On Level Surface, Set Parking Brake, Turn Off Machine And Remove Key. Block Machine Tires. 10184 The rear tie-down locations are through the rear channels of the main frame. 10185 830 MM332 (11- -97)

  • Page 93: Machine Jacking

    The rear jacking locations are the rear axle. FOR SAFETY: When Servicing Machine, Block Machine Tires Before Jacking Machine Up. FOR SAFETY: When Servicing Machine, Jack Machine Up At Designated Locations Only. Block Machine Up With Jack Stands. 09541 830 MM332 (3- -96)

  • Page 94: Storing Machine

    5. Remove the water filter cap, located next to the water pump, and empty it. 6. Leave the valves open if the machine is to be stored, or not used for an extended period. 830 MM332 (3- -96)

  • Page 95: Specifications

    40.2 kmh (25 mph) Maximum reverse speed 19.3 kmh (12 mph) Minimum steering diameter 8700 mm (343 in) Minimum turning radius 3960 mm (13 ft) Maximum rated climb and descent angle 12_ Empty hopper, 8_ Full hopper 830 MM332 (3- -96)

  • Page 96: Power Type

    TIRES Location Type Size Ply Rating Pressure Front and Rear (4) Bias Ply Pneumatic 7 x 12 in 759--828 kPa (110--120 psi) Front and Rear (4) Radial Pneumatic 7 x 12 in 930--1000 kPa (135--145 psi) 830 MM332 (8- -96)

  • Page 97: Machine Dimensions

    Extended 3025 mm (119 in) 2920 mm (115 in) 1905 mm (75 in) To Step 1510 mm 1765 mm (59.5 in) 2055 mm (69.5 in) (81 in) 5155 mm (203 in) BOTTOM VIEW 10954 MACHINE DIMENSIONS 830 MM332 (3- -96)

  • Page 98: Index

    Replacing side brush, 85 Recirculation air control knobs, 24 Side brush, 85 Right side brush lever, 28 Side brush bristle length, 85 Right side brush water valve knob, 29 Side brush spot light switch, 24 Button, Horn, 29 830 MM332 (11- -97)
  • Page 99 Oil pressure, Light, 19 Disengaging hopper support bar or pin, 51–52 Priming fuel system, 75–76 Specifications, 94 Disengaging hopper support pins, 54–56 Tachometer, 18 Water temperature, Gauge, 18 Engine oil pressure light, 19 Engine water temperature gauge, 18 830 MM332 (3- -96)
  • Page 100 Hydraulics, 69–71 Cooler, 72 Cooler Blocker, 70, 72 Filler cap, 69 Filters, 69 Fluid, 70 Fluid filter, 69 Fluid level, 7, 69 Hoses, 71 Purging air from the hydraulic lift system, 71 Reservoir, 69 System specifications, 94 830 MM332 (3- -96)
  • Page 101 Engine oil pressure, 19 Maintenance, 64 Front night sweeping light switch, 23 Intervals, 64–66 Glow plugs, 19 Recommended, 8 Hazard lights switch, 23 Maintenance chart, 64–66 Headlights, 30 Hopper door, 21 Hopper overload, 21 Hopper tilt, 21 830 MM332 (3- -96)
  • Page 102 Water tank low light, 20 Hoses, 72 Wet dust control, Filter, 76 Re--phasing the conveyor lift system, 71 Wet dust control system, Operation, 58–60 Rear night sweeping light switch, 23 Recirculation air control knobs, 24 Right side brush lever, 28 830 MM332 (3- -96)
  • Page 103 Tow by-pass, 90 Machine dimensions, 93 Towing machine, 90 Machine performance, 93 Travel speed, 93 Power type, 94 Steering, 94 Troubleshooting, 62, 63 Tires, 94 Turning radius, 93 Starting the machine, 38–40 Static drag chain, 78 830 MM332 (11- -97)
  • Page 104 Wheel pivots, Lubrication points, 67 Wheels Alignment, 89 CV joints, Lubrication, 67 Leaf springs, Lubrication, 67 Nuts, 89 Pivots points, Lubrication, 67 Windshield washer, 77 Windshield washer and wiper switch, 30 Windshield wiper, Blades, 77 Windshield wipers, Switch, 30 830 MM332 (3- -96)
