Tennant 810 Operator's Manual
  1. Manuals
  2. Brands
  3. Tennant Manuals
  4. Blower
  5. 810 LPG
  6. Operator's manual

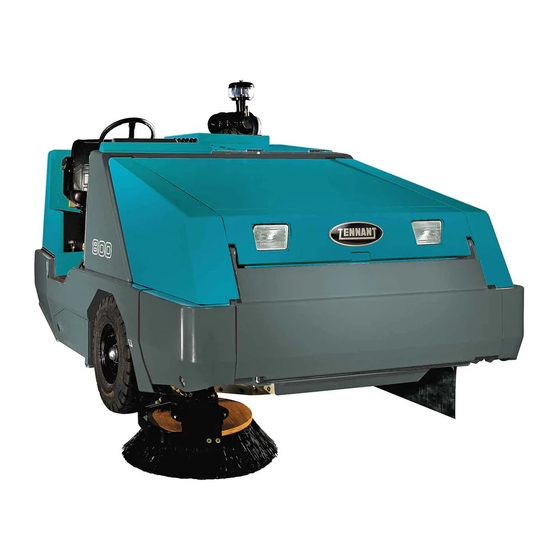

Tennant 810 Operator's Manual

Hide thumbs Also See for 810:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual
810
(Diesel)
(SN/ 003000- -
)

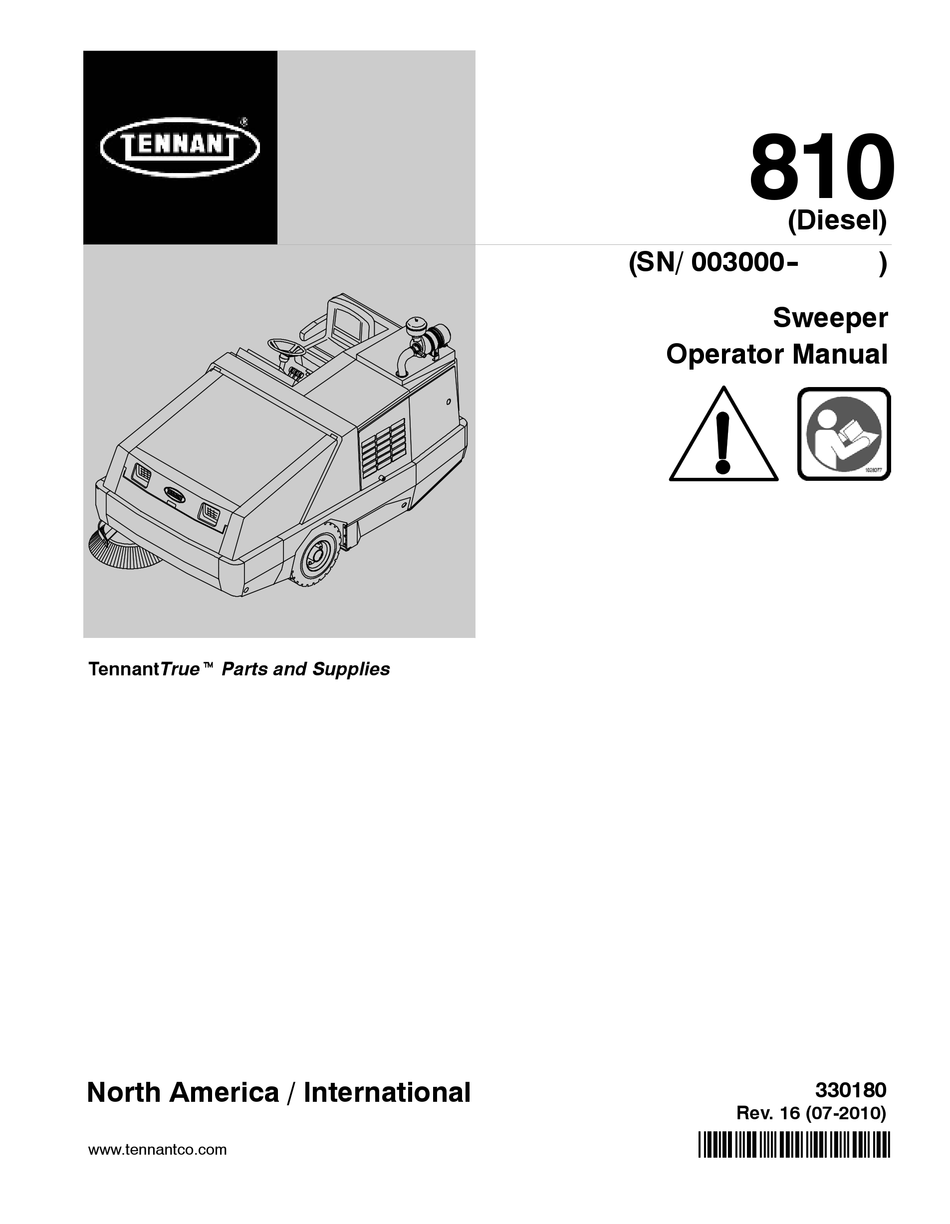

Sweeper
Operator Manual
TennantTruet Parts and Supplies
North America / International
330180
Rev. 16 (07-2010)
*330180*
www.tennantco.com
Home
Find... Go To..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 810 and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant 810

Summary of Contents for Tennant 810

  • Page 1 (Diesel) (SN/ 003000- - Sweeper Operator Manual TennantTruet Parts and Supplies North America / International 330180 Rev. 16 (07-2010) *330180* www.tennantco.com Home Find... Go To..
  • Page 2 II Speed and Thermo Sentry are United States registered trademarks of the Tennant Company. Specifications and parts are subject to change without notice. Original instructions, Copyright E 1998- -2000, 2002- -2005, 2006- -2010 TENNANT Company, Printed in U.S.A. Home Find... Go To..

  • Page 3: Table Of Contents

    (OPTION) ..... . AIR CONTROL VENTS (OPTION) ..810 Diesel 330180 (7- -10) Home Find... Go To..
  • Page 4 ........810 Diesel 330180 (5- -04) Home Find...

  • Page 5: Safety Precautions

    - - use cardboard to locate leaking - - if it is not in proper operating hydraulic fluid under pressure. condition. - - use tennant supplied or approved - - in flammable or explosive areas unless replacement parts. designed for use in those areas.
  • Page 6 HOPPER SUPPORT BAR LABEL - - LOCATED HOPPER LIFT ARMS LABEL - - LOCATED ON ON THE HOPPER LIFT ARMS CROSS-TUBE BOTH HOPPER LIFT ARMS. AND ON BOTH HOPPER LIFT ARMS. 810 Diesel 330180 (3- -07) Home Find... Go To..

  • Page 7: Operation

    Keep area well ventilated. - After the first 50 hours of operation, follow the recommended procedures stated in the MAINTENANCE CHART. 810 Diesel 330180 (5- -04) Home Find... Go To..
  • Page 8 We recommend taking advantage of a regularly scheduled service contract from your TENNANT representative. - Order parts and supplies directly from your authorized TENNANT representative. Use the parts manual provided when ordering parts. 810 Diesel 330180 (5- -04) Home Find... Go To..

  • Page 9: Machine Components

    A. Operator Seat B. Steering Wheel C. Engine Cover D. Engine Side Door E. Main Brush Access Door F. Hopper Cover G. Side Brush H. Instrument Panel Hopper Door J. Air Filter Assembly 810 Diesel 330180 (3- -07) Home Find... Go To..

  • Page 10: Control Panel Symbols

    Operating Lights Hopper Down Hopper Up Steering Wheel Tilt Horn Brushes Down and On Charging System Brushes Off Engine Oil Pressure Main Brush Down and On Engine Water Temperature Hydraulic Filter Clogged 810 Diesel 330180 (5- -04) Home Find... Go To..
  • Page 11 Circuit Breaker 4 Glow Plugs (Preheat) Engine Speed (For machines below serial number 004004) Idle (For machines serial number 004004 and above) Fast (For machines serial number 004004 and above) Diesel fuel only 810 Diesel 330180 (5- -09) Home Find... Go To..

  • Page 12: Controls And Instruments

    OPERATION CONTROLS AND INSTRUMENTS Earlier Versions 351082 810 Diesel 330180 (5- -04) Home Find... Go To..
  • Page 13 AA.Steering Column Tilt Lever BB.Circuit Breakers CC.Glow Plugs Light DD.Side Brush Switch, Left (Option) EE. Heater Cable (Option) FF. Clogged Hydraulic Filter Light GG.Throttle Lever (For machines serial number 004004 and above) 810 Diesel 330180 (5- -04) Home Find... Go To..

  • Page 14: Operation Of Controls

    Reverse: Press the bottom of the directional pedal with the heel of your foot. 08468 Neutral: Take your foot off the directional pedal and it will return to the neutral position. 08469 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 15: Brake Pedal

    Set: Pull the parking brake lever up. FOR SAFETY: Before leaving or servicing machine; stop on level surface, set parking brake, turn off machine and remove key. Release: Push the parking brake lever down. 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 16: Side Brush Switch

    The side brush down pressure knob changes the side brush contact with the sweeping surface. Increase Pressure: Turn the side brush down pressure knob counter-clockwise. Decrease Pressure: Turn the side brush down pressure knob clockwise. 810 Diesel 330180 (8- -99) Home Find... Go To..

  • Page 17: Hopper Door Lever

    Open: Pull and hold the hopper door lever in the Open position. 08474 Hold: Release the hopper door lever into the middle position. 08475 Close: Push and hold the hopper door lever in the Close position. 08476 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 18: Hopper Rollout Lever

    Out: Pull and hold the hopper rollout lever in the Out position. 08477 Hold: Release the hopper rollout lever into the middle position. 08478 In: Push and hold the hopper rollout lever in the In position. 08479 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 19: Hopper Lift Lever

    Hold: Release the hopper lift lever up and into the middle position. 08481 Lower: Push and hold the hopper lift lever in the Down position. 08482 HORN BUTTON The horn button operates the horn. Sound: Press the button. 08438 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 20: Charging System Light

    The Thermo Sentry will stop the vacuum fan. The Thermo Sentry has to be reset manually, see THERMO SENTRY in MAINTENANCE. 07760 810 Diesel 330180 (3- -05) Home Find... Go To..

  • Page 21: Main Brush Shut Down Light

    NOTE: Do not let the fuel tank empty completely. Air can enter the fuel system. The fuel system will need bleeding before the next engine start. 07764 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 22: Hourmeter

    On: Press the operating lights switch. The indicator light above the switch will come on. Off: Press the operating lights switch. The indicator light above the switch will go off. 07768 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 23: Filter Shaker Switch

    Start: Press the vacuum fan switch. The indicator light above the switch will come on. Stop: Press the vacuum fan switch. The indicator light above the switch will go off. 07769 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 24: Engine Speed Switch (For Machines Below Serial Number 004004)

    Idle: Press the engine speed switch until the second indicator light comes on. This speed is for idling. 07771 Fast: Press the engine speed switch until the third indicator light comes on. This speed is for sweeping. 07772 810 Diesel 330180 (3- -05) Home Find... Go To..

  • Page 25: Throttle Lever (For Machines Serial Number 004004 And Above)

    The throttle lever controls the engine speed. Fast: Pull the lever into the Fast position. This speed is for sweeping. 08456 Idle: Push the lever into the Idle position. This speed is for idling. 08457 810 Diesel 330180 (5- -04) Home Find... Go To..

  • Page 26: Ignition Switch

    Start: Turn the key all the way clockwise. Release the key as soon as the engine starts. Stop: Turn the key counter-clockwise. 810 Diesel 330180 (3- -07) Home Find... Go To..

  • Page 27: Main Brush And Power Throw Switch

    Power Throw position of the switch. The main brush and Power Throw switch NOTE: On earlier versions of the machine, the main brush switch was located by the ignition switch. 08464 810 Diesel 330180 (3- -05) Home Find... Go To..

  • Page 28: Steering Wheel

    STEERING WHEEL TILT LEVER The steering wheel tilt lever controls the angle of the steering wheel. Adjust: Pull out the tilt lever, move the wheel up or down, and release the tilt lever. 08439 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 29: Circuit Breakers

    NOTE: On earlier versions of the machine, the glow plug light was located on the left side of the horn button. 08927 810 Diesel 330180 (3- -07) Home Find... Go To..

  • Page 30: Main Brush Down Pressure Knob

    Open the Rear Door: Push the latch to the left. Open the Engine Cover: Push in on the cover latch. Open the Hopper Cover: Push the latch to the right. Open Rear Bumper Door: Push the latch to the left. 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 31: Operator Seat

    DO NOT rely on the machine hydraulic system to keep the hopper raised. WARNING: Raised hopper may fall. Engage hopper support bar. 08446 810 Diesel 330180 (12- -03) Home Find... Go To..

  • Page 32: Windshield Wiper Switch (Option)

    On: Pull the knob out until the air temperature is at the desired comfort level. For maximum heat, pull the knob out all the way. Off: Push the knob in all the way. PUSH- -OFF 350831 810 Diesel 330180 (3- -98) Home Find... Go To..

  • Page 33: Fan Speed Switch (Option)

    This creates warm, dry air which works best for defrosting. If this causes the windows to fog, turn on the air conditioner for drier air. 810 Diesel 330180 (9- -98) Home Find... Go To..

  • Page 34: How The Machine Works

    Clean as required. - Check the brakes and steering for proper operation. - Check the fuel level - Empty the debris hopper. - Check the service records to determine maintenance requirements. 810 Diesel 330180 (3- -07) Home Find... Go To..

  • Page 35: Starting The Machine

    15 to 30 seconds, depending on weather conditions. Colder weather requires longer time. NOTE: On some earlier versions, the light will go out after a few seconds when the engine is ready to start. 810 Diesel 330180 (3- -07) Home Find... Go To..
  • Page 36 Keep engine properly tuned. 6. Release the machine parking brake. 7. Select the Fast engine speed with the engine speed switch. (For machines below serial number 004004) 07772 810 Diesel 330180 (5- -04) Home Find... Go To..
  • Page 37 OPERATION 8. Move the throttle lever to the Fast position. (For machines serial number 004004 and above) 08456 9. Drive the machine to the area to be swept. 351081 810 Diesel 330180 (3- -07) Home Find... Go To..

  • Page 38: Sweeping And Brush Information

    Polypropylene and Wire 8-double Row Main Brush -- The wire bristles loosen slightly packed soilage and heavier debris. The polypropylene bristles sweep up the debris with excellent hopper loading. 08587 810 Diesel 330180 (9- -97) Home Find... Go To..
  • Page 39 The stiff wire bristles dig out soilage. This brush is also recommended for 08588 foundry sweeping where heat may melt synthetic bristles. 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 40: Sweeping

    If the hopper door light is on, close the hopper door. 07763 4. Place the main brush and Power Throw switch in the Normal or Power Throw position. 810 Diesel 330180 (3- -05) Home Find... Go To..
  • Page 41 OPERATION 5. Push the top of the side brush switch into the On/Down position. 6. Press the vacuum fan switch to start the vacuum. 7. Sweep as needed. 07769 810 Diesel 330180 (5- -04) Home Find... Go To..

  • Page 42: Stop Sweeping

    1. Push the bottom of the side brush switch into the Off/Up position. 2. Place the main brush switch in the middle Off position. 3. Press the filter shaker switch to shake the hopper dust filter. 07767 810 Diesel 330180 (8- -99) Home Find... Go To..

  • Page 43: Emptying The Hopper

    08481 5. Pull and hold the hopper rollout lever into the Out position. 6. Lower the hopper into the debris container to control dust. 08477 810 Diesel 330180 (3- -07) Home Find... Go To..
  • Page 44 Down position. NOTE: The hopper lift lever, hopper rollout lever, and the hopper door lever can be use together to lift the hopper, rollout the hopper, and open the hopper door. 08482 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 45: Stop The Machine

    3. Select the Idle position with the engine speed switch. (For machines below serial number 004004) 07771 4. Move the throttle lever to the Idle position. (For machines serial number 004004 and above) 08457 810 Diesel 330180 (3- -05) Home Find... Go To..
  • Page 46 6. Turn the ignition switch key counter-clockwise to stop the engine. Remove the switch key. FOR SAFETY: Before leaving or servicing machine; stop on level surface, set parking brake, turn off machine and remove key. 810 Diesel 330180 (5- -04) Home Find... Go To..

  • Page 47: Post-Operation Checklist

    Clean as required. - Check the brakes and steering for proper operation. - Check the fuel level - Empty the debris hopper. - Check the service records to determine maintenance requirements. 810 Diesel 330180 (3- -05) Home Find... Go To..

  • Page 48: Engaging Hopper Support Bar

    OPERATION ENGAGING HOPPER SUPPORT BAR 1. Set the machine parking brake. 2. Start the engine. 3. Raise the hopper all the way up. 08480 810 Diesel 330180 (8- -99) Home Find... Go To..
  • Page 49 5. Slowly lower the hopper so the support bar rests on the bar stop on the machine frame. WARNING: Lift arm pinch point. Stay clear of hopper lift arms. 08482 6. Shut the engine off. 810 Diesel 330180 (8- -99) Home Find... Go To..

  • Page 50: Disengaging Hopper Support Bar

    2. Raise the hopper slightly to release the hopper support bar. 08480 3. Put the hopper support bar in the storage clip. WARNING: Lift arm pinch point. Stay clear of hopper lift arms. 08590 810 Diesel 330180 (8- -99) Home Find... Go To..

  • Page 51: Operation On Inclines

    Drive the machine slowly on inclines. Use the brake pedal to control machine speed on descending inclines. The maximum rated incline is 8.5_. FOR SAFETY: When using machine, move machine with care when hopper is raised. 810 Diesel 330180 (8- -99) Home Find... Go To..

  • Page 52: Options

    2. Turn off the vacuum fan by pressing the vacuum fan switch. The indicator light above the switch will go off. 07769 3. Turn off and lift the main brush by placing the switch in the middle Off position. 810 Diesel 330180 (3- -05) Home Find... Go To..
  • Page 53 7. Remove the vacuum wand and hose from the mounting clips and assemble them together. 8. Connect the vacuum hose to the vacuum adaptor tube in front of the hopper. 810 Diesel 330180 (8- -99) Home Find... Go To..
  • Page 54 07769 11. Vacuum the area as needed. 12.When done vacuuming, turn off the vacuum fan by pressing the vacuum fan switch. The indicator light above the switch will go off. 07769 810 Diesel 330180 (9- -97) Home Find... Go To..
  • Page 55 16.Replace the vacuum plug into the vacuum adaptor tube in front of the hopper, disengage the lift arm and close the forward hopper access door. 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 56: Regenerative Filter System (Rfs)

    Check for any signs of dust tracking that may be caused by a bad seal or filter. Repair a necessary. Perform this check periodically while using the sweeper with the RFS option. 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 57: Machine Troubleshooting

    Hopper full Empty hopper Hopper floor skirts worn or Replace floor skirts damaged Hopper door partially or Close the hopper door completely open Wrong sweeping brush Contact TENNANT representative for recommendations 810 Diesel 330180 (5- -04) Home Find... Go To..

  • Page 58: Maintenance

    Check for damage, wear, and adjustment Check for damage, wear, and Main brush adjustment Check brush pattern Side brush Check for damage, wear, and adjustment Check brush pattern Hopper dust filter Shake 810 Diesel 330180 (3- -07) Home Find... Go To..
  • Page 59 5W30 (For machines serial number 004004 and above) API diesel classification CG--4 or better HYDO TennantTrue premium hydraulic fluid or equivalent . . . Special lubricant, Lubriplate EMB grease (TENNANT part no. 01433--1) . . . Water and permanent-type ethylene glycol anti-freeze, --34_ C (--30_ F) 810 Diesel 330180 (7- -10) Home Find...

  • Page 60: Lubrication

    Drain the engine oil when it is warm. Fill the engine with oil to the level indicated on the oil dipstick. The engine oil capacity is 10.0 L (10.6 qt) including the oil filter. 810 Diesel 330180 (8- -08) Home Find... Go To..

  • Page 61: Rear Wheel Support

    (TENNANT part no. 01433--1). 08579 SIDE BRUSH PIVOT PINS The side brush pivot pins should be lubricated with Lubriplate EMB grease (TENNANT part no. 01433--1) every 200 hours of operation. 08581 MAIN BRUSH ADJUSTMENT The main brush adjustment, located on the right side of the main brush, has one grease fitting for lubrication.

  • Page 62: Hydraulics

    TennantTrue Fluid Previous Fluid NOTE: Change the hydraulic fluid, filter, and suction strainer after every 800 hours for ALL machines that have NOT consistently used TennantTrue premium hydraulic fluid or equivalent. 810 Diesel 330180 (7- -10) Home Find... Go To..

  • Page 63: Hydraulic Fluid

    The quality and condition of the hydraulic fluid play a very important role in how well the machine operates. TENNANT’s hydraulic fluid is specially selected to meet the needs of TENNANT machines. TENNANT’s hydraulic fluids provide a longer life for the hydraulic components. There are two fluids...

  • Page 64: Hydraulic Hoses

    --34_ C (--30_ F) rating. The coolant level should be 25 to 50 mm (1 to 2 in) below the filler opening. FOR SAFETY: When servicing machine, avoid contact with hot engine coolant. 810 Diesel 330180 (7- -10) Home Find... Go To..

  • Page 65: Air Filter Indicator

    The air filters cannot be cleaned. All machines have a heavy duty safety element inside the standard element. Replace this element, do not clean it, after the regular element has been damaged or changed three times. 810 Diesel 330180 (7- -10) Home Find... Go To..

  • Page 66: Water Separator/Fuel Filter

    (0.39 to 0.43 in) for a used belt with a force of 10 kg (22 lb). Check and adjust the belt tension every 100 hours of operation. WARNING: Moving belt and fan. Keep away. 08486 810 Diesel 330180 (7- -10) Home Find... Go To..

  • Page 67: Static Drag Chain

    100 hours of operation. NOTE: In extremely dusty sweeping environments, clean or replace the filter as often as necessary. 810 Diesel 330180 (7- -10) Home Find... Go To..

  • Page 68: Debris Hopper

    FOR SAFETY: Before leaving or servicing machine; stop on level surface, set parking brake, turn off machine and remove key. 2. Open the hopper cover. 3. Disconnect the shaker motor wire connectors. 810 Diesel 330180 (9- -97) Home Find... Go To..
  • Page 69 13. Put the filter and shaker frame in the hopper. 08593 14. Install the four retaining screws and tighten. 15. Connect the shaker motor wire connectors. 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 70: Thermo Sentry

    FOR SAFETY: Before leaving or servicing machine; stop on level surface, set parking brake, turn off machine and remove key. 2. Raise the main brush. 3. Open the right side main brush access door. 810 Diesel 330180 (5- -09) Home Find... Go To..

  • Page 71: To Check And Adjust Main Brush Pattern

    1. Apply chalk, or some other material that will not blow away easily, to a smooth, level floor. 2. Raise the side brush and main brush and position the main brush over the chalked area. 810 Diesel 330180 (9- -97) Home Find... Go To..
  • Page 72 9. To increase the width of the main brush pattern, turn the main brush down pressure knob counter-clockwise. To decrease the width of the main brush pattern, turn the main brush down pressure knob clockwise. 810 Diesel 330180 (9- -97) Home Find... Go To..
  • Page 73 Tighten the drive end plate mounting bolts. C. Check the main brush pattern and readjust as necessary. Then adjust the width of the main brush pattern. 08490 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 74: Power Throw

    8. Remove the brush. 9. Slide the new brush on the drive end of the Power Throw. 10. Slide the brush idler plate plug onto the brush. 11. Mount the idler plate. 08584 810 Diesel 330180 (5- -04) Home Find... Go To..

  • Page 75: Side Brush

    7. Slide the new side brush onto the side brush drive shaft. 8. Insert the side brush retaining pin through the side brush hub and shaft and secure. 08466 810 Diesel 330180 (5- -09) Home Find... Go To..

  • Page 76: Skirts And Seals

    NOTE: The brush door skirts have slotted holes to allow for a ground clearance adjustment. The door must be closed for proper adjustment. 08493 NOTE: Tire pressure will affect skirt clearances. 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 77: Rear Skirts

    The hopper door seals are located on the hopper door. They seal the hopper when the hopper door is closed. Check the seals for wear or damage every 100 hours of operation. 08497 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 78: Hopper Side Skirt

    100 hours of operation. HOPPER VACUUM FAN SEAL The hopper vacuum fan seal is mounted on the the vacuum fan inlet bracket. Check the seal for wear or damage every 100 hours of operation. 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 79: Brakes And Tires

    400 hours of operation. 08501 PARKING BRAKE Adjust the parking brake whenever it becomes very easy to set, when the machine rolls after setting it, and after every 200 hours of operation. 810 Diesel 330180 (9- -97) Home Find... Go To..

  • Page 80: Tires

    Torque the rear wheel nuts twice in the pattern shown to 163 to 176 Nm (120 to 130 ft lb) after the first 50-hours of operation, and every 800 hours there after. 810 Diesel 330180 (7- -10) Home Find... Go To..

  • Page 81: Pushing, Towing, And Transporting The Machine

    08576 Turn the bypass valve 90_ from the normal position before pushing or towing the machine. The illustration shows the bypass valve in the pushing or towing position. 810 Diesel 330180 (4- -01) Home Find... Go To..

  • Page 82: Transporting The Machine

    The rear tie-down locations are through the U--bolt section of the main frame under the side bumpers toward the rear. 810 Diesel 330180 (4- -01) Home Find... Go To..
  • Page 83 Do not drive the machine off the truck or trailer unless the loading surface is horizontal AND 380 mm (15 in) or less from the ground. 810 Diesel 330180 (4- -01) Home Find... Go To..

  • Page 84: Machine Jacking

    Before storing the machine for an extended period of time, the machine needs to be prepped to lessen the chance of rust, sludge, and other undesirable deposits from forming. Contact TENNANT service personnel. 810 Diesel 330180 (4- -01) Home Find... Go To..

  • Page 85: Specifications

    Maximum reverse speed 7.3 kmh (4.5 mph) Minimum aisle turn width, left 3450 mm (135 in) Minimum aisle turn width, right 4675 mm (184 in) Maximum rated climb and descent angle 8.5_ 810 Diesel 330180 (6- -02) Home Find... Go To..

  • Page 86: Power Type

    Intermediate speed, under load Governed speed, under load 1350 rpm 2000 rpm 2400 + 50 rpm Engine lubricating oil with filter 10.0 L (10.6 qt) with remote filter, API diesel classification CG--4 or better 810 Diesel 330180 (8- -08) Home Find... Go To..

  • Page 87: Steering

    Pressure Front (2) Pneumatic 6.5 x 23.5 in 690 -- 758 kPa (100 -- 110 psi) Rear (1) Pneumatic 6.5 x 23.5 in 690 -- 758 kPa (100 -- 110 psi) 810 Diesel 330180 (7- -10) Home Find... Go To..

  • Page 88: Machine Dimensions

    SPECIFICATIONS 1778 mm (70 in) 3048 mm (120 in) TOP VIEW 1875 mm (73.8 in) 1911 mm (75.2 in) SIDE VIEW FRONT VIEW 08774 MACHINE DIMENSIONS 810 Diesel 330180 (6- -02) Home Find... Go To..

  • Page 89: Index

    (option), 30 replacing main brush, 68–70 replacing Power Throw brush, 72–74 replacing side brush, 73 side brush, 73 side brush minimum bristle length, 73 Brushes switch, 25 Bypass valve, 79 810 Diesel 330180 (7- -10) Home Find... Go To..
  • Page 90 Regenerative Filter System (RFS) (option), fluid filter, 61 54–55 fluid level, 60 water seperator/fuel, 64 fluid reservoir, 60 Front wheel, 78 propelling motor, 62 Fuel filter/water seperator, 64 Fuel level gauge, 19 810 Diesel 330180 (7- -10) Home Find... Go To..
  • Page 91 18 Operator seat, 29 main brush shut down, 19 Lubrication engine, 58 front wheel bearings, 59 main brush adjustment, 59 rear wheel support, 59 side brush pivot pins, 59 810 Diesel 330180 (7- -10) Home Find... Go To..
  • Page 92 Rear bumper door latch, 28 machine performance, 83 Rear door latch, 28 power type, 84 steering, 85 Rear wheel, 78 tires, 85 Rear wheel support, lubrication, 59 Regenerative Filter System (RFS) (option), 54–55 810 Diesel 330180 (7- -10) Home Find... Go To..
  • Page 93 Tie down location, 81 Tires, 77–79 Front wheel, 78 pressure, 78 rear wheel, 78 specifications, 85 Towing machine, 79 Transporting machine, 79 Transporting the machine, 80 Travel speed, 83 Troubleshooting, 55 810 Diesel 330180 (7- -10) Home Find... Go To..
  • Page 94 INDEX 810 Diesel 330180 (7- -10) Home Find... Go To..
