- Page 1 LM-81AM Vane Anemometer Instruction Manual 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Product Disposal and Recycling ..............8 Product Support .................... 8 Introduction Thank you for purchasing your REED LM-81AM Vane Anemometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Safety
Safety Never attempt to repair or modify your instrument. Dismantling your product, other than for the purpose of replacing batteries, may cause damage that will not be covered under the manufacturer's warranty. Servicing should only be provided by an authorized service center. Features • Measures fpm, m/s, kph, mph and knots • Easy to operate, compact design... -
Page 4: Specifications
Specifications Type: Vane Measuring Ranges: fpm: 80 to 5910 m/s: 0.4 to 30 km/h: 1.4 to 108 mph: 0.9 to 67 knots: 0.8 to 58.3 Accuracy: ≤3937fpm, 20m/s, 72km/h, 44.7mph, 38.9 knots: ±3% rdg. >3937fpm, 20m/s, 72km/h, 44.7mph, 38.9 knots: ±4% rdg. Resolution: fpm: 1 m/s, km/h, mph, knot: 0.1 Vane Diameter: 1.3" (32mm) Response Time: <1 second Display: 4-digit LCD... -
Page 5: Instrument Description

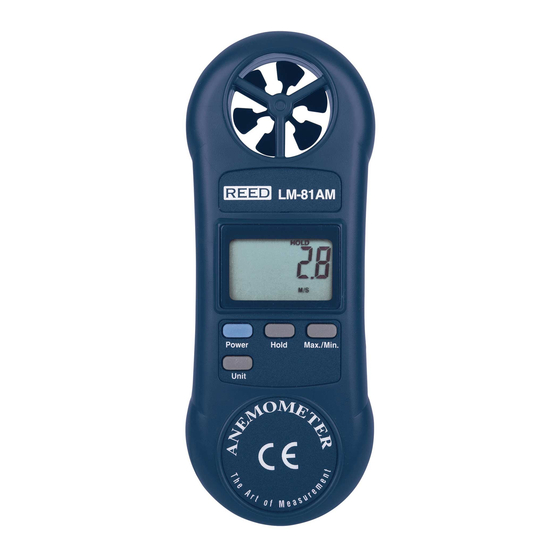

Instrument Description LM-81AM 1. Air Flow Sensor 5. Wrist Strap 2. LCD Display 6. Battery Compartment/Cover 3. Power Button 7. Hold Button 4. Unit Button 8. MAX/MIN Button 1.800.561.8187 information@itm.com www. .com... -
Page 6: Operating Instructions
Operating Instructions Turn the instrument on or off by pressing the POWER button. Press the UNIT button to cycle through the units of measurements (fpm, m/s, kph, mph and knots). When selected, face the Air Flow Sensor to the source of wind. Note: For the best results when using your instrument, make sure the airstream and the sensor are aligned (±20 degrees maximum) and wait approximately 3 seconds for the reading to stabilize. -
Page 7: Battery Replacement
Battery Replacement When the low battery icon appears on the left corner of LCD display, you will need to replace the battery. Remove the battery cover using a Phillips head screwdriver, insert a new 9V battery and secure the cover. Accessories and Replacement Parts CA-52A Soft Carrying Case Don't see your part listed here? For a complete list of all accessories and... -
Page 8: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 9 1.800.561.8187 information@itm.com www. .com...
- Page 10 TesT & MeAsure wITh ConfIdenCe CheCk ouT our LATesT ProduCTs! 1.800.561.8187 information@itm.com www. .com...
