- Page 1 LM-81LX Light Meter Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Product Support .................... 8 Introduction Thank you for purchasing your REED LM-81LX Light Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Safety
Safety Never attempt to repair or modify your instrument. Dismantling your product, other than for the purpose of replacing batteries, may cause damage that will not be covered under the manufacturer's warranty. Servicing should only be provided by an authorized service center. Features • Easy to operate, compact design • 5-digit LCD display... -
Page 4: Specifications
Specifications Measuring Ranges: Lux: 0 to 20,000 Fc: 0 to 2,000 Accuracy: ±(5% rdg.+ 8 dgt) Resolution: Lux: 1, 10 Fc: 0.1, 1 Response Time: <1 second Sensor Type: Photo diode & color correction filter Autoranging: Display: 5-digit LCD Data Hold: Min: Max: Auto Zero: Overrange Indicator: Sampling Rate: 1 time/second Internal Memory:... -
Page 5: Instrument Description

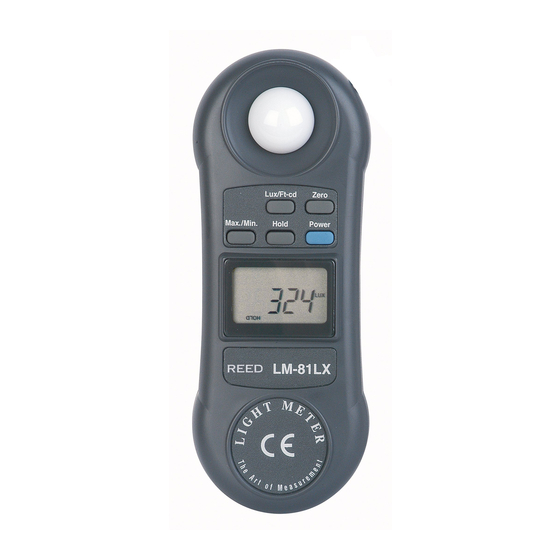

Instrument Description LM-81LX 1. Lux/Ft-cd Button 6. Battery Compartment/Cover 2. MAX/MIN Button 7. Zero Button 3. LCD Display 8. Power Button 4. Wrist Strap 9. Hold Button 5. Light Sensor GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 6: Operating Instructions
Operating Instructions Turn the instrument on or off by pressing the POWER button. Press the Lux/Ft-cd button to toggle between Lux and Foot Candles units of measurement. When selected, face the Light Sensor under the light source. When the readings are stable, note the measured value. Data Hold While taking a measurement, press the HOLD button to freeze the current readings on the display. -
Page 7: Battery Replacement
Battery Replacement When the low battery icon appears on the left corner of LCD display, you will need to replace the batteries. Remove the battery cover using a Phillips head screwdriver, insert a new 9V battery and secure the cover. Accessories and Replacement Parts CA-52A Soft Carrying Case Don't see your part listed here? For a complete list of all accessories and... -
Page 8: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 9 TesT & Measure wITh ConfIdenCe CheCk ouT our LaTesT ProduCTs! GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 10 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
