M500XJ M500XJ
Zone 2
Isolator Module Isolator Module
Zone 1 Zone 3
M50xMJ Monitor Module M50xMJ Monitor Module
or XP Transponder or XP Transponder
M500XJ
M500XJ
Isolator Module
Isolator Module
nfpastl7
Channel A Channel B
LIB-200 SLC Loop
N7

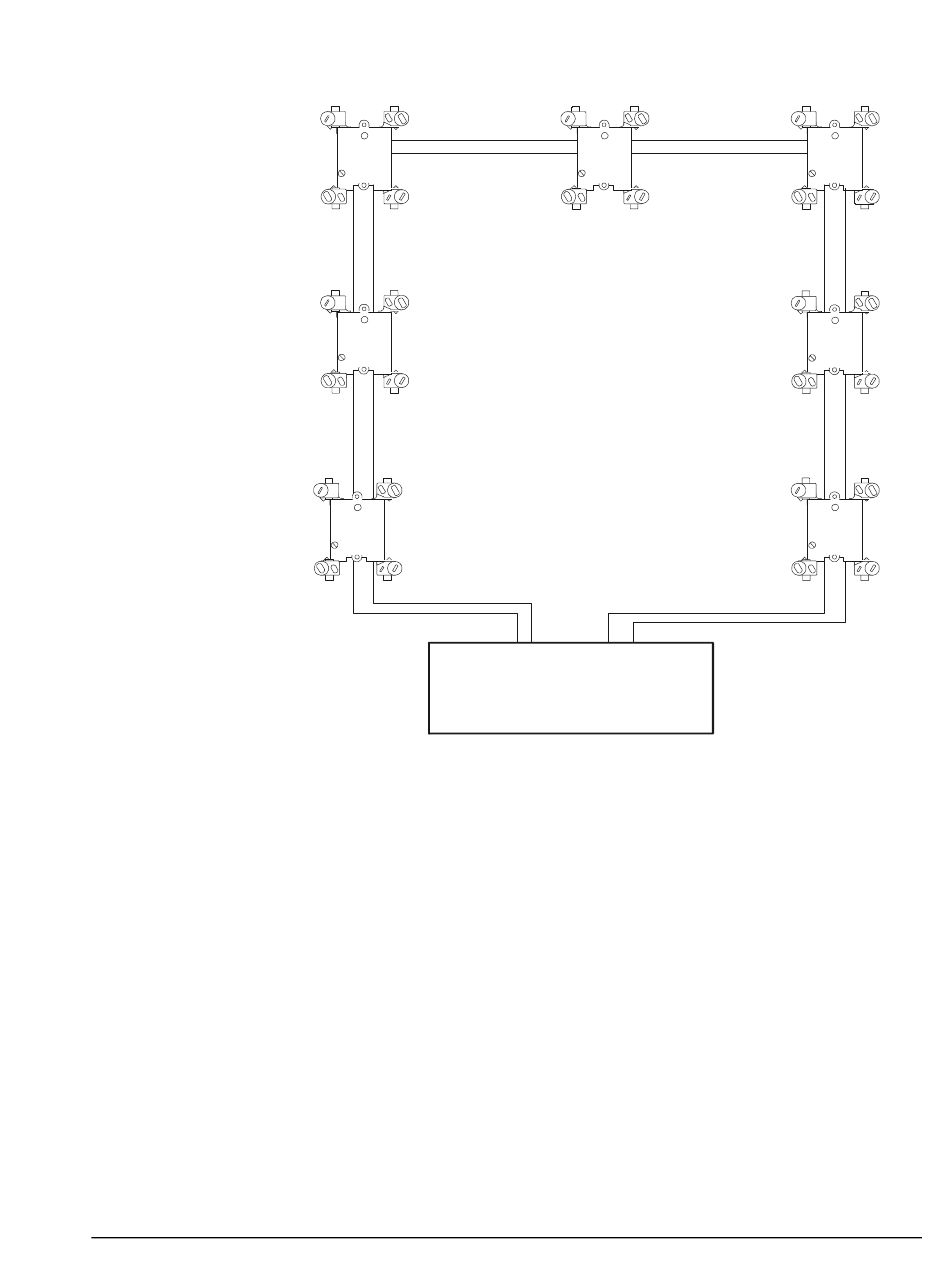

Figure 53: NFPA Style 7 SLC
Note: When more than 100 isolator modules/isolator bases are connected
to an SLC, decrease the 198 address capacity by two address for
every isolator in excess of 100.
Hardware Installation—Installing the IFC-1010/2020 81
