110 Hardware Installation—Installing the IFC-1010/2020
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Terminals 1-4:
Provide wiring for one PRN printer to this
unsupervised circuit.
Terminals 5-8:
Provide connection to the Keltron VS4095/5 printer
or any UL EDP Listed printer. Connection is not
supervised. EDP Listed printers serve in an ancillary
capacity only.
Terminals 9-12:
Provide connection for 1-25 CRTs to this supervised
circuit.
Terminals 13-16:
Provide connection to UL EDP Listed display monitors.
Devices are not supervised and serve in an ancillary
capacity only.

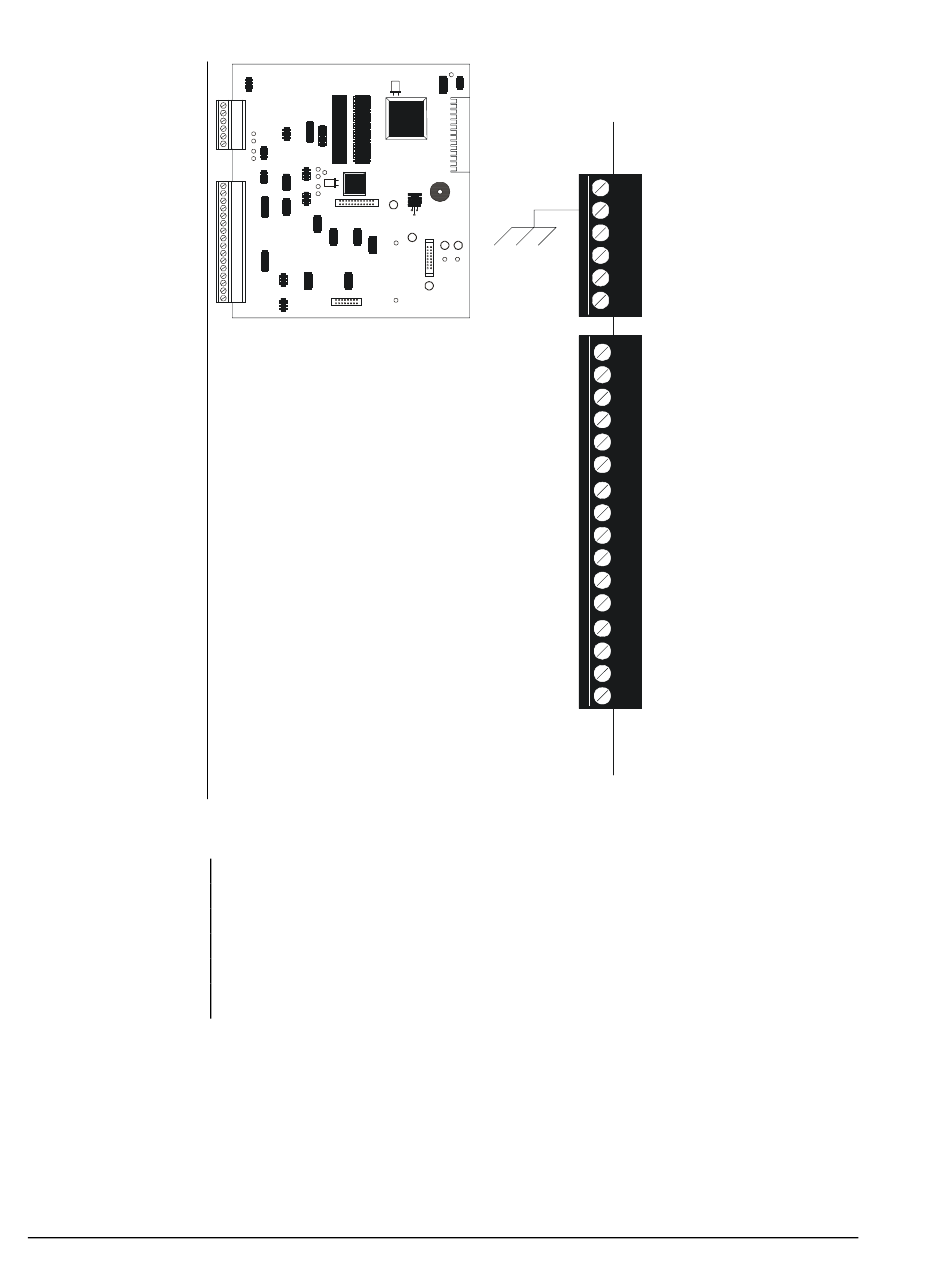

Figure 79: SIB-NET/Terminal Designations
Note:*Place Switch 'SW1', located in the upper left corner of the SIB
board, in the 'OUT' position if only the primary EIA-485 (RS-485)
Annunciator port (P5 Terminals 5 and 6) are used. SW1 should be
placed in the 'IN' position if both the primary EIA-485 port and the
secondary port (P5 Terminals 3 and 4) are to be used to
communicate with annunciator devices.
P5
1
EIA-485 Reference
2
Earth Ground
3
EIA-485 (+)
4
EIA-485 (-)
5
EIA-485 (+)
6
EIA-485 (-)
1
EIA-232 Reference
2
Transmit to Printer
3
EIA-232 Reference
4
Receive from Printer
5
EIA-232 Reference
6 Transmit to AUX Printer
7 EIA-232 Reference
8
Ready/Busy from Keltron Printer
9
EIA-232 Reference
10
Transmit to CRT
11
EIA-232 Reference
12
Receive from CRT
13
EIA-232 Reference
14
Transmit to AUX Monitor
15
EIA-232 Reference
16
Receive from AUX Monitor
P3
