SCS-8
SCE-8
SCS-8L
SCE-8L
The Smoke Control Station (SCS-8) module uses eight groups of
four annunciator points for fan shutdown control or other heating,
ventilation or air conditioning functions.
The Smoke Control Expander (SCE-8) is used to expand the SCS-8 by an
additional eight groups of four annunciator points. Only one expander can
be used per SCS-8.
The Smoke Control Lamp Driver Station (SCS-8L) module uses
eight groups of four annunciator points for fan shutdown control or other
heating, ventilation, or air conditioning functions. Must be mounted in
custom graphic annunciator panel.
The Smoke Control Expander (SCE-8L) is used to expand the SCS-8L by
an additional eight groups of four annunciator points. Only one expander
can be used per SCS-8L. Must be mounted in custom graphic annunciator
panel.
An SCS annunciator can physically connect to the INA or fire panel, but
not both.

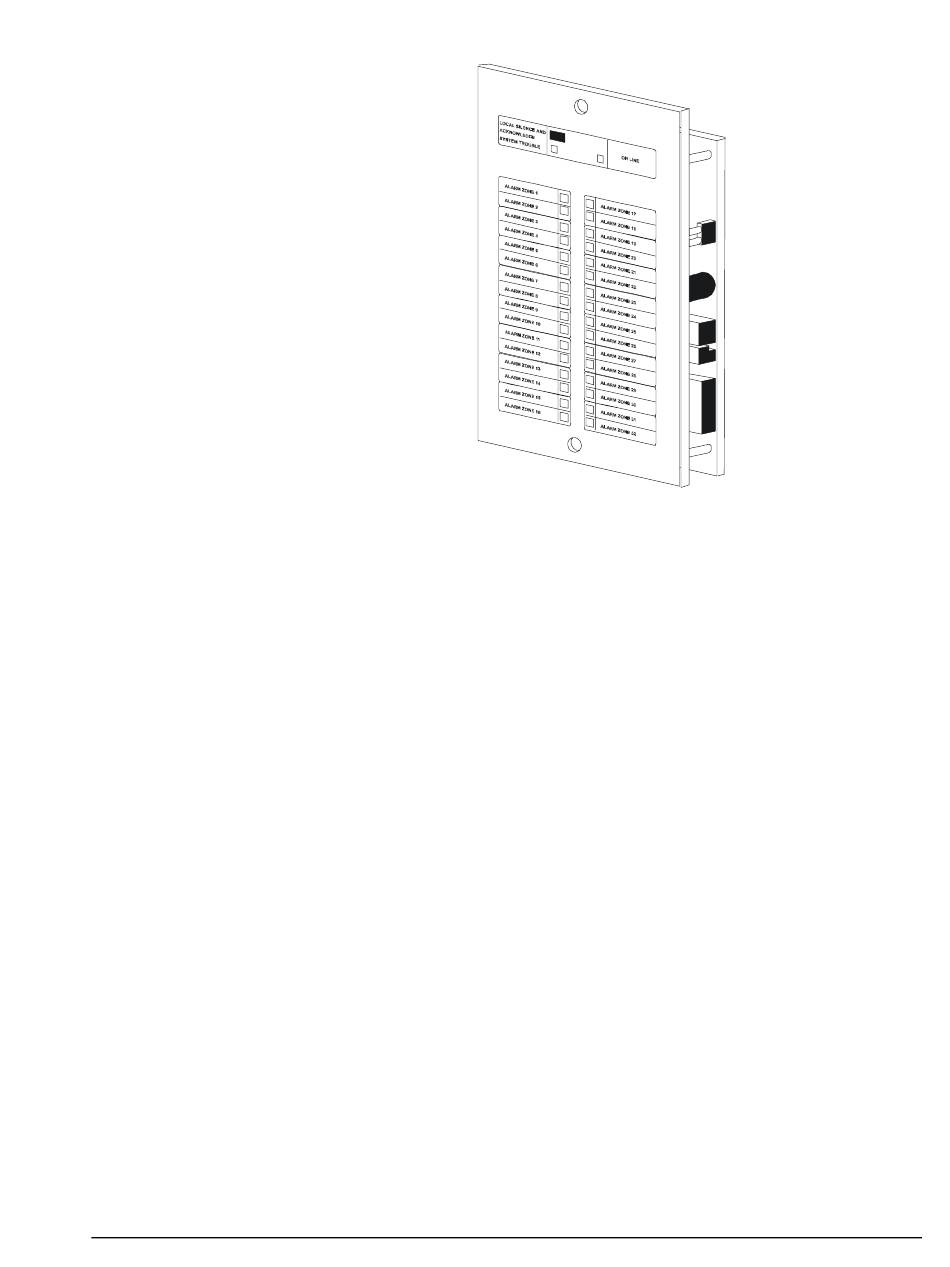

Figure 86: AEM-32A
