24 Hardware Installation—Installing the IFC-1010/2020
Any board with a 15-position receptacle suitable for use on the ICA-4 may
also be mounted on the 16-pin plug ICA-4L. The following nine boards
have 15-position receptacles and may be installed on the ICA-4L:
• CPU-2
• SIB-232
• CCM-1
When installing any board consisting of 15-position receptacles on the
16-pin plug ICA-4L, only Pins 1 through 15 will engage. The 16th pin will
remain on the outside of the board receptacle (refer to Figure 15).
A 16-position ICA-4L is required for Local mode general alarm bus
operation (refer to Loop Interface Boards [LIB-200, LIB-200 A, and
LIB-400] section).
15-position Receptacle

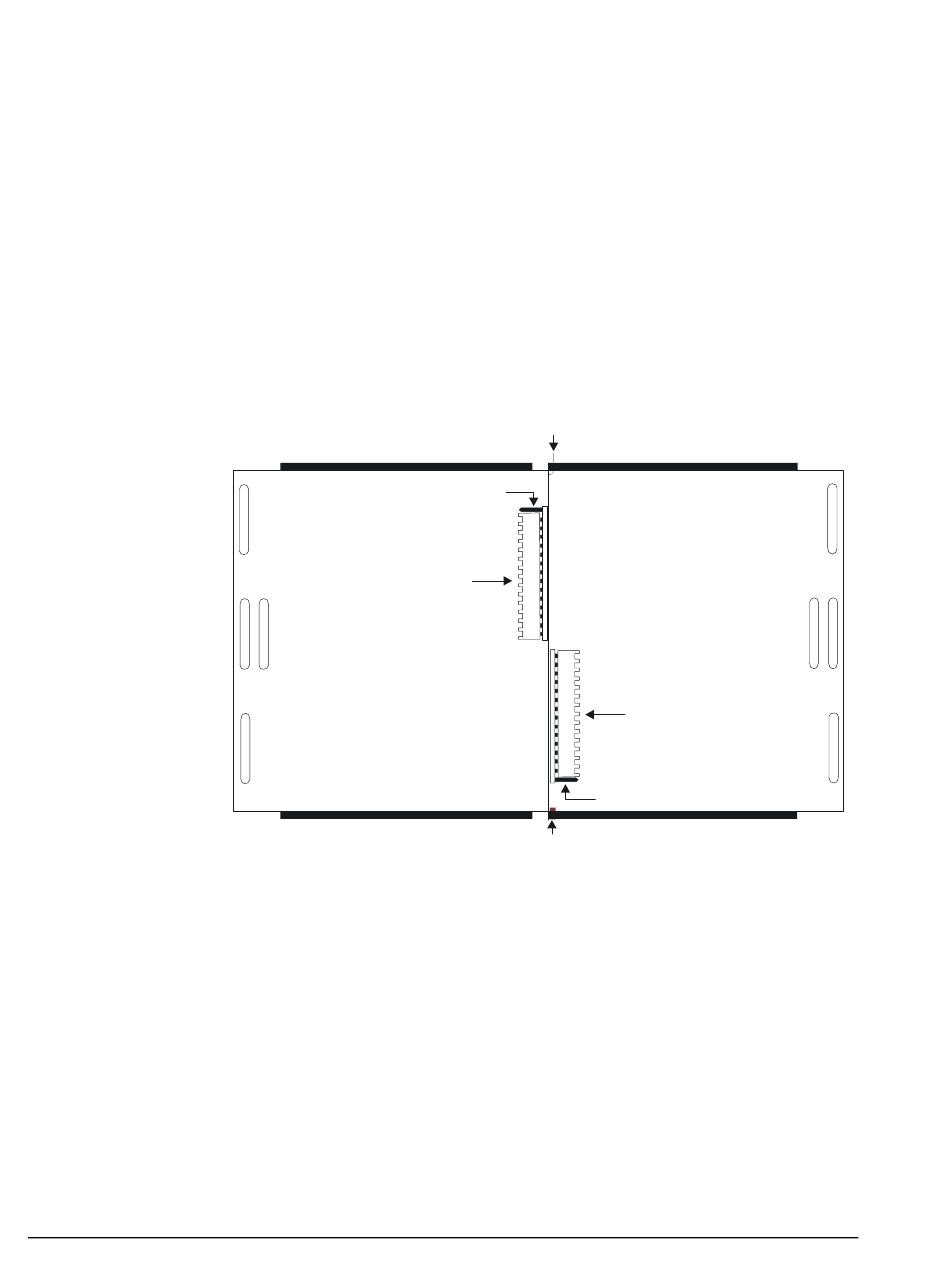

Figure 15: ICA-4L 15-position Receptacle Connections
Although cable, Part Number 75142 consists of a 15-pin plug and a
15-position receptacle (Figure 16), it can still be mated on the 16-pin plug
ICA-4L, only Pins 1 through 15 will engage. The 16th pin will remain on
the outside of the board receptacle (Figure 17).
• CPU-2020
• SIB-2048
• LIB-200
16 Pins
16th Pin
16th Pin
16-position Receptacle
• SIB-64
• UZC-256
• NIB-96
ICA-4L
15-position Receptacle
ica4L
