PRN-4 Remote Printer
7
3
2 1
Plug this DB-25 connector into the
EIA-232 port of the printer.
Notes:
Outputs are power-limited but not supervised.
Make connections with overall foil/braided shield twisted pair cable.
Near Letter Quality (NLQ) mode cannot be employed on this printer.

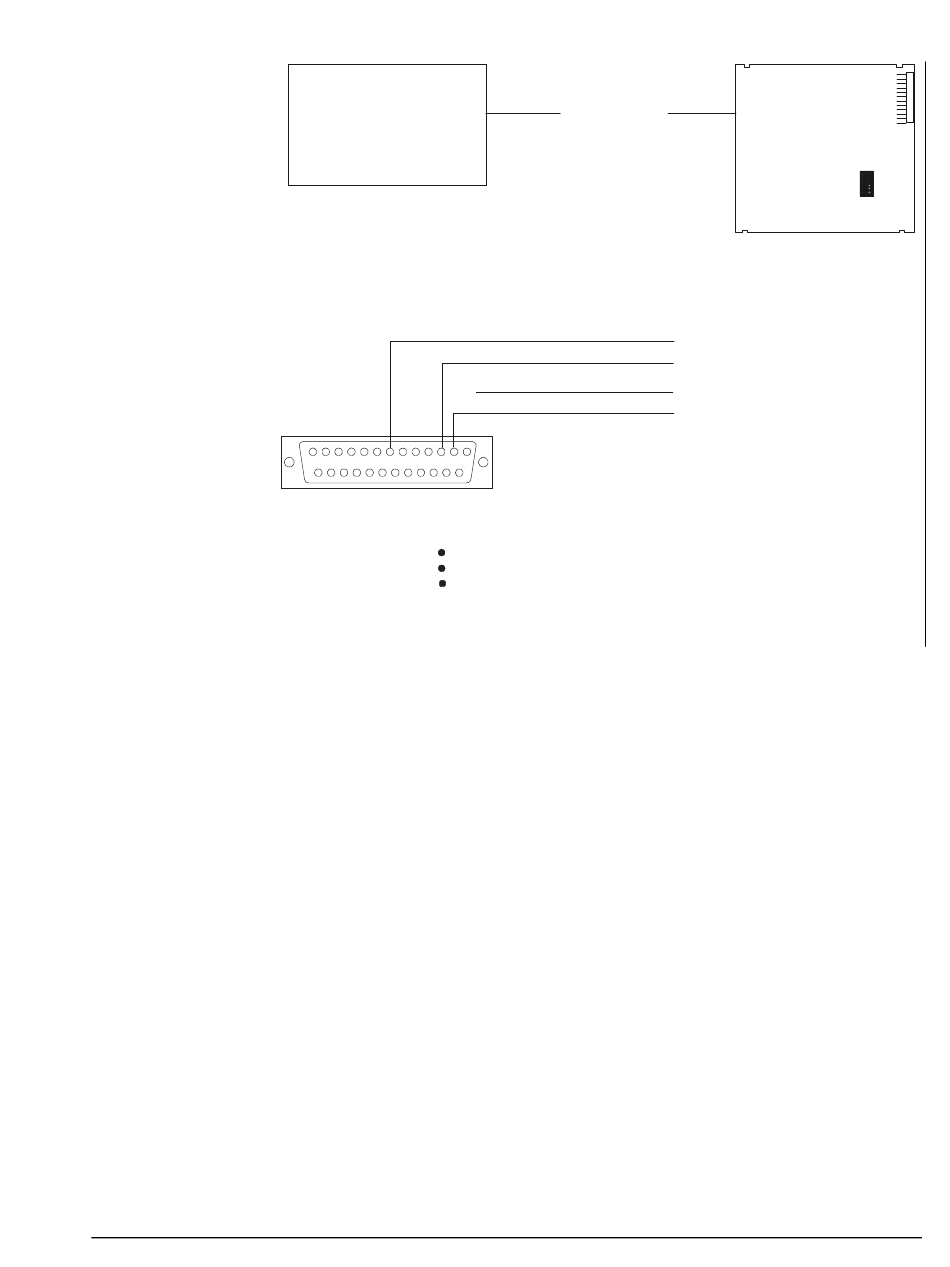

Figure 82: Remote Printer to SIB Connections
50 feet Maximum
(Typical)
Wiring distance limited by cable
capacitance. See EIA-232E standard.
Twisted Pair
nc
Twisted Pair
Hardware Installation—Installing the IFC-1010/2020
SIB-2048
or SIB-NET
SIB (Connector P3)
1
EIA-232 Reference
2
Transmit to Printer
3
EIA-232 Reference
4
Receive from Printer
sibcx
P1
P4
115
