NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER

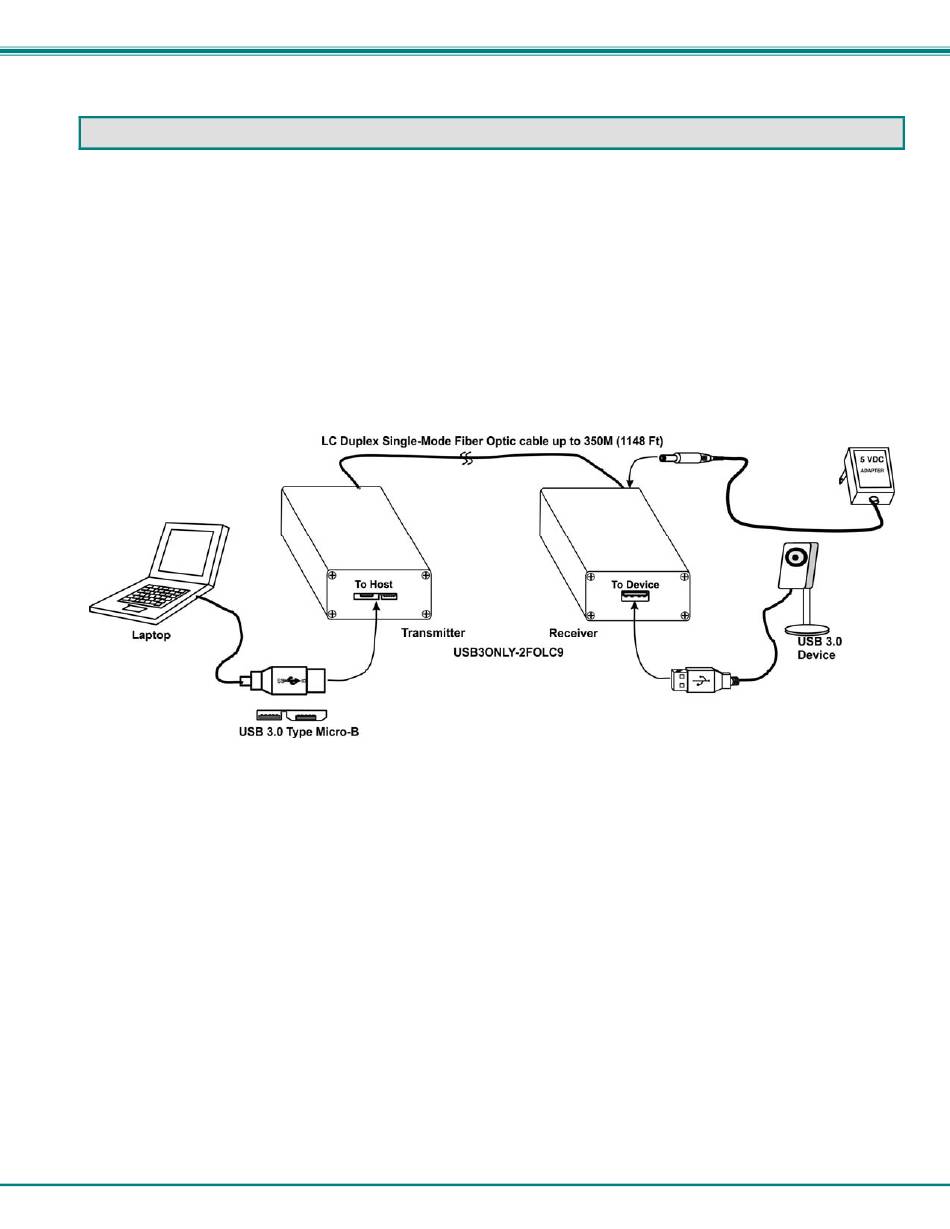

CONNECTIONS
1. Connect a LC Duplex Single-Mode Fiber cable up to 350 meters (1148 feet) long between the fiber connector on the
Transmitter and the fiber connector on the Receiver.
2. Connect the USB 3.0 device to the Receiver.
3. Connect the 5VDC AC adapter between a power source and the Receiver.
4. Connect the Host to the Transmitter with the USB 3.0 Type Micro B-to-USB Type A cable provided. The Transmitter will be
powered by the Host.
Once everything is connected, the power LED and the link LED should each illuminate.
