Summary of Contents for NTI XTENDEX USB3ONLY-2FOLC Series

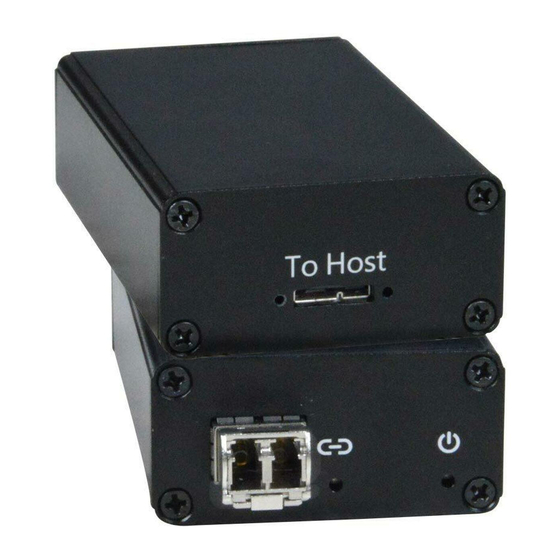

- Page 1 ® XTENDEX Series USB3ONLY-2FOLC9 USB 3.0 Device Extender via Single-Mode Fiber Installation and Operation Manual Local Unit (Transmitter) Remote Unit (Receiver) MAN382 Rev Date 7/21/20...
- Page 2 TRADEMARK XTENDEX is a registered trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2020 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
- Page 3 NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER INTRODUCTION USB3ONLY-2FOLC9 USB 3.0 extender provides the ability to extend the distance of your USB 3.0 (5 Gbps) device up to 350 meters (1148 feet) over LC Duplex Single mode fiber optic cables. The Receiver unit also supports USB Type-C devices using a conversion cable.
-
Page 4: Features And Functions
NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER FEATURES AND FUNCTIONS LABEL CONNECTOR/LED DESCRIPTION Fiber Optic For connection of Type LC Duplex Single mode fiber cable to go None Transceiver between the Transmitter and Receiver Indicate when connection between Transmitter and Receiver has Link symbol been established. - Page 5 NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER CONNECTIONS 1. Connect a LC Duplex Single-Mode Fiber cable up to 350 meters (1148 feet) long between the fiber connector on the Transmitter and the fiber connector on the Receiver. 2. Connect the USB 3.0 device to the Receiver.
-
Page 6: Technical Specifications
NTI USB 3.0 EXTENDER VIA DUPLEX SINGLE-MODE FIBER TECHNICAL SPECIFICATIONS USB Version supported USB 3.0 and later Input Port USB 3.0 Type Micro-B Output Port USB 3.0 Type A Speed SuperSpeed 5 Gbps Supported OS Windows 7,8,8.1 and 10; MacOS 10.x and above; Linux...
