Summary of Contents for NTI USB-IP-4

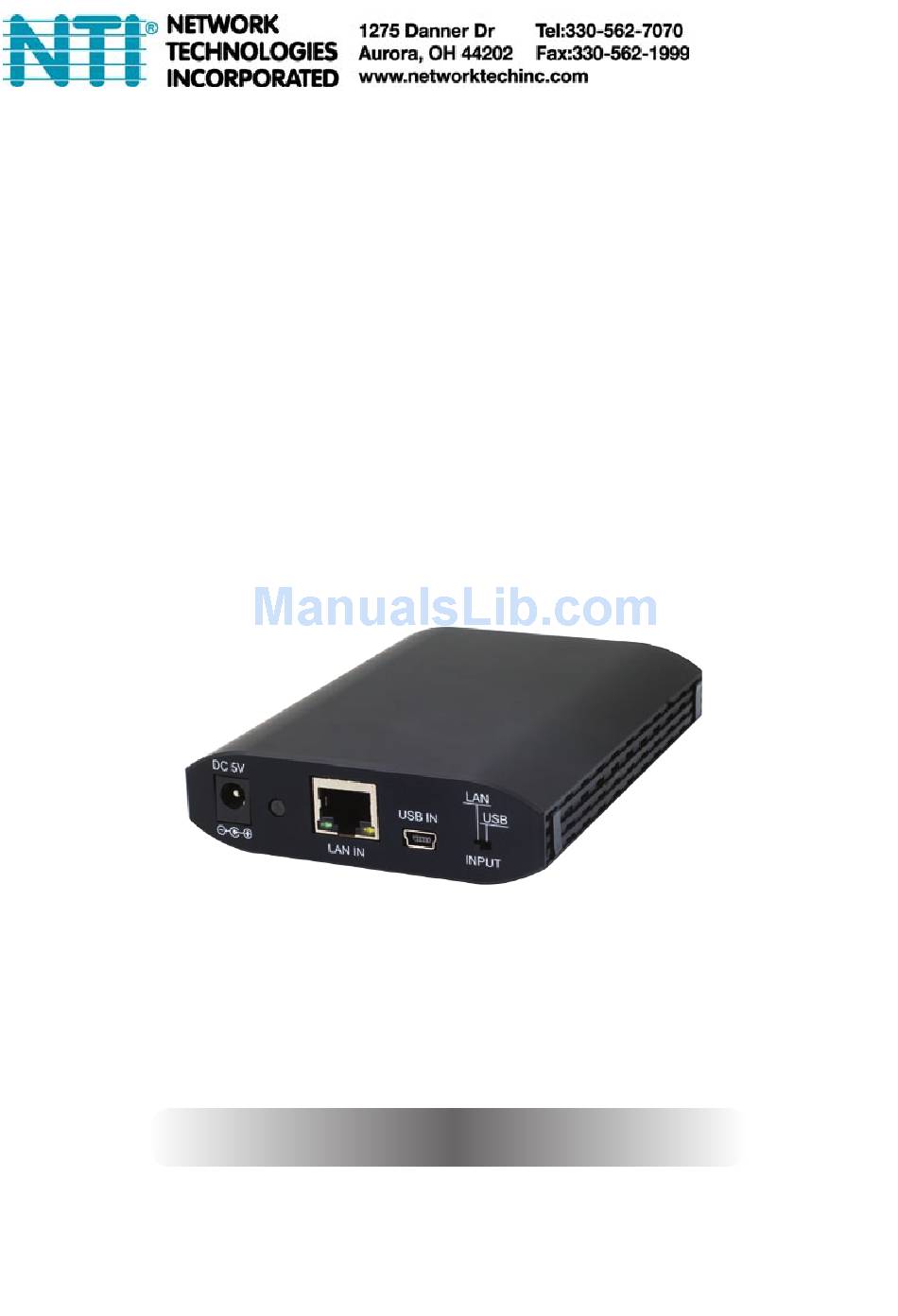

- Page 1 USB-IP-4 Quad USB over Ethernet Extender Operation Manual Operation Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Driver Installation ......5 6.4 Driver Uninstallation ......7 7. -
Page 4: Introduction
1. INTRODUCTION The Quad USB over Ethernet Extender allows you to utilize your USB devices over an existing network installation or connect directly to your PC or laptop. For home, commercial or retail environments this device allows hands-on control of USB devices for users within the same network. -
Page 5: Features
5. FEATURES • USB Hub - Control up to 4 four USB devices • Capable of high-speed (480 Mbps), full-speed (12 Mbps) and low- speed (1.5 Mbps) USB connection speeds (overall speed in LAN Mode might be limited by the bandwidth of the network) •... -
Page 6: Operation Controls And Functions

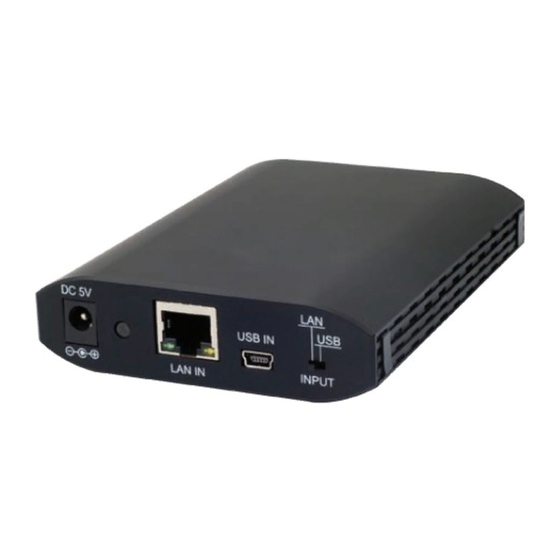

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V: Plug the 5V DC power supply included in the package into the unit and connect the adaptor to AC wall outlet. Power LED: LED will illuminate green when the device is connected to a power supply. -
Page 7: Rear Panel
6.2 Rear Panel USB 1~4: Use to connect to USB devices such as flash drives, external HDDs, digital cameras, printers, and etc. The USB over Ethernet Extender is a multi-function USB HUB which allows you to: A. LAN Mode: Allows PC/Laptops to access USB devices over an existing Intranet network. -
Page 8: Driver Installation
- Storage Devices (USB Flash Drive, USB Hard Drive, etc.): Provide bi- directional data transfer between the Storage Device and the Host Device. - Peripheral Devices (USB Printer, USB Scanner, etc.): Provide bi- directional data transfer between the Peripheral Device and the Host Device. - Page 9 When USB Server software has been installed completely, the icon for the USB Server should appear on both the desktop and in the System Tray area on the bottom right of the desktop. 2. Uses the USB Server Software Double click on the Launch USB Server icon from the desktop or from the System Tray, the USB Server window will appear.
-
Page 10: Driver Uninstallation
Once the connection is done click on 'Connect Device' next to the Search for both Display and Media. When the connection is done the Status will appear with “” mark. When disconnecting click on “Disconnect Device”. 6.4 Driver Uninstallation Follow the steps below to uninstall the USB server driver: Step 1: Open the Start menu and navigate to: Start MenuControl PanelAdd or Remove Programs. -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM Laptop Laptop Wireless Ethernet Wired Network Mini-USB Switch Cable Quad USB over Ethernet 4×USB Extender Connections Hard drive Mouse Keyboard... -
Page 12: Specifications
8. SPECIFICATIONS Input Ports 1×Ethernet (RJ-45), 1×Mini-USB Network Protocol TCP/IP Network Interface 10/100/1000 Mbps Output Ports 4×USB Computer System Windows, XP SP2, Vista 32bits Support & Window 7 ESD Protection Human Body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimensions 119 mm (W)×88 mm (D)×25 mm(H) Weight...
